CARBURETOR

GS500E 1997 (V) (E02 E04 E22 E24 E25 E34 E37)

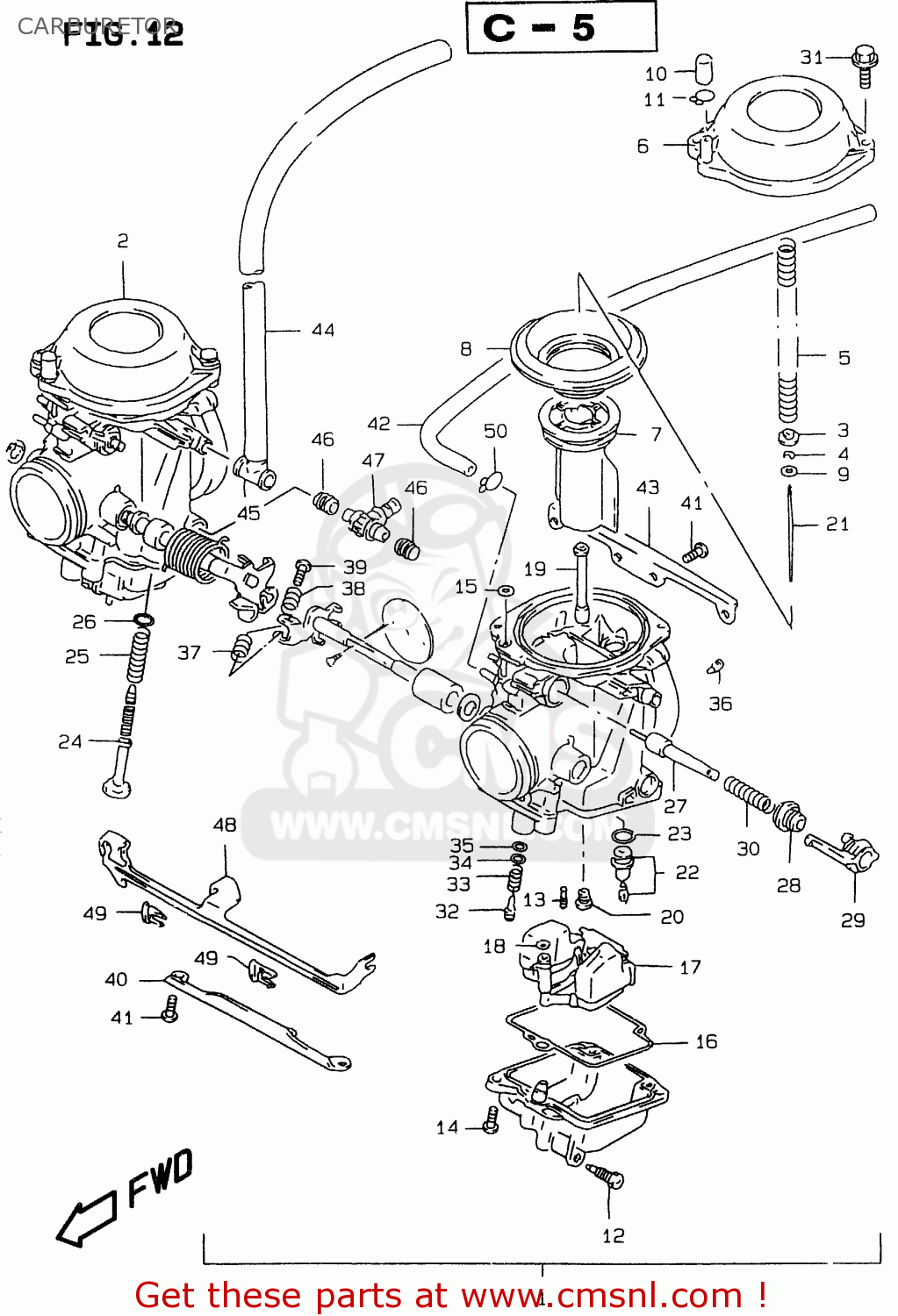

Carburetor diagram GS500E 1997 (V) (E02 E04 E22 E24 E25 E34 E37)

CARBURETOR GS500E 1997 (V) (E02 E04 E22 E24 E25 E34 E37)
CARBURETOR GS500E 1997 (V) (E02 E04 E22 E24 E25 E34 E37)
CARBURETOR GS500E 1997 (V) (E02 E04 E22 E24 E25 E34 E37)
prices are in EUR
ref
part #
description
quantity
1
1320102D80
ref: 1
CARBURETOR,LH
€ 502.00
1
1320102D10
ref: 1
E18
CARBURETOR ASSY, LH
€ 0.00
1
1320102DA0
ref: 1
GS500EV/EW/EX E22
CARBURETOR ASSY, LH
€ 0.00
1
1320102DB0
ref: 1
GS500EUV E4, GS500EU
CARBURETOR ASSY, LH
€ 410.50
1
1320102D60
ref: 1
E24
CARBURETOR ASSY, LH
€ 399.00
1
1320102D50
ref: 1
P9
CARBURETOR ASSY, LH
€ 433.50
1
1320102D70
ref: 1
P37
CARBURETOR ASSY, LH
€ 0.00
1
1320102D20
ref: 1
E39
CARBURETOR ASSY, LH
€ 0.00
2
1320202D80
ref: 2
->13202-02DA0
CARBURETOR ASSY, RH
€ 399.00
2
1320202D10
ref: 2
E18
CARBURETOR ASSY, RH
1320202D10
€ 360.50
2
1320202DA0
ref: 2
GS500EV/EW/EX E22
CARBURETOR ASSY, RH
€ 399.00
2
1320202DB0
ref: 2
GS500EUV E4, GS500EU
CARBURETOR ASSY, RH
€ 399.00
2
1320202D60
ref: 2
E24
CARBURATOR ASS
€ 437.50
2
1320202D50
ref: 2
P9, ->13202-02D60
CARBURETOR,RH.
€ 437.50
2
1320202D70
ref: 2
P37
CARBURETOR ASSY, RH
€ 0.00
2
1320202D20
ref: 2
E39
CARBURETOR ASSY, RH
€ 0.00
3
1338242A00
ref: 3
RING
1338242A00
€ 3.50
4
1339440D20
ref: 4
E RING
1339440D20
€ 4.50
5
1341706C00
ref: 5
SPRING
1341706C00
€ 8.00
5
1341742A00
ref: 5
E18,E24,E39,P9,P37,
SPRING
1341742A00
€ 6.00
6
1350201D00
ref: 6
COVER,DIAPHRAGM
1350201D00
€ 36.00
6
1350245B10
ref: 6
E18
COVER,DIAPHRAGM
1350245B10
€ 29.00
6
1350202D00
ref: 6
E39
COVER,DIAPHRAGM
€ 0.00
7
1350101D00
ref: 7
VALVE,PISTON
1350101D00
€ 69.00
7
1350102D10
ref: 7
GS500EUV E4, GS500EU
VALVE,PISTON
1350102D10
€ 51.50
8
1350717C01
ref: 8
DIAPHRAGM
1350717C01
€ 24.50
8
1350744B00
ref: 8
E18,E39
DIAPHRAGM
1350744B00
€ 29.00
9
1338747010
ref: 9
RING
1338747010
€ 7.50
10
1350817C00
ref: 10
CAP
1350817C00
€ 4.50
10
1350817C00
ref: 10
E18,E39,P9
CAP
1350817C00
€ 4.50
11
1367105A40
ref: 11
CLIP
1367105A40
€ 4.00
11
1367105A40
ref: 11
E18,E39,P9
CLIP
1367105A40
€ 4.00
12
1324713A00
ref: 12
SCREW,DRAIN
1324713A00
€ 5.50
13
0949240014
ref: 13
JET(40)
0949240014
€ 8.50
14
0211205127
ref: 14
SCREW
0211205127
€ 2.50
15
1350917C00
ref: 15
O RING
1350917C00
€ 4.50
16
1325844B00
ref: 16
GASKET,FLOAT CHAMBER (NAS)
1325844B00
€ 8.50
17
1324001D00
ref: 17
FLOAT ASSY
1324001D00
€ 48.50
18
1337446710
ref: 18
O RING
1337446710
€ 4.50
19
0949400748
ref: 19
JET,NEEDLE(O-2)
0949400748
€ 27.00
20
0949123011
ref: 20
JET,MAIN(115)
0949123011
€ 10.50
20
0949125010
ref: 20
E24,E39,P9,P37
JET,MAIN(125)
0949125010
€ 8.50
20
0949124013
ref: 20
E24,P9,P37
JET,MAIN(122.5)
0949124013
€ 7.00
20
0949123017
ref: 20
GS500EUV E4, GS500EU
JET,MAIN(117.5)
0949123017
€ 11.00
20
0949124016
ref: 20
E18
JET,MAIN(120)
0949124016
€ 11.50
20
0949123011
ref: 20
E18,E39
JET,MAIN(115)
0949123011
€ 10.50
21
1338301D10
ref: 21
NEEDLE,JET
1338301D10
€ 17.00
21
1338301D10
ref: 21
GS500EUV E4,E22
NEEDLE,JET
1338301D10
€ 17.00
22
1337044B00
ref: 22
->13370-02D00
VALVE ASSEMBLY,NEEDLE
1337044B00
€ 46.50
22
1337002D00
ref: 22
P37
VALVE ASSY,NEEDLE
1337002D00
€ 46.50
23
1337444080
ref: 23
O-RING,NEEDLE VALVE
1337444080
€ 6.00
24
1326714D10
ref: 24
RH
SCREW,ADJUSTER
1326714D10
€ 22.50
25
1337514D10
ref: 25
RH
SPRING
1337514D10
€ 6.50
26
1342738300
ref: 26
RH
WASHER
1342738300
€ 1.50
27
1341101D00
ref: 27
PLUNGER ASSY
1341101D00
€ 28.50
28
1341817C00
ref: 28
CAP,STARTER
1341817C00
€ 5.00
29
1341817C10
ref: 29
HOLDER,GUIDE
1341817C10
€ 14.00
30
1341709110
ref: 30
SPRING
1341709110
€ 6.00
31
0211275163
ref: 31
SCREW
0211275163
€ 2.50
32
1327947070
ref: 32
EXCEPT E18
SCREW,PILOT
1327947070
€ 11.50
32
1327947070
ref: 32
E24
SCREW,PILOT
1327947070
€ 11.50
32
1327947070
ref: 32
P37
SCREW,PILOT
1327947070
€ 11.50
32
1327947070
ref: 32
E39
SCREW,PILOT
1327947070
€ 11.50
33
1326847070
ref: 33
EXCEPT E18
SPRING
1326847070
€ 5.00
34
1329129900
ref: 34
EXCEPT E18
WASHER
1329129900
€ 2.00
35
1329529900
ref: 35
EXCEPT E18
O RING,PILOT AIR SCREW
1329529900
€ 4.00
36
0949326004
ref: 36
JET,AIR(1.3)
0949326004
€ 14.50
36
0949324007
ref: 36
E24,P37
JET,AIR(1.2)
0949324007
€ 13.50
36
0949328006
ref: 36
E18,E39, <-09493-280
JET,PILOT AIR,1.4
0949328006
€ 15.50
37
1326896110
ref: 37
SPRING,THROTTLE SCREW
€ 4.50
38
1327144B00
ref: 38
SPRING
1327144B00
€ 4.00
39
1326744B00
ref: 39
SCREW
1326744B00
€ 3.50
40
1362801D00
ref: 40
PLATE
€ 14.00
41
0211205127
ref: 41
SCREW
0211205127
€ 2.50
42
1368401D10
ref: 42
HOSE(5X9X350)
1368401D10
€ 21.00
43
1362801D10
ref: 43
PLATE
€ 0.00
44
0935470113600
ref: 44
L:600->400
HOSE(7X11X600)
0935470113600
€ 17.50
45
1368420C10
ref: 45
HOSE
1368420C10
€ 7.00
46
1367344B00
ref: 46
SEAL
1367344B00
€ 6.00
47
1368544B00
ref: 47
NIPPLE
1368544B00
€ 10.00
48
1341301D00
ref: 48
LEVER
€ 16.00
49
1343917C00
ref: 49
HOLDER
1343917C00
€ 12.00
50
0940108410
ref: 50
CLIP
€ 3.00
