FRAME (MODEL V/W)

GS500E 1997 (V) (E02 E04 E22 E24 E25 E34 E37)

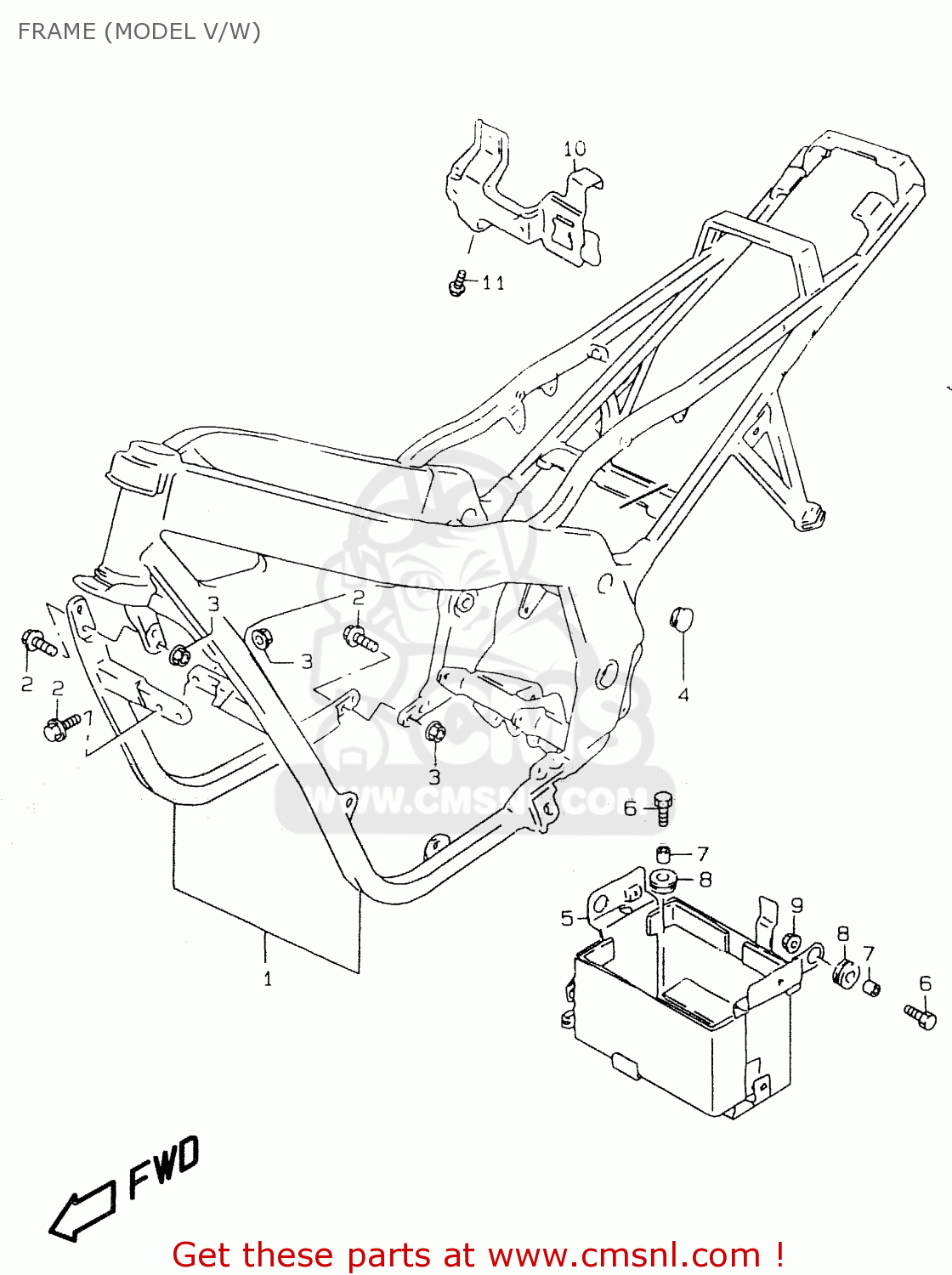

Frame (model v/w) diagram GS500E 1997 (V) (E02 E04 E22 E24 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

411020187113L
ref: 1
~F.NO.GM51A-141710,

FRAME SET

€ 1,349.50

411020185213L
ref: 1
F.NO.GM51A-141711~,

FRAME SET(SILVER)

€ 863.00

0155010357
ref: 2

BOLT

€ 3.50

0831931107
ref: 3

NUT

€ 3.00

4358501D00
ref: 4

CAP,BODY FRAME

€ 5.00

4154001D31
ref: 5

HOLDER,BATTERY

€ 77.50

4154001D40
ref: 5
MODEL W E4

HOLDER,BATTERY

€ 46.50

0911606167
ref: 6

BOLT(6X20)

€ 2.00

0918006038
ref: 7

SPACER(6.1X9X7.5)

€ 2.00

0932008021
ref: 8

CUSHION

€ 4.00

0831610063
ref: 9

NUT

€ 2.50

4741001D00
ref: 10

HOLDER,ELECTRIC PARTS

€ 14.00

0155006163
ref: 11

BOLT

€ 2.50
