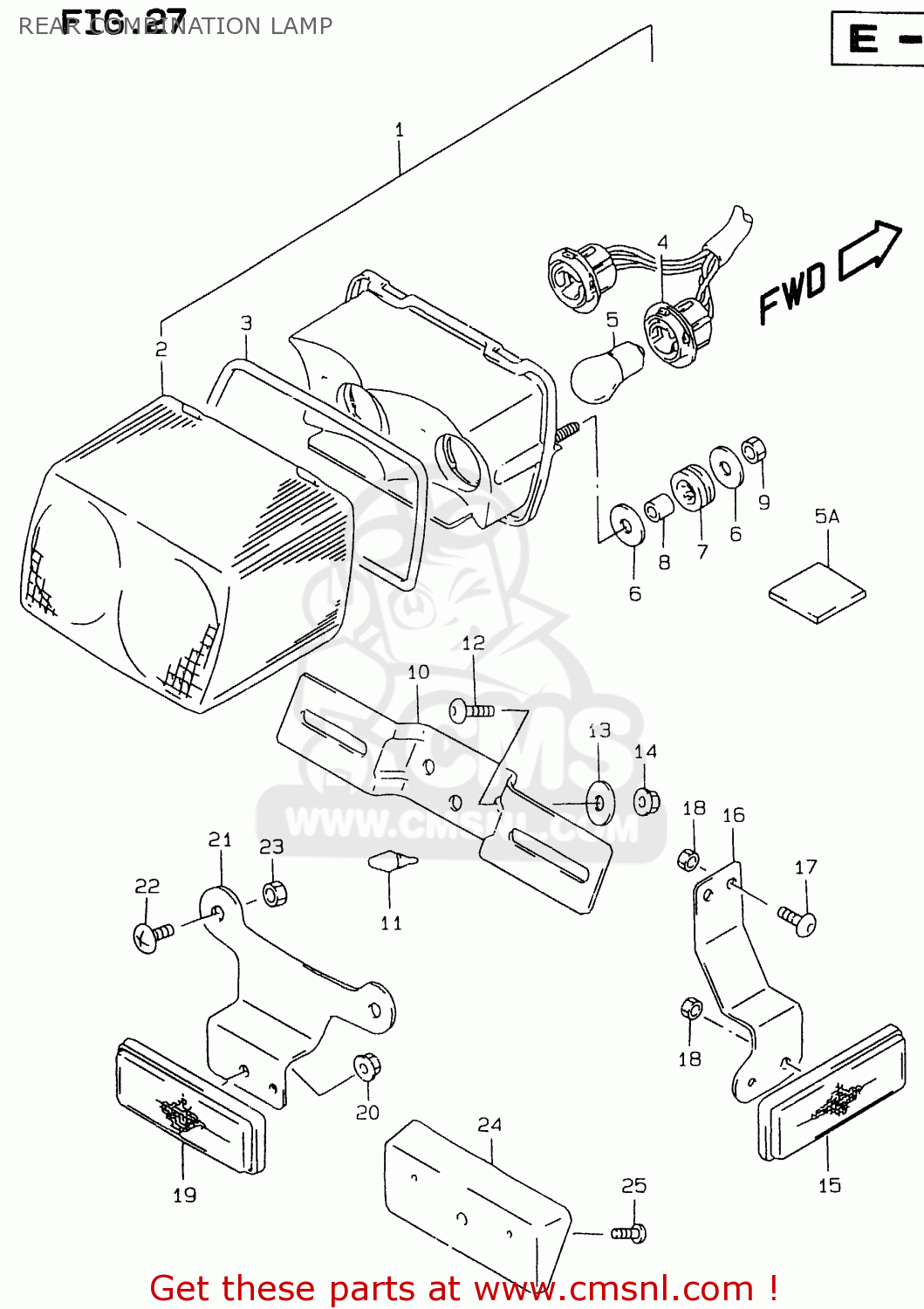

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571012D00
ref: 1

LAMP ASSY,RR COMBINATION

€ 134.50

2

3571201D00
ref: 2

LENS

€ 45.00

3

3571301D00
ref: 3

GASKET (NAS)

€ 7.00

4

3571812D00
ref: 4

SOCKET

€ 40.00

5

0947112083
ref: 5

BULB(12V21/5W)

€ 6.00

5A

3573310D00
ref: 5A

CUSHION,REAR LENS

€ 3.00

6

0916006077
ref: 6

WASHER(6.5X20X1.2)

€ 2.00

7

0932009009
ref: 7

CUSHION

€ 5.00

8

0918006262
ref: 8

SPACER(6.5X9X8.5)

€ 3.00

9

0831000063
ref: 9

NUT 6MM

€ 2.00

10

3592700A10
ref: 10

BRACKET,LICENSE PLATE

€ 6.00

11

0932106029
ref: 11

CUSHION

€ 3.00

12

0214206163
ref: 12

SCREW

€ 2.50

13

0916006077
ref: 13

WASHER(6.5X20X1.2)

€ 2.00

14

0831000063
ref: 14

NUT 6MM

€ 2.00

15

3595043431
ref: 15
E39

REFLEX REFLECTOR,FR SIDE

€ 12.00

16

3597701D11
ref: 16
E39

BRACKET,RR SIDE REFLECTOR

€ 5.50

17

0214205123
ref: 17
E39

SCREW 5X12

€ 1.50

18

0831000053
ref: 18
E39

NUT

€ 2.50

19

3597024D60
ref: 19

REFLECTOR ASSY,RR

€ 19.50

20

0831000053
ref: 20

NUT

€ 2.50

20

0831610053
ref: 20
E18,E22,E25,E39

NUT

€ 2.50

21

3597401D00
ref: 21

BRACKET,RR RR

€ 3.50

22

0214206123
ref: 22

SCREW 6X12

€ 2.00

23

0831000063
ref: 23

NUT 6MM

€ 2.00

24

3597712C00
ref: 24
E18,E22,E25,E39

SPACER,RR RR

€ 8.00

25

0354104123
ref: 25

SCREW

€ 1.50

all assemblies
