FUEL COCK

GS500E 1997 (V) (E02 E04 E22 E24 E25 E34 E37)

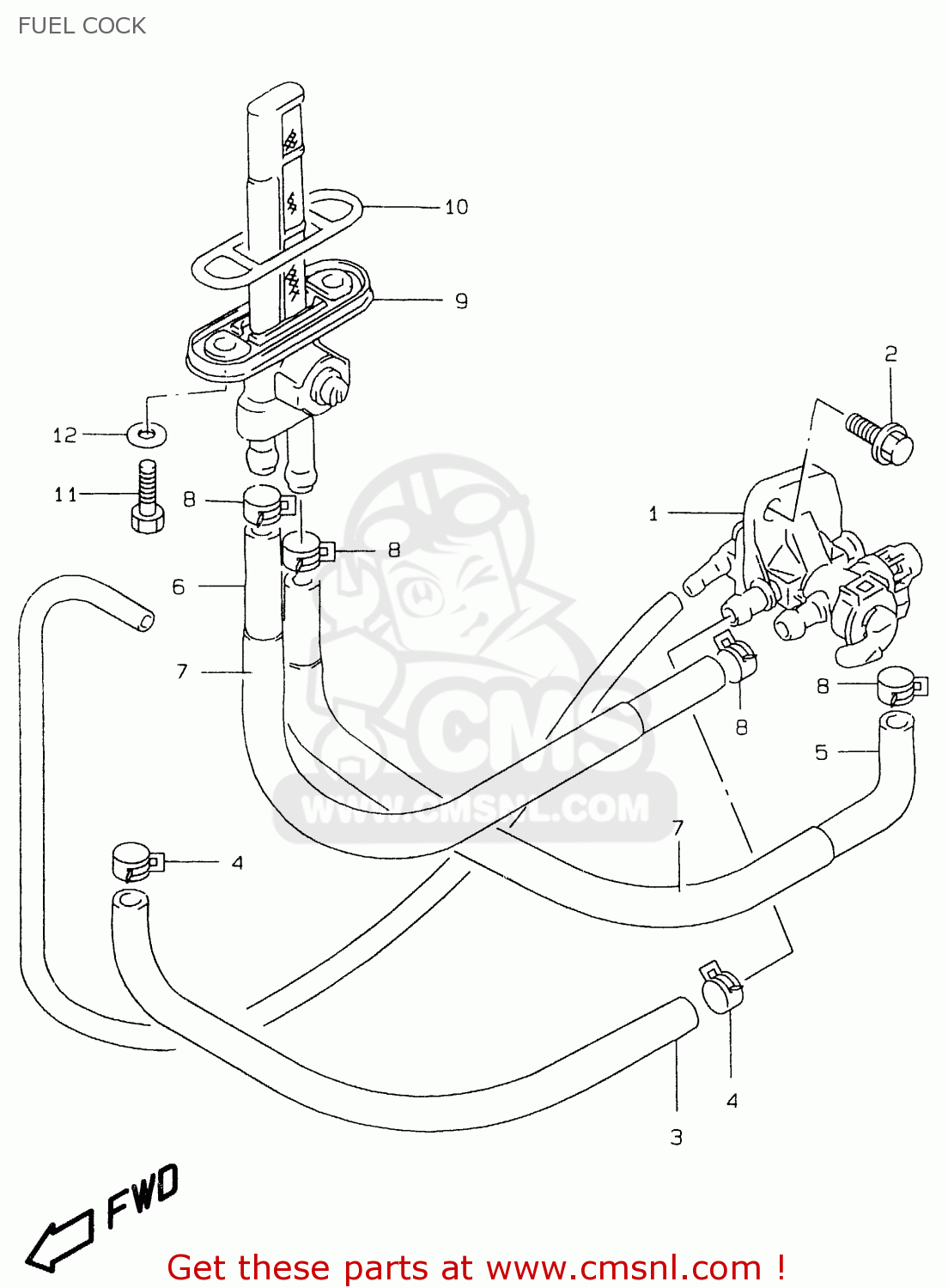

Fuel cock diagram GS500E 1997 (V) (E02 E04 E22 E24 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

4430001D21
ref: 1

COCK ASSY,FUEL

€ 109.50

0155006123
ref: 2

BOLT

€ 2.50

0934307525
ref: 3

HOSE

€ 17.50

0940111413
ref: 4

CLIP

€ 2.50

0934307532
ref: 5
MODEL V

HOSE

€ 17.50

0935470113600
ref: 5
MODEL W/X

HOSE(7X11X600)

€ 17.50

4444101D00
ref: 6

HOSE,FUEL RESERVE

€ 14.50

4446101D01
ref: 7

PROTECTOR,FUEL HOSE

€ 8.50

0940111413
ref: 8

CLIP

€ 2.50

4430001D10
ref: 9

COCK ASSY,FUEL NO.1

€ 129.50

4434828070
ref: 10

O RING,FUEL COCK

€ 4.50

0912806057
ref: 11

BOLT(6X20)

€ 2.00

0916806026
ref: 12

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

all assemblies
