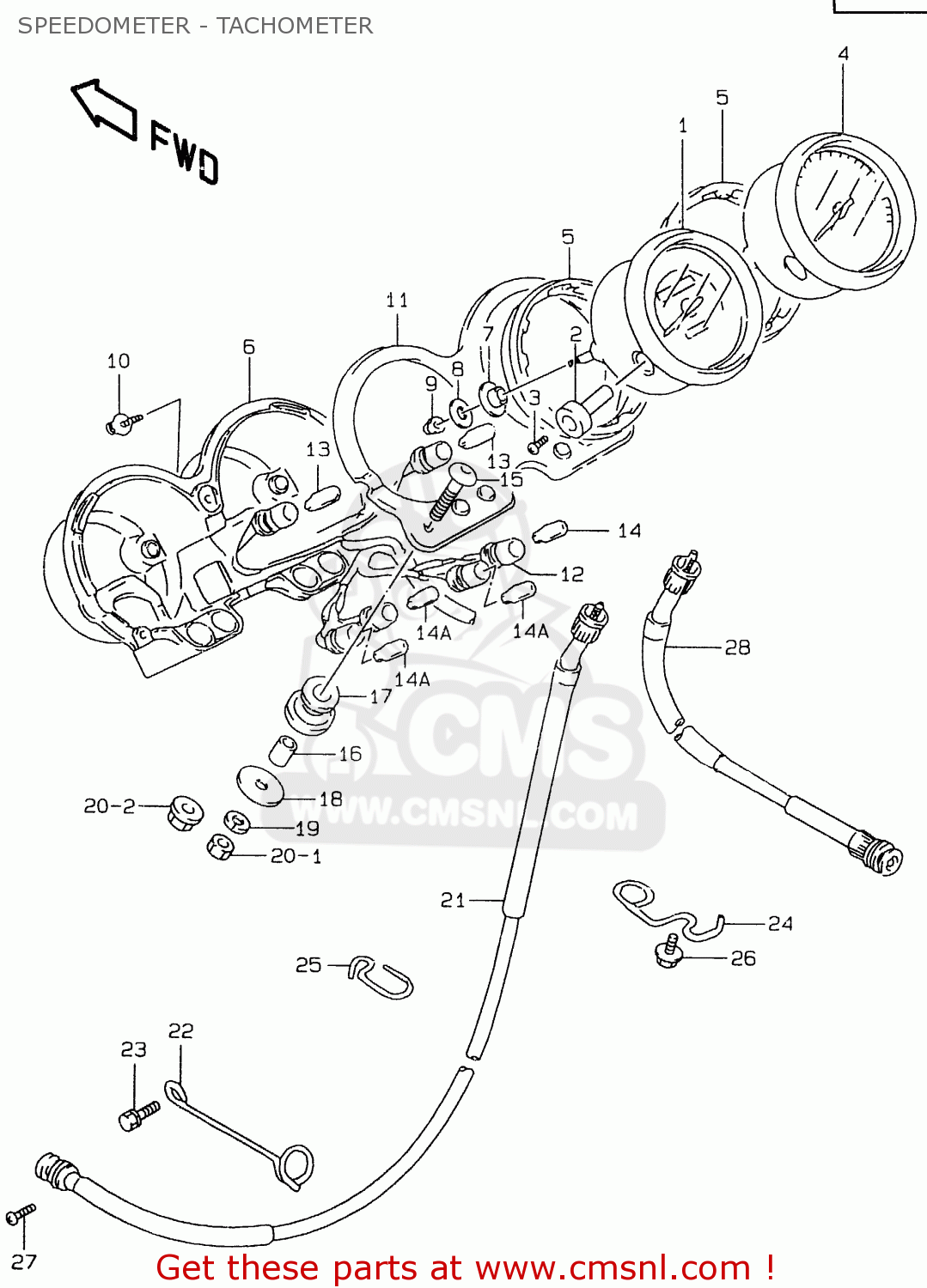

SPEEDOMETER - TACHOMETER - GS500E 1997 (V) (E02 E04 E22 E24 E25 E34 E37)

ref

part #

description

quantity

1

3411001D20
ref: 1

SPEEDOMETER(KILO) (E28)

€ 390.50

1

3411001D30
ref: 1
E2

SPEEDOMETER(MILE/KILO)

€ 317.00

2

3412430B00
ref: 2

KNOB,TRIP

€ 8.50

3

0913902003
ref: 3

SCREW(2X6)

€ 2.00

4

3421001D20
ref: 4

TACHOMETER

€ 302.50

5

3428801D20
ref: 5

DAMPER

€ 7.00

6

3419301D20
ref: 6

COVER

€ 76.50

7

3418901D20
ref: 7

CUSHION

€ 6.00

8

0916005037
ref: 8

WASHER(5.5X16X1.2)

€ 1.50

9

0831310057
ref: 9

NUT

€ 1.50

10

0211234083
ref: 10

SCREW

€ 2.00

11

3495001D20
ref: 11
MODEL V

BRACKET,METER

€ 148.50

11

3495001D21
ref: 11
MODEL W/X

BRACKET,METER

€ 148.50

11

3495001D30
ref: 11
E2

BRACKET,METER

€ 148.50

12

3417001D20
ref: 12

SOCKET

€ 56.50

13

0947112028
ref: 13
FOR ILLUMINATION

BULB(12V3.4W,T10)

€ 3.50

14

0947112165
ref: 14
FOR HIGH BEAM

BULB(12V1.7W,T10)

€ 1.00

14A

0947112082
ref: 14A
FOR OIL/NEUTRAL/TURN

BULB(12V3.4W,T10,BF175-01450A)

€ 3.50

15

0910706003
ref: 15

BOLT(6X30)

€ 3.50

16

0918006294
ref: 16

SPACER(6.5X10X15.7)

€ 4.00

17

3495631001
ref: 17

CUSHION,METER BRACKET

€ 4.50

18

0916006030
ref: 18
MODEL V

WASHER (6.5X29X1.6)

€ 2.50

18

0916006136
ref: 18
MODEL W/X

WASHER(6.5X28X1.6)

€ 2.50

19

0832101063
ref: 19

LOCK WASHER

€ 2.00

20

0831000063
ref: 20
MODEL V

NUT 6MM

€ 2.00

20

0831610063
ref: 20
MODEL W/X

NUT

€ 2.50

21

3491001D02
ref: 21

CABLE ASSY,SPEEDOMETER

€ 70.00

22

3493845100
ref: 22

CLAMP,SPEEDOMETER CABLE

€ 14.50

23

0155006163
ref: 23

BOLT

€ 2.50

24

3493801D01
ref: 24

GUIDE,SPEEDOMETER CABLE NO.2

€ 11.50

25

3493801D10
ref: 25

GUIDE,SPEEDOMETER CABLE NO.3

€ 11.50

26

0155006123
ref: 26

BOLT

€ 2.50

27

0211205163
ref: 27

SCREW

€ 2.00

28

3494001D02
ref: 28

CABLE ASSY,TACHOMETER

€ 45.00

SPEEDOMETER - TACHOMETER

all assemblies
