ELECTRICAL

GS500E 1997 (V) (E02 E04 E22 E24 E25 E34 E37)

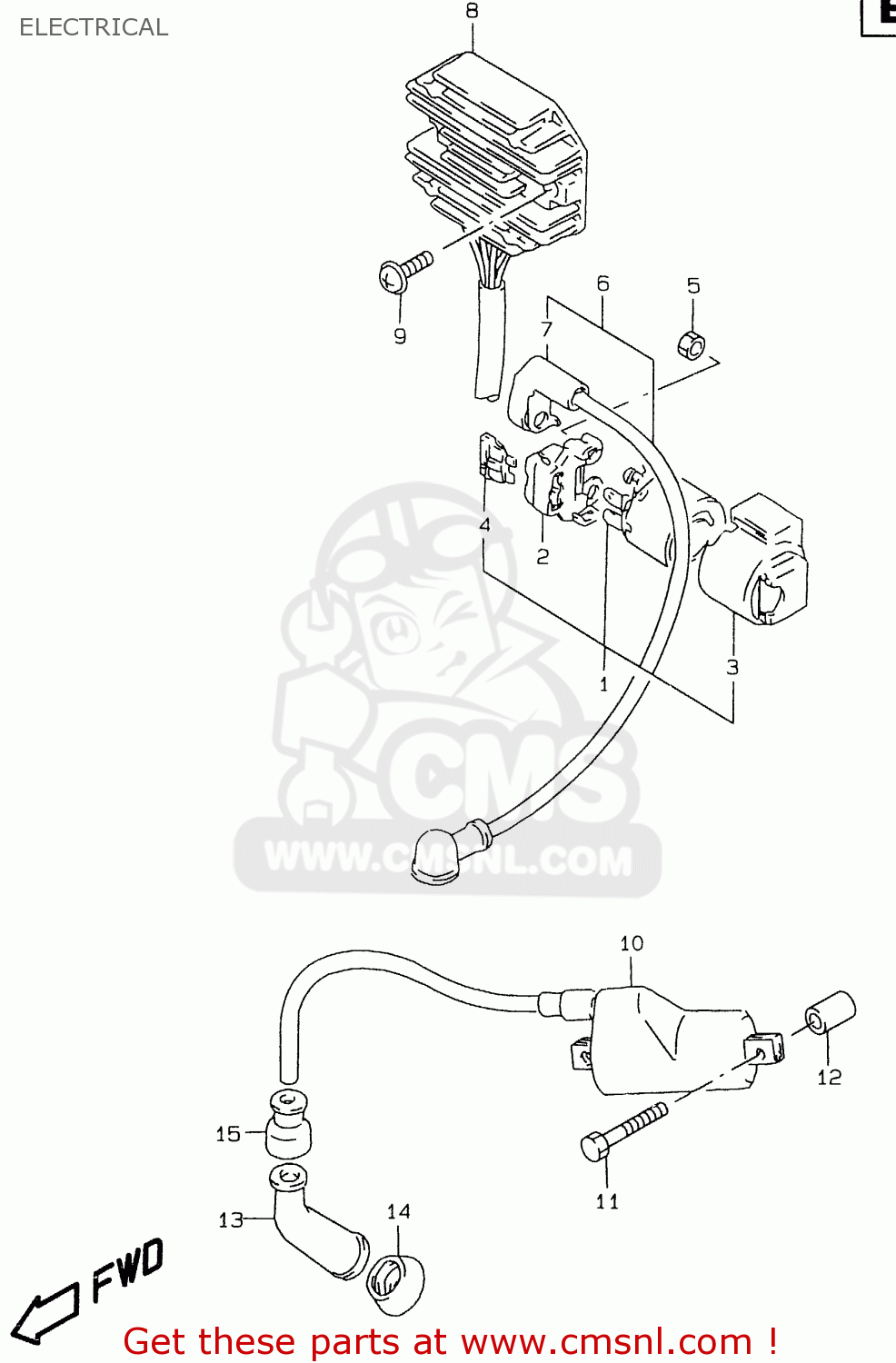

Electrical diagram GS500E 1997 (V) (E02 E04 E22 E24 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

3180001D00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 107.00

3184101D00
ref: 2

TERMINAL,RELAY

€ 25.00

3189207D00
ref: 3

BRACKET,STARTING MOTOR RELAY

€ 12.00

0948120101
ref: 4

FUSE(20A)

€ 2.00

0836135068
ref: 5

NUT

€ 2.00

3385001D10
ref: 6

WIRE,STARTER MOTOR LEAD

€ 29.50

3362401D10
ref: 7

CAP,STARTER RELAY TERMINAL

€ 8.50

3280033C00
ref: 8

RECTIFIER ASSEMBLY

€ 368.00

0214206203
ref: 9

SCREW

€ 2.00

3341001D00
ref: 10

COIL ASSY,IGNITION

€ 154.00

0150006403
ref: 11

BOLT

€ 2.00

0918006204
ref: 12
MODEL V

SPACER(6.2X12X18)

€ 6.50

0918006198
ref: 12
MODEL W/X

SPACER(6.2X12X16)

€ 3.50

3351022010
ref: 13

CAP ASSY,SPARK PLUG

€ 16.50

3354124510
ref: 14

SEAL,SPARK PLUG CAP

€ 7.00

3354238B00
ref: 15

SEAL,HIGH TENSION CORD

€ 4.50
