HANDLEBAR

GS500E 1997 (V) (E02 E04 E22 E24 E25 E34 E37)

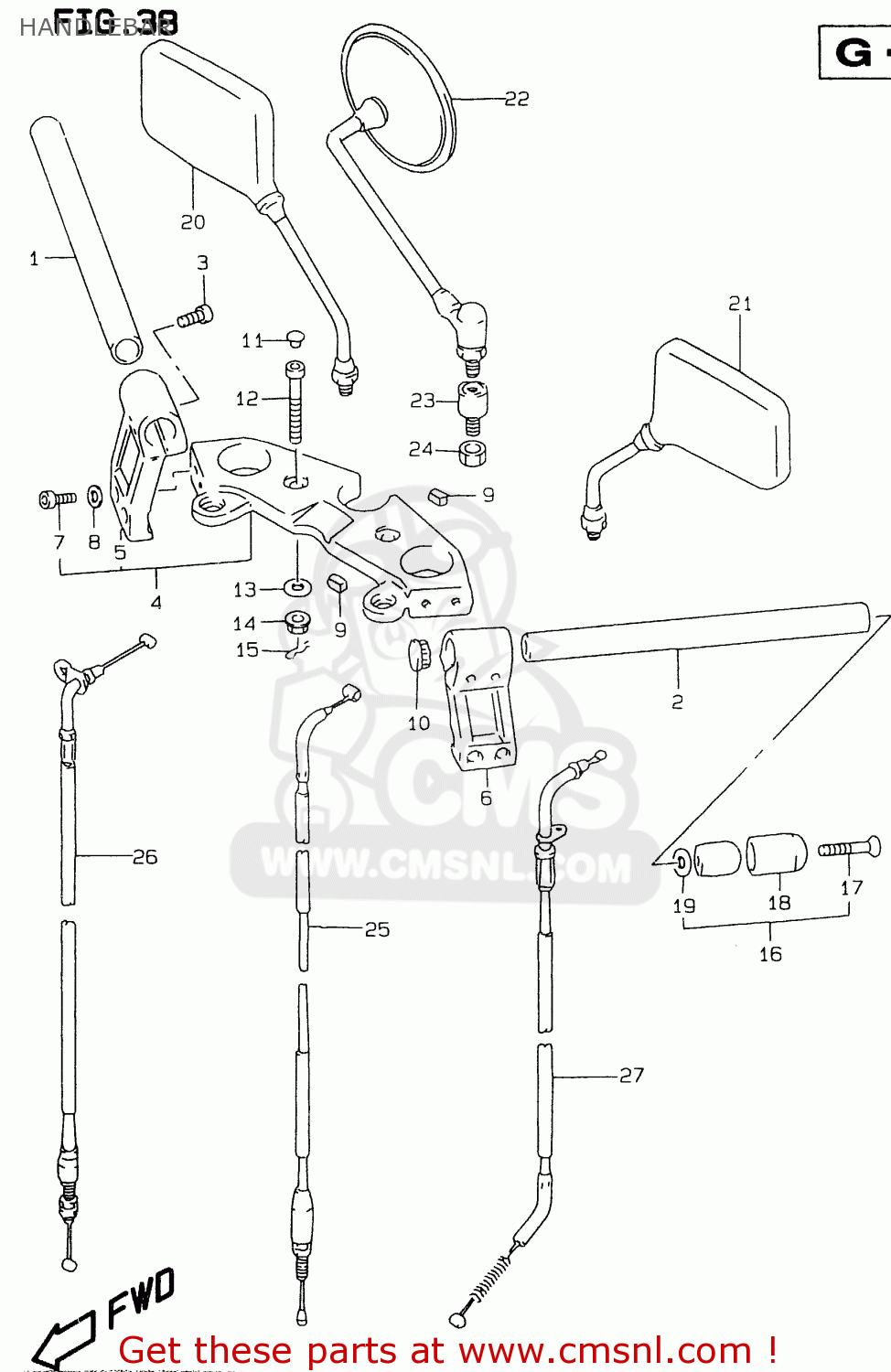

Handlebar diagram GS500E 1997 (V) (E02 E04 E22 E24 E25 E34 E37)

HANDLEBAR GS500E 1997 (V) (E02 E04 E22 E24 E25 E34 E37)
HANDLEBAR GS500E 1997 (V) (E02 E04 E22 E24 E25 E34 E37)
HANDLEBAR GS500E 1997 (V) (E02 E04 E22 E24 E25 E34 E37)
prices are in EUR
ref
part #
description
quantity
1
5611001D10
ref: 1
HANDLEBAR,R
5611001D10
€ 45.50
2
5615001D10
ref: 2
HANDLEBAR,L
5615001D10
€ 47.50
3
0713006253
ref: 3
BOLT,CL.COVER
0713006253
€ 3.00
4
5620001D810FP
ref: 4
HOLDER ASSY,HANDLEBAR
5620001D810FP
€ 410.50
5
5621101D800FP
ref: 5
HOLDER,HANDLEBAR,R(SILVER)
5621101D800FP
€ 83.50
6
5622101D800FP
ref: 6
HOLDER,HANDLEBAR,L(SILVER)
5622101D800FP
€ 118.00
7
0713008253
ref: 7
BOLT
0713008253
€ 3.50
8
0916408015
ref: 8
WASHER
0916408015
€ 3.00
9
5624101D00
ref: 9
CUSHION,HANDLE HOLDER
5624101D00
€ 5.50
10
5721533400
ref: 10
CAP,HANDLEBAR
5721533400
€ 4.00
11
0925006011
ref: 11
MODEL V/W
CAP(OD:11)
0925006011
€ 2.50
11
0925006009
ref: 11
MODEL X
CAP(OD:14.5)
0925006009
€ 3.50
12
0910610055
ref: 12
BOLT(10X66)
0910610055
€ 8.00
13
0916010094
ref: 13
WASHER(10.5X30X3.2)
0916010094
€ 3.50
14
0831931107
ref: 14
NUT
0831931107
€ 3.00
15
0411120208
ref: 15
PIN 20X20
0411120208
€ 1.50
16
5620001831
ref: 16
BALANCER SET,HANDLEBAR
5620001831
€ 55.00
17
0212206603
ref: 17
SCREW
0212206603
€ 3.00
18
5627449310
ref: 18
CAP,HANDLE BALANCER
5627449310
€ 141.00
19
5627534401
ref: 19
SPACER,BALANCER
5627534401
€ 2.50
20
5650001D01
ref: 20
E18,E25,E39
MIRROR ASSEMBLY,REAR VIEW
5650001D01
€ 113.00
20
5650001D11
ref: 20
E22,E24
MIRROR ASSY,RE
€ 56.00
21
5660001D01
ref: 21
E18,E25,E39
MIRROR ASSEMBLY,REAR VIEW
5660001D01
€ 113.00
21
5660001D11
ref: 21
E22,E24
MIRROR ASSY,LH
5660001D11
€ 56.00
22
5650008010
ref: 22
MIRROR ASSY,RH
5650008010
€ 119.50
23
5670031001
ref: 23
CUSHION,REAR VIEW MIRROR
5670031001
€ 18.00
24
0831000107
ref: 24
NUT
0831000107
€ 2.50
25
5820001D11
ref: 25
CABLE ASSY,CLUTCH
5820001D11
€ 33.00
26
5830001D10
ref: 26
CABLE ASSY,THROTTLE
5830001D10
€ 36.00
26
5830001D70
ref: 26
MODEL W/X E4
CABLE ASSY,THROTTLE
€ 40.00
27
5841001D10
ref: 27
MODEL V/W
CABLE COMP,STARTER
€ 30.50
27
5841001D11
ref: 27
MODEL X
CABLE,STARTER
5841001D11
€ 30.50
