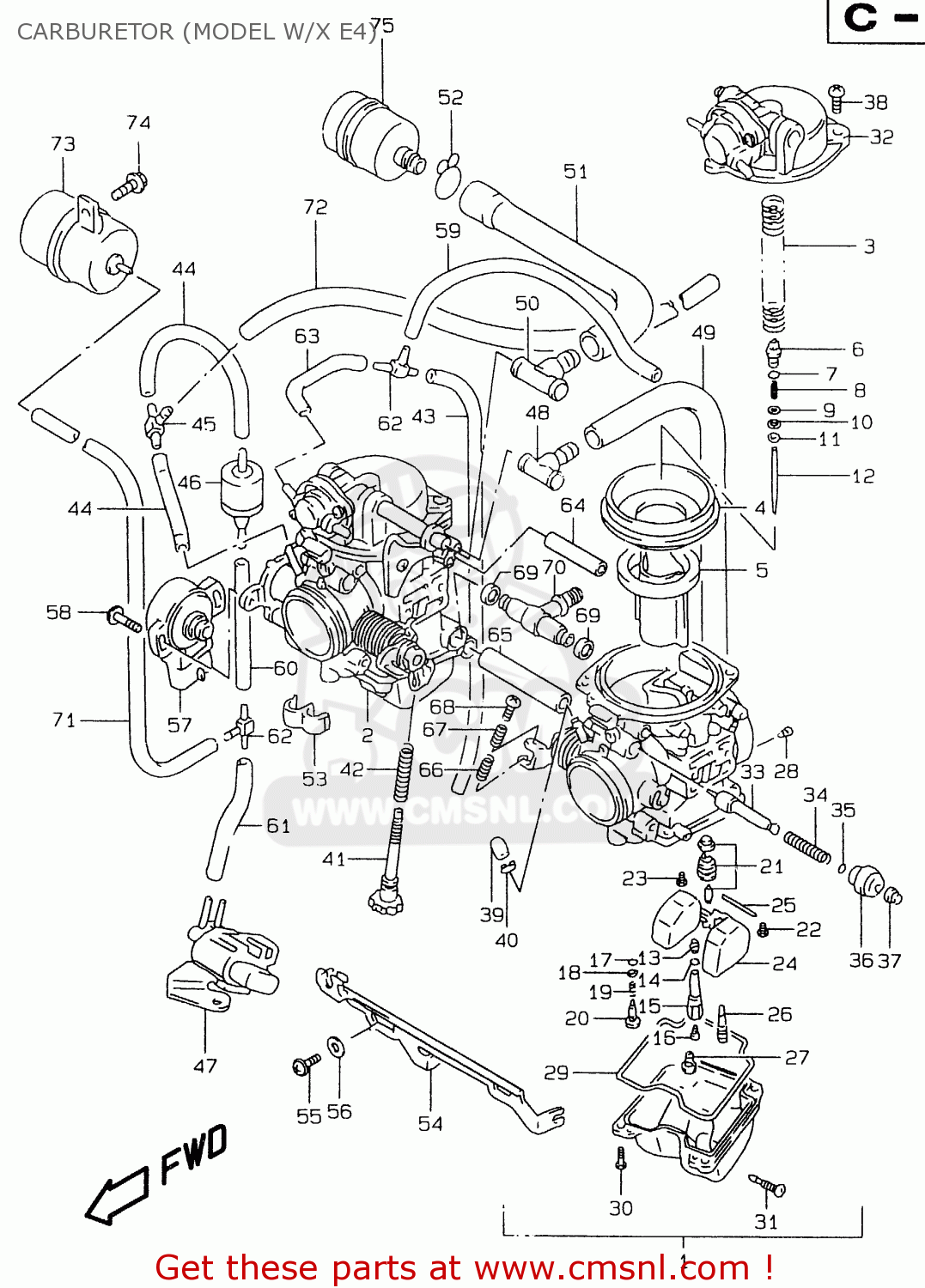

CARBURETOR (MODEL W/X E4)

ref

part #

description

quantity

1

1320101DB0
ref: 1
GS500EW/EX

CARBURETOR ASSY, LH

€ 0.00

1

1320101DC0
ref: 1
GS500EUW/EUX

CARBURETOR ASSY, LH

€ 0.00

2

1320201DB0
ref: 2
GS500EW/EX

CARBURETOR ASSY, RH

€ 0.00

2

1320201DC0
ref: 2
GS500EUW/EUX

CARBURETOR ASSY, RH

€ 0.00

3

1357301DB0
ref: 3

SPRING

€ 11.50

4

1350717C01
ref: 4

DIAPHRAGM

€ 24.50

5

1350134E00
ref: 5
GS500EW/EX

VALVE,PISTON

€ 87.50

5

1350101DC0
ref: 5
GS500EUW/EUX

VALVE,PISTON

€ 0.00

6

1341833E00
ref: 6

HOLDER

€ 4.50

7

0928005004
ref: 7

O RING(D:1.9,ID:4.8)

€ 2.00

8

1348133E00
ref: 8

SPRING

€ 3.00

9

1338244030
ref: 9

WASHER

€ 3.50

10

1339417E60
ref: 10

E RING,MULTIPLE JET NOZZLE

€ 1.50

11

1338733E00
ref: 11

RING

€ 5.00

12

1338301DB0
ref: 12

NEEDLE,JET

€ 13.50

13

0949400912
ref: 13

JET,NEEDLE(P-5)

€ 24.50

14

1324643010
ref: 14

O RING

€ 4.00

15

1338507F00
ref: 15

HOLDER,JET

€ 29.00

16

0949126016
ref: 16

JET,MAIN(130)

€ 16.50

17

1329529900
ref: 17

O RING,PILOT AIR SCREW

€ 4.00

18

1329129900
ref: 18

WASHER

€ 2.00

19

1326848700
ref: 19

SPRING,THROTTLE SCREW

€ 3.50

20

1327933E00
ref: 20

ADJUSTER

€ 9.50

21

1337033E80
ref: 21

VALVE ASSY,NEEDLE(NI)

€ 61.00

22

0211204083
ref: 22

SCREW

€ 2.00

23

1360205A10
ref: 23

SCREW

€ 4.00

24

1325004F00
ref: 24

FLOAT ASSY

€ 27.50

25

1325401010
ref: 25

PIN,FLOAT

€ 3.00

26

0949217016
ref: 26

JET,PILOT(17.5)

€ 15.50

27

0949160010
ref: 27

JET,MAIN(60)

€ 16.00

28

0949334003
ref: 28

JET,PILOT AIR(170)

€ 10.50

29

1325804F00
ref: 29

GASKET (NAS)

€ 9.00

30

0211204107
ref: 30

SCREW

€ 2.00

31

1324707F00
ref: 31

PLUG, DRAIN

€ 5.50

32

1350201DB0
ref: 32

COVER ASSY,DIAPHRAGM,L

€ 111.50

32

1350201DC0
ref: 32

COVER ASSY,DIAPHRAGM,R

€ 111.50

33

1341105300
ref: 33

PLUNGER

€ 23.50

34

1341726D00
ref: 34

SPRING

€ 5.50

35

1327847090
ref: 35

O RING

€ 2.00

36

1341844080
ref: 36

GUIDE SCREW,PLUNGER

€ 8.00

37

1368231210
ref: 37

CAP,STARTER VALVE

€ 5.00

38

0211205127
ref: 38

SCREW

€ 2.50

39

1327484000
ref: 39

CAP

€ 5.50

40

0940106101
ref: 40

CLIP

€ 2.50

41

1326704F00
ref: 41

ADJUSTER

€ 13.50

42

1327133C00
ref: 42

SPRING

€ 4.50

43

0935535755600
ref: 43
L:600->175

HOSE(3.5X7.5X600)

€ 10.00

44

1368333E50
ref: 44

HOSE

€ 11.00

45

1368504F10
ref: 45

NIPPLE

€ 6.50

46

9556978040
ref: 46

VALVE,CHECK

€ 24.00

47

1811570G10
ref: 47

VALVE ASSY,3WAY SOLENOID

€ 73.50

48

1368301DB0
ref: 48

HOSE

€ 15.00

49

1368306C00
ref: 49

HOSE

€ 22.00

50

1368346D10
ref: 50

3 WAY

€ 10.50

51

1368301DC1
ref: 51

HOSE

€ 18.00

52

0940116401
ref: 52

CLIP

€ 3.00

53

0940800033
ref: 53

CLAMP

€ 2.50

54

1341301DB0
ref: 54

LEVER

€ 0.00

55

0214204083
ref: 55

SCREW

€ 1.50

56

1355733E00
ref: 56

PACKING

€ 3.00

57

1355013D60
ref: 57

SENSOR ASSY,THROTTLE

€ 129.50

58

1360255A00
ref: 58

SCREW, SENSOR

€ 3.00

59

0935535755600
ref: 59
L:600->165

HOSE(3.5X7.5X600)

€ 10.00

60

0935535755600
ref: 60
L:600->40

HOSE(3.5X7.5X600)

€ 10.00

61

0935535755600
ref: 61
L:600->35

HOSE(3.5X7.5X600)

€ 10.00

62

0936704007
ref: 62

3 WAY

€ 3.50

63

0935535755600
ref: 63
L:600->55

HOSE(3.5X7.5X600)

€ 10.00

64

1368501DC0
ref: 64

ROD

€ 12.50

65

1368501DB0
ref: 65

PIPE

€ 11.00

66

1326896110
ref: 66

SPRING,THROTTLE SCREW

€ 4.50

67

1327144B00
ref: 67

SPRING

€ 4.00

68

1326744B00
ref: 68

SCREW

€ 3.50

69

1367344B00
ref: 69

SEAL

€ 6.00

70

1368533EQ0
ref: 70

NIPPLE

€ 22.50

71

0935535755600
ref: 71
L:600->360

HOSE(3.5X7.5X600)

€ 10.00

72

0935550105600
ref: 72
L:600->480

HOSE(5X10X600)

€ 7.50

73

1371504F00
ref: 73

CHAMBER,VACUUM

€ 20.00

74

0155006203
ref: 74

BOLT

€ 2.50

75

1878032E00
ref: 75

FILTER,2ND AIR CLEANER

€ 21.00
