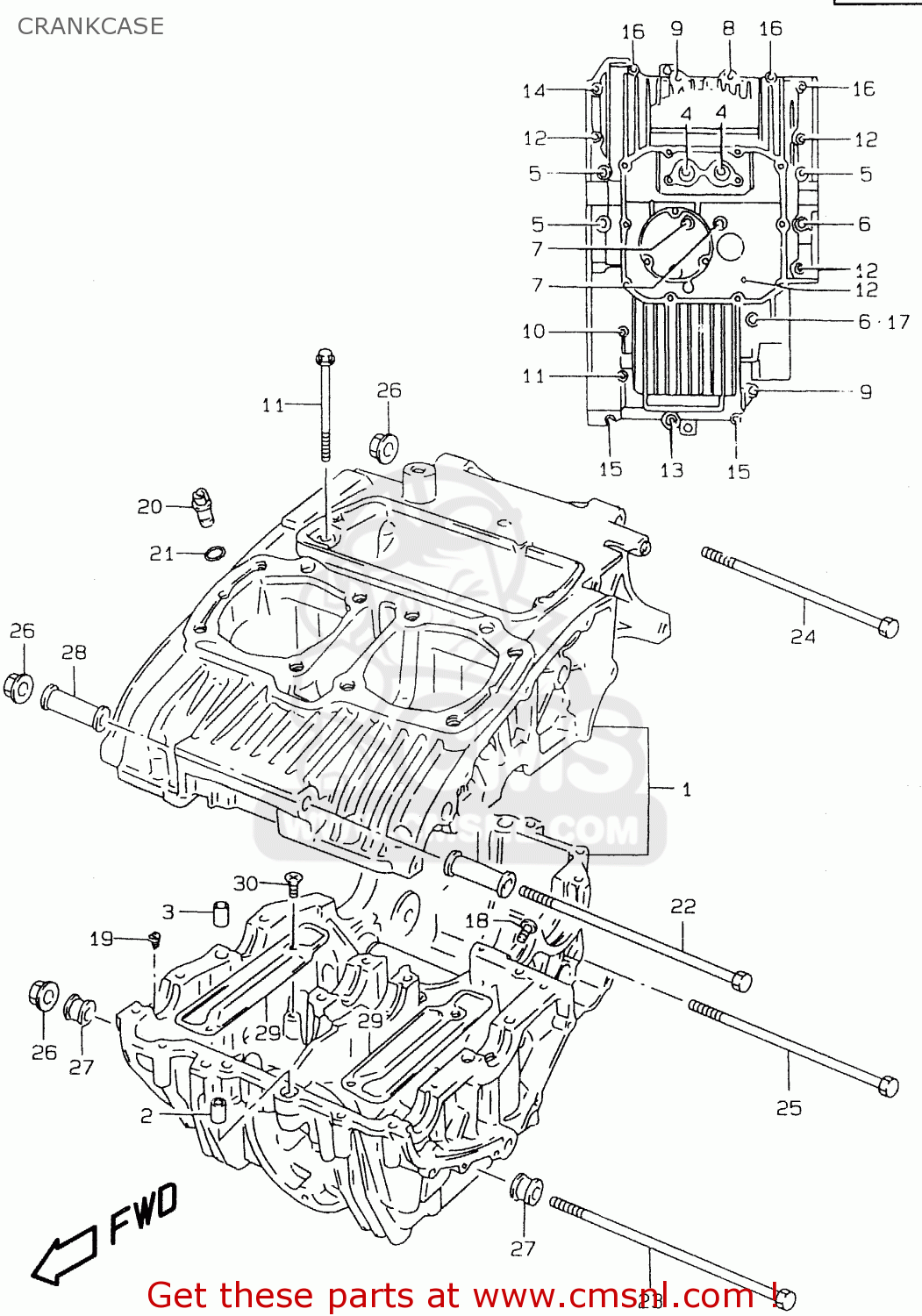

CRANKCASE

ref

part #

description

quantity

1

1130144890
ref: 1

CRANKCASE SET

€ 1,587.50

2

0920613004
ref: 2

PIN(10.4X13X22)

€ 3.00

3

0920611017
ref: 3

PIN(8.4X11X20)

€ 6.50

4

0713008703
ref: 4

BOLT

€ 4.00

5

0910308182
ref: 5

BOLT(8X125)

€ 4.50

6

0910308134
ref: 6

BOLT(8X110)

€ 3.00

7

0910308230
ref: 7

BOLT(8X100)

€ 3.00

8

0155008653
ref: 8

BOLT

€ 3.00

9

0155008453
ref: 9

BOLT

€ 3.00

10

0910306033
ref: 10

BOLT(6X125)

€ 3.50

11

0910306067
ref: 11

BOLT(6X105)

€ 3.50

12

0155006903
ref: 12

BOLT (6X90)

€ 3.50

13

0155006703
ref: 13

BOLT

€ 2.50

14

0155006653
ref: 14

BOLT

€ 2.50

15

0155006507
ref: 15

BOLT

€ 2.00

16

0155006453
ref: 16

BOLT (6X45)

€ 2.50

17

0916808008
ref: 17

GASKET 8.2X14X1 (NAS)

€ 1.00

18

0949322010
ref: 18

JET,AIR

€ 12.00

19

0949332002
ref: 19

JET

€ 11.50

20

0949324008
ref: 20

JET

€ 16.00

21

0928003003
ref: 21

O RING(D:1.05,ID:3.1)

€ 2.50

22

0910310137
ref: 22

BOLT(10X255)

€ 10.00

23

0910310212
ref: 23

BOLT(10X240)

€ 15.50

24

0910310127
ref: 24

BOLT(10X170)

€ 16.00

25

0910310278
ref: 25

BOLT(10X160)

€ 9.50

26

0915910078
ref: 26

NUT

€ 4.50

27

1161101D10
ref: 27

SPACER,ENG MTG(L:16.8)

€ 8.00

28

1161045410
ref: 28

SPACER,ENGINE MOUNT(L:65)

€ 11.50

29

1152144100
ref: 29

PLATE,OIL SEPARATOR

€ 3.00

30

0211206123
ref: 30

SCREW

€ 1.50
