CAM SHAFT - VALVE
GS550 1981 (X) GENERAL EXPORT (E01)

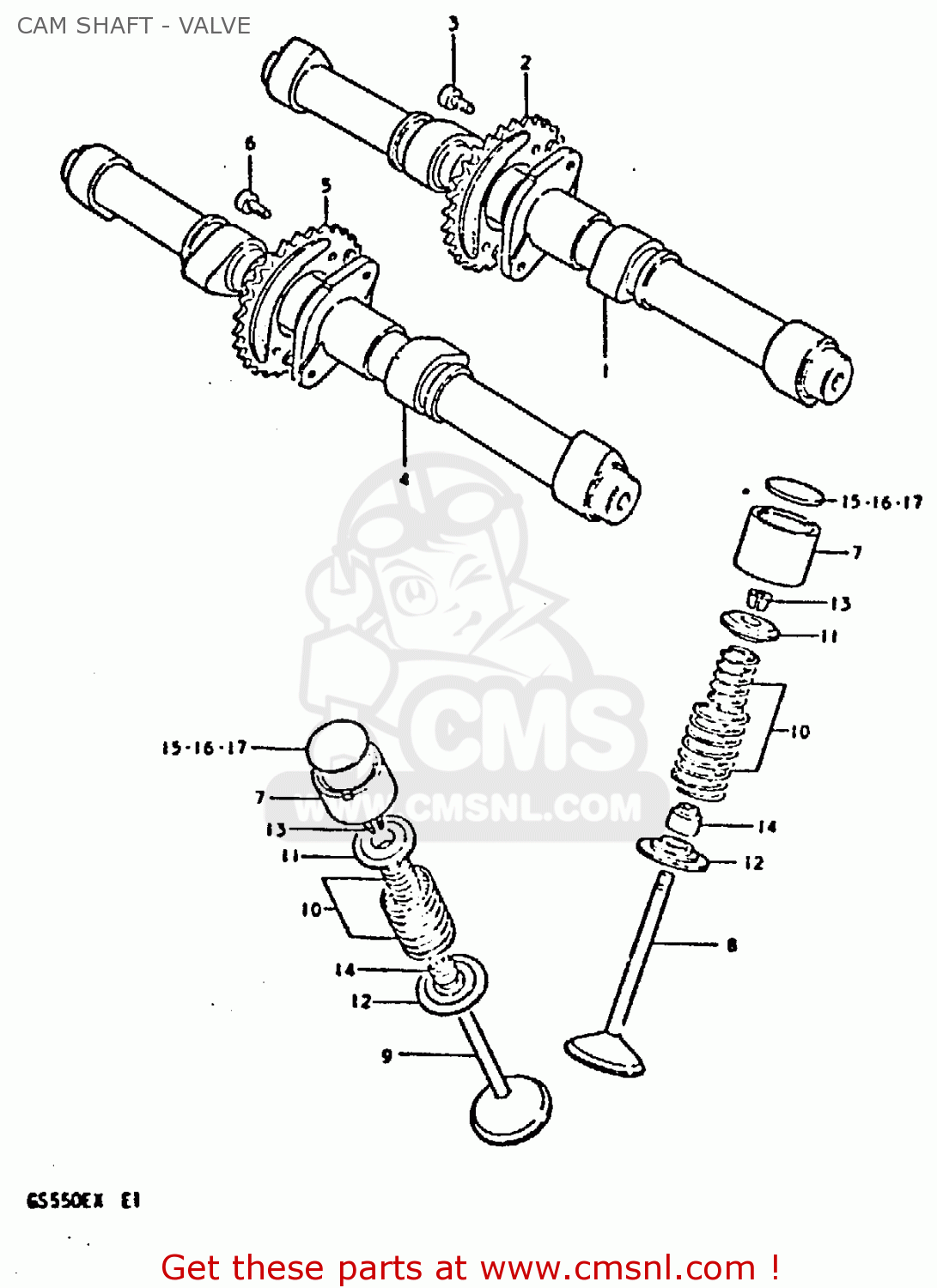

Cam shaft - valve diagram GS550 1981 (X) GENERAL EXPORT (E01)
CAM SHAFT - VALVE GS550 1981 (X) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1271147000
ref: 1
CAMSHAFT
€ 173.50
2
1274147001
ref: 2
SPROCKET,CAMSHAFT
€ 27.00
3
0910606024
ref: 3
BOLT 6X11
€ 2.50
4
1272147010
ref: 4
CAMSHAFT,EXHAUST
€ 182.00
5
1275147010
ref: 5
SPROCKET,EXHAUST CAMSHAFT
€ 0.00
6
0910606024
ref: 6
BOLT 6X11
€ 2.50
7
1289145000
ref: 7
TAPPET
€ 45.00
8
1291147011
ref: 8
VALVE,INTAKE
€ 28.00
9
1291247011
ref: 9
VALVE,EXHAUST
€ 42.50
10
1290045810
ref: 10
SPRING SET,VALVE
€ 17.00
11
1293145000
ref: 11
RETAINER,VALVE SPRING
€ 6.00
12
1293345001
ref: 12
SEAT,VALVE SPRING
€ 5.50
13
1293245010
ref: 13
COTTER VALVE
€ 2.50
14
0928907002
ref: 14
SEAL,OIL(7X14.4X9)
€ 3.00
15-1
1289245000
ref: 15-1
SHIM,TAPPET
€ 17.00
15-2
1289245001
ref: 15-2
SHIM,TAPPET
€ 16.50
15-3
1289245002
ref: 15-3
SHIM,TAPPET
€ 17.00
15-4
1289245003
ref: 15-4
SHIM,TAPPET
€ 16.00
15-5
1289245004
ref: 15-5
SHIM,TAPPET
€ 16.50
15-6
1289245005
ref: 15-6
SHIM,TAPPET
€ 17.00
15-7
1289245006
ref: 15-7
SHIM,TAPPET
€ 17.00
15-8
1289245007
ref: 15-8
SHIM,TAPPET
€ 16.00
15-9
1289245008
ref: 15-9
SHIM,TAPPET
€ 16.50
16-1
1289245009
ref: 16-1
SHIM,TAPPET
€ 16.00
16-2
1289245010
ref: 16-2
SHIM,TAPPET
€ 17.00
16-3
1289245011
ref: 16-3
SHIM,TAPPET
€ 17.00
16-4
1289245012
ref: 16-4
SHIM,TAPPET
€ 17.00
16-5
1289245013
ref: 16-5
SHIM,TAPPET
€ 16.50
16-6
1289245014
ref: 16-6
SHIM,TAPPET
€ 17.00
16-7
1289245015
ref: 16-7
SHIM,TAPPET
€ 17.00
16-8
1289245016
ref: 16-8
SHIM,TAPPET
€ 17.00
16-9
1289245017
ref: 16-9
SHIM,TAPPET
€ 17.00
17-1
1289245018
ref: 17-1
SHIM,TAPPET
€ 16.50
17-2
1289245019
ref: 17-2
SHIM,TAPPET
€ 17.00
18
1280045810
ref: 18
NOT SHOWN
SHIM SET,TAPPET
€ 1,227.00
19
9900069480
ref: 19
NOT SHOWN
CASE
€ 152.50
