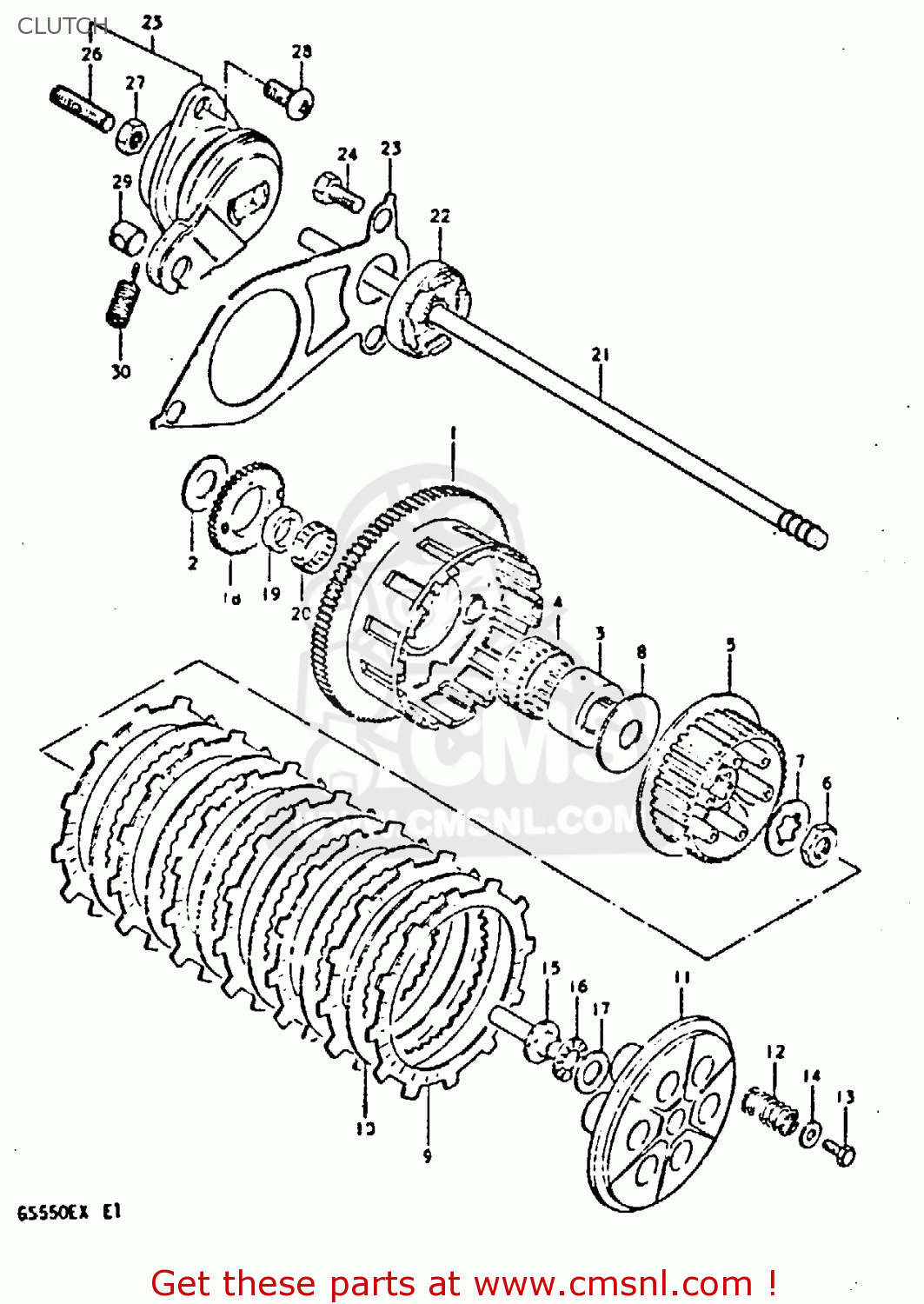

CLUTCH

ref

part #

description

quantity

1

2120047010
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE NT:87

€ 244.50

2

0916025023
ref: 2

WASHER

€ 9.50

3

2125145001
ref: 3

SPACER,PRIMARY DRIVEN

€ 65.50

4

0926351001
ref: 4

BEARING

€ 37.00

5

2141147000
ref: 5

HUB,CLUTCH SLEEVE

€ 80.50

6

0914024004
ref: 6

NUT

€ 4.50

7

0916725007
ref: 7

WASHER,LOCK

€ 7.50

8

0916025022
ref: 8

WASHER(25X66X3.5)

€ 13.50

9

2144145000
ref: 9

PLATE,CLUTCH DRIVE (NAS)

€ 20.00

10

2145145000
ref: 10

PLATE,CLUTCH DRIVEN (NAS)

€ 10.50

11

2146216500
ref: 11

DISC,CLUTCH PRESSURE

€ 51.00

12

0944019004
ref: 12

SPRING

€ 3.00

13

0110706168
ref: 13

BOLT, UPPER

€ 3.00

14

0916006020
ref: 14

WASHER

€ 2.00

15

2312144100
ref: 15

PIECE,CLUTCH PUSH

€ 21.50

16

0926315003
ref: 16

BEARING(15X28X2)

€ 7.00

17

0916015015
ref: 17

WASHER

€ 4.00

18

1632145002
ref: 18

GEAR,ENG OIL PUMP DRIVE(NT:38)

€ 151.00

19

1632545001
ref: 19

SPACER,OIL PUMP DRIVE GEAR

€ 13.50

20

0926336002
ref: 20

BEARING(36X40X10)

€ 24.50

21

2310044101
ref: 21

ROD,CLUTCH PUSH

€ 18.50

22

0928306001
ref: 22

OIL SEAL

€ 9.50

23

2311747000
ref: 23

PLATE,CLUTCH PUSH ROD

€ 18.00

24

0110706128
ref: 24

BOLT

€ 2.00

25

2320030001
ref: 25

SCREW ASSEMBLY,CLUTCH RELEASE

€ 80.50

26

0913406001
ref: 26

SCREW

€ 3.00

27

0831022068
ref: 27

NUT 6MM

€ 2.50

28

0211206128
ref: 28

SCREW 6X12

€ 2.00

29

2322207000
ref: 29

PIECE,RELEASE ARM END

€ 5.00

30

0944308001
ref: 30

SPRING

€ 3.00
