CHAIN CASE - SHOCK ABSORBER

GS550 1981 (X) GENERAL EXPORT (E01)

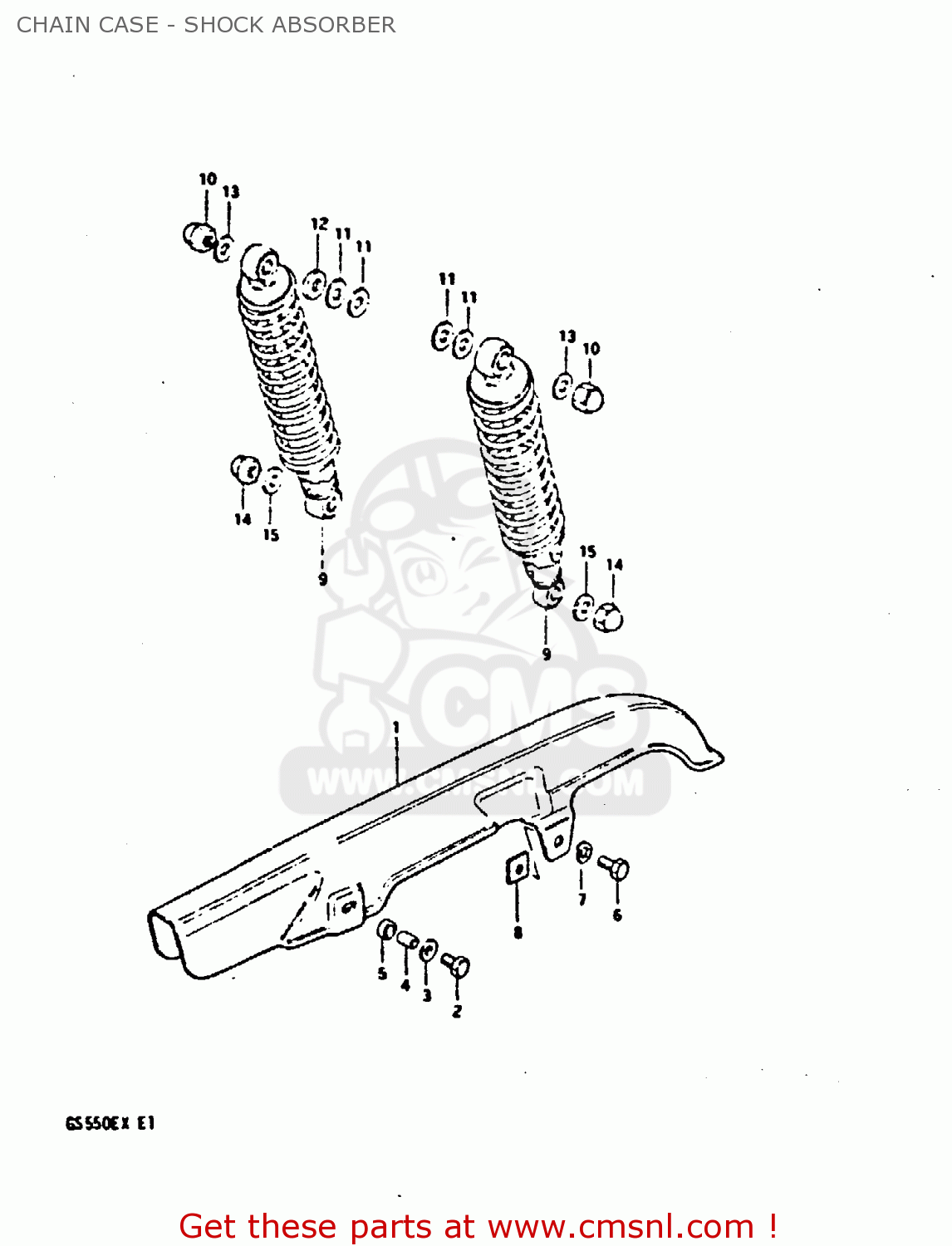

Chain case - shock absorber diagram GS550 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

6131144102291
ref: 1

CASE,CHAIN

€ 65.50

0110706108
ref: 2

BOLT

€ 2.00

0916006056
ref: 3

WASHER(6.5X18X1)

€ 2.00

0918006032
ref: 4

SPACER (6.1X8X5.2)

€ 2.50

0932008005
ref: 5

CUSHION

€ 2.00

0110706168
ref: 6

BOLT, UPPER

€ 3.00

0832121068
ref: 7

LOCK WASHER

€ 2.50

6131643000
ref: 8

NUT,CHAIN CASE RR

€ 3.00

6210034510
ref: 9

SHOCK ABSORBER, REAR

€ 0.00

0914510001
ref: 10

NUT

€ 2.50

0832211128
ref: 11

WASHER

€ 2.00

0916012012
ref: 12
12.5*24*3.2

WASHER (12.5X24X3.2)

€ 2.50

0916010001
ref: 13
10.5*24*2.3

WASHER

€ 2.00

0831311108
ref: 14

NUT, LOWER LH

€ 2.50

0916010001
ref: 15
10.5*24.23

WASHER

€ 2.00

CHAIN CASE - SHOCK ABSORBER

all assemblies
