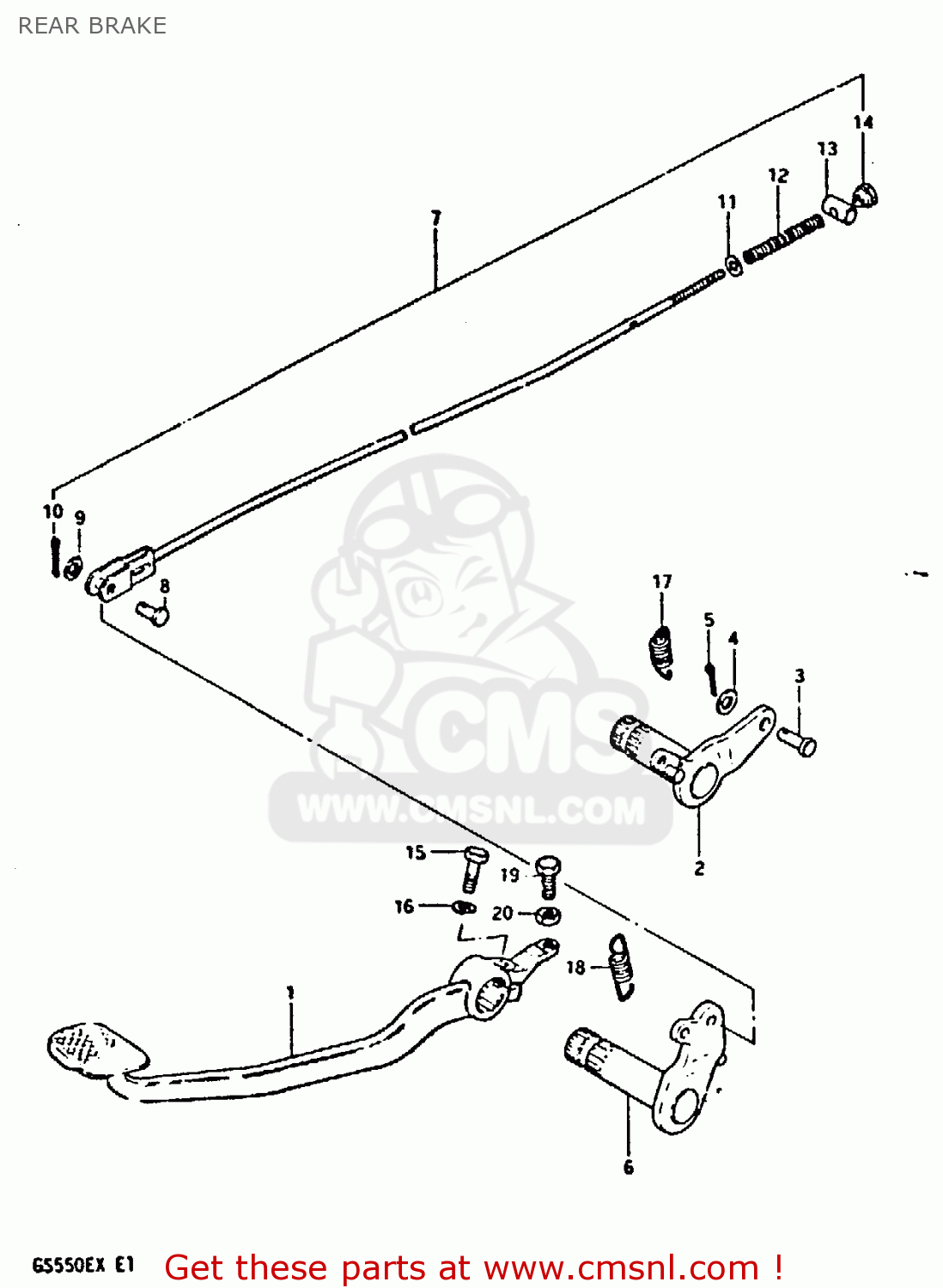

REAR BRAKE

ref

part #

description

quantity

1

4311034500
ref: 1

PEDAL,BRAKE

€ 47.00

2

4312034500
ref: 2
GS550EX

ARM,BRAKE PEDAL

€ 38.00

3

0920006029
ref: 3
GS550EX

PIN

€ 1.50

4

0832221068
ref: 4
GS550EX

WASHER

€ 2.00

5

0411120158
ref: 5
GS550EX

PIN

€ 1.50

6

4312034510
ref: 6
GS550X:E1, E2, E22,

ARM,BRAKE PEDAL

€ 0.00

7

4330034510
ref: 7
GS550X:E1, E2, E22,

ROD, REAR BRAKE

€ 15.50

8

0920006013
ref: 8
GS550X:E1, E2, E22,

PIN(L:13.5)

€ 2.00

9

0832221068
ref: 9
GS550X:E1, E2, E22,

WASHER

€ 2.00

10

0411120208
ref: 10
GS550X:E1, E2, E22,

PIN 20X20

€ 1.50

11

0832221068
ref: 11
GS550X:E1, E2, E22,

WASHER

€ 2.00

12

0944009004
ref: 12
GS550X:E1, E2, E22,

SPRING

€ 2.00

13

0920913003
ref: 13
GS550X:E1, E2, E22,

PIN

€ 3.50

14

0915006001
ref: 14
GS550X:E1, E2, E22,

NUT

€ 3.50

15

0110708258
ref: 15

BOLT

€ 2.50

16

0832121088
ref: 16

LOCK WASHER

€ 2.00

17

0944314013
ref: 17
GS550EX

SPRING

€ 21.50

18

0944314015
ref: 18
GS550X:E1, E2, E22,

SPRING

€ 3.00

19

0110706208
ref: 19

BOLT

€ 2.00

20

0831011068
ref: 20

NUT

€ 2.50

all assemblies
