CARBURETOR
GS550 1981 (X) GENERAL EXPORT (E01)

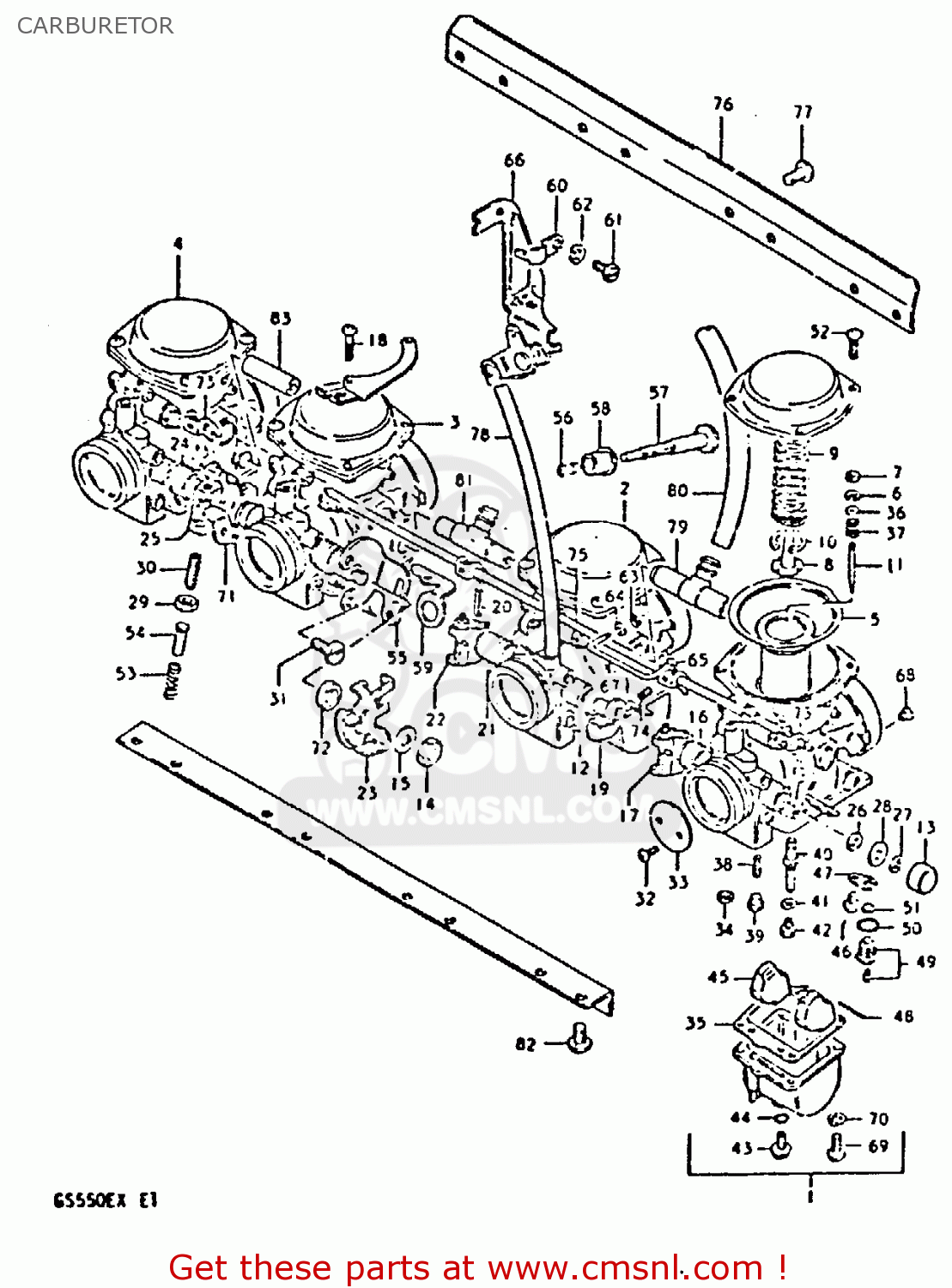

Carburetor diagram GS550 1981 (X) GENERAL EXPORT (E01)
CARBURETOR GS550 1981 (X) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
0
1320047090
ref: 0
CARBURETOR ASSY
€ 551.00
1
1320147090
ref: 1
LH
CARBURETOR, NO.1
€ 187.00
2
1320247090
ref: 2
ML
CARBURETOR, NO.2
€ 0.00
3
1320347090
ref: 3
MR
CARBURETOR, NO.3
€ 186.50
4
1320447090
ref: 4
RH
CARBURETOR, NO.4
€ 0.00
5
1350047070
ref: 5
DIAPHRAGM ASSEMBLY
€ 170.50
6
1339431210
ref: 6
CLIP,NEEDLE
€ 3.50
7
1338744030
ref: 7
RING
€ 5.00
8
1338944030
ref: 8
HOLDER,GUIDE
€ 10.50
9
1350347070
ref: 9
SPRING
€ 9.50
10
1358144030
ref: 10
E RING
€ 6.50
11
1338347090
ref: 11
NEEDLE, JET (5F42-3)
€ 13.50
12
1355795210
ref: 12
ML, MR
GASKET,THROTTLE SHAFT (NAS)
€ 2.50
13
1357847070
ref: 13
RH, LH
CAP
€ 5.50
14
0831012088
ref: 14
MR
NUT
€ 2.00
15
1360647070
ref: 15
MR
WASHER
€ 3.00
16
1357347070
ref: 16
LH
SPRING,THROTTLE SHAFT
€ 6.00
17
1355047070
ref: 17
LH
SHAFT,THROTTLE
€ 44.50
18
0211205168
ref: 18
ML:1, MR:2
SCREW
€ 2.50
19
1355047080
ref: 19
ML
SHAFT,THROTTLE
€ 42.50
20
1356347070
ref: 20
LH, ML, RH
PIN,THROTTLE SHAFT
€ 0.00
21
1357347070
ref: 21
ML
SPRING,THROTTLE SHAFT
€ 6.00
22
1355347070
ref: 22
ML
LEVER,THROTTLE SHAFT
€ 0.00
23
1355547070
ref: 23
MR
LEVER ASSEMBLY,THROTTLE
€ 0.00
24
1357347080
ref: 24
MR, RH
SPRING,THROTTLE SHAFT
€ 0.00
25
1355047090
ref: 25
RH
SHAFT,THROTTLE
€ 0.00
26
1355631210
ref: 26
SEAL
€ 4.00
27
1361744080
ref: 27
LH, RH
E RING
€ 3.50
28
1355747070
ref: 28
ML, MR
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
29
1360747070
ref: 29
LH, ML, RH
NUT
€ 4.00
30
1360547080
ref: 30
LH, ML, RH
SCREW
€ 7.00
31
1360544100
ref: 31
MR
SCREW,THROTTLE ADJUST B
€ 0.00
32
1360444080
ref: 32
SCREW
€ 3.50
33
1355147090
ref: 33
VALVE,THROTTLE (BUTTERFLY)
€ 17.00
34
1325844080
ref: 34
GASKET (NAS)
€ 4.00
35
1325144080
ref: 35
GASKET,FLOAT CHAMBER (NAS)
€ 9.50
36
1338244030
ref: 36
WASHER
€ 3.50
37
1338844030
ref: 37
SPRING
€ 6.00
38
0949240008
ref: 38
JET
€ 17.50
39
1335744080
ref: 39
PLUG,NEEDLE JET
€ 4.50
40
0949400269
ref: 40
JET, NEEDLE (X-6)
€ 18.50
41
1333244080
ref: 41
WASHER,NEEDLE NOZZLE
€ 2.50
42
0949192001
ref: 42
JET
€ 8.50
43
1324744080
ref: 43
PLUG,DRAIN
€ 9.50
44
1224644080
ref: 44
O RING
€ 0.00
45
1325044080
ref: 45
FLOAT
€ 31.00
46
0211104067
ref: 46
SCREW
€ 2.00
47
1337339110
ref: 47
PLATE
€ 6.50
48
1325492311
ref: 48
PIN,FLOAT
€ 2.00
49
1337044080
ref: 49
VALVE ASSEMBLY,NEEDLE
€ 40.50
50
1337444080
ref: 50
O-RING,NEEDLE VALVE
€ 6.00
51
1337644080
ref: 51
FILTER
€ 6.50
52
0211205128
ref: 52
LH/RH:4, ML:3, MR:2
SCREW
€ 2.50
53
1326844010
ref: 53
LH, ML, RH
SPRING,THROTTLE SCREW
€ 3.00
54
1357547070
ref: 54
LH, ML, RH
PIN,THROTTLE LEVER
€ 2.50
55
1362747070
ref: 55
MR
BRACKET,THROTTLE ADJUST
€ 4.00
56
1327193011
ref: 56
MR
SPRING
€ 4.50
57
1326747070
ref: 57
MR
SCREW
€ 21.00
58
1327631210
ref: 58
MR
BUSH
€ 4.00
59
1362744090
ref: 59
MR
BRACKET,THROTTLE ADJUST
€ 0.00
60
1342147070
ref: 60
ML
BRACKET,STARTER
€ 9.00
61
0110405108
ref: 61
ML
BOLT
€ 1.50
62
0832121058
ref: 62
ML
LOCK WASHER
€ 2.00
63
1341547070
ref: 63
ML
CAP,LEVER
€ 4.50
64
1352398010
ref: 64
ML
SEAT,SPRING
€ 5.00
65
1342247070
ref: 65
ML
LEVER ASSY
€ 11.50
66
1362447070
ref: 66
ML
BRACKET
€ 0.00
67
1342547070
ref: 67
ML
ROD,STARTER LEVER
€ 9.50
68
0949324005
ref: 68
JET,AIR
€ 13.00
69
0211205168
ref: 69
SCREW
€ 2.50
70
0832121058
ref: 70
LOCK WASHER
€ 2.00
71
1355047100
ref: 71
MR
SHAFT,THROTTLE
€ 0.00
72
1358947070
ref: 72
MR
WASHER
€ 3.00
73
1342244080
ref: 73
LEVER
€ 10.00
74
1360547070
ref: 74
SCREW
€ 5.50
75
1341047070
ref: 75
SHAFT,STARTER
€ 29.00
76
1362847070
ref: 76
BRACKET
€ 0.00
77
0211205088
ref: 77
SCREW
€ 2.00
78
1368331610
ref: 78
HOSE
€ 14.00
79
1368547070
ref: 79
NIPPLE
€ 25.00
80
1368347070
ref: 80
HOSE
€ 18.00
81
1368547080
ref: 81
NIPPLE,CARBURETOR
€ 25.50
82
0211206128
ref: 82
SCREW 6X12
€ 2.00
83
1368547090
ref: 83
NIPPLE
€ 16.50
