GENERATOR
GS550 1981 (X) GENERAL EXPORT (E01)

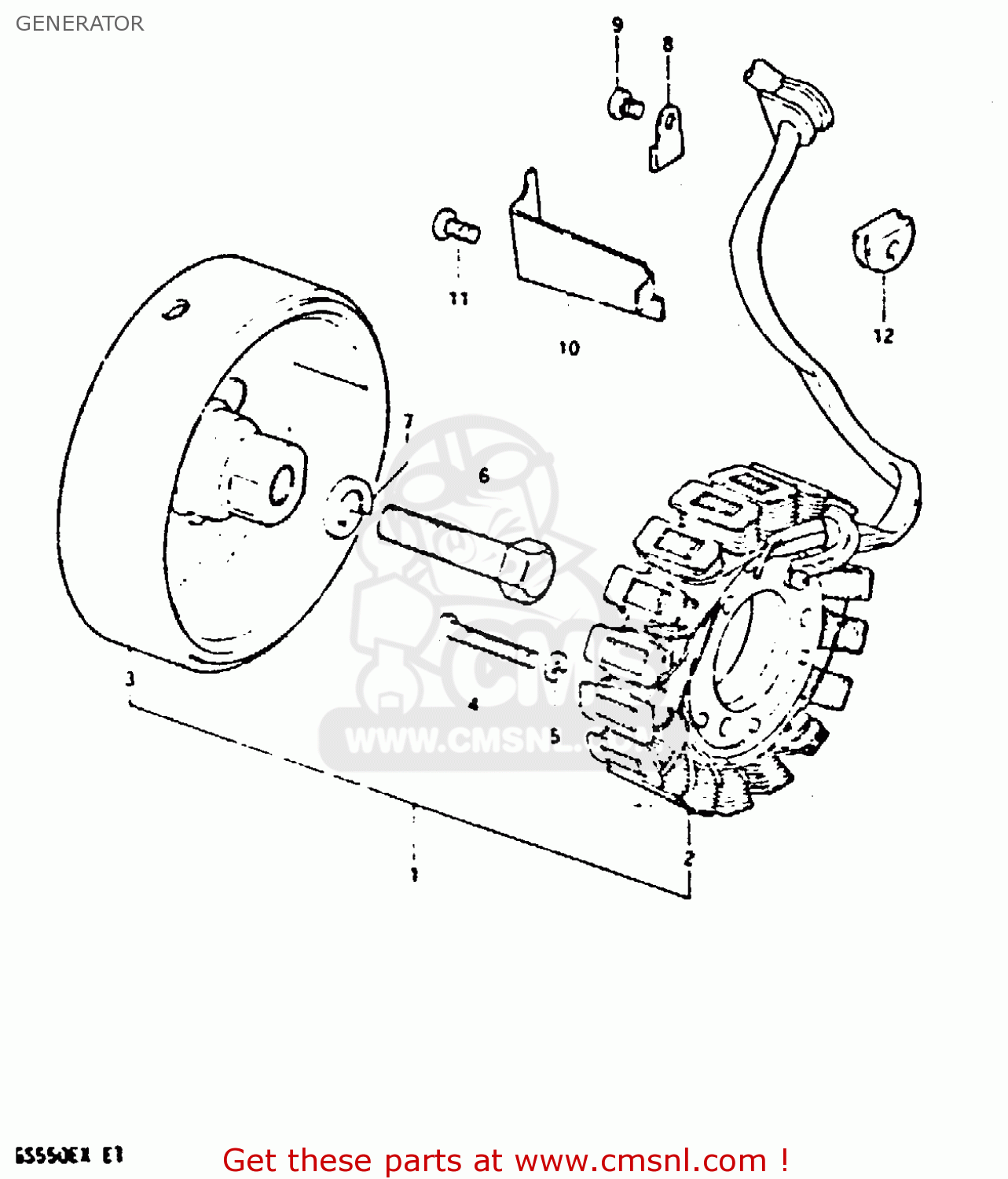

Generator diagram GS550 1981 (X) GENERAL EXPORT (E01)
GENERATOR GS550 1981 (X) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3140047020
ref: 1
GENERATOR ASSEMBLY
€ 371.00
2
3140147020
ref: 2
STATOR ASSEMBLY
€ 371.00
3
3140245090
ref: 3
ROTOR ASSEMBLY
€ 385.00
4
0211205308
ref: 4
SCREW
€ 1.50
5
0832121058
ref: 5
LOCK WASHER
€ 2.00
6
0110712458
ref: 6
BOLT 12X45
€ 5.50
7
0832131128
ref: 7
WASHER,LOCK 12
€ 2.50
8
3149745000
ref: 8
CLAMP,GENERATOR LEAD WIRE
€ 1.50
9
0211205068
ref: 9
SCREW
€ 4.00
10
3149845000
ref: 10
CLAMP,GENERATOR LEAD WIRE
€ 2.00
11
0211206108
ref: 11
SCREW
€ 1.50
12
3148247000
ref: 12
GROMMET,STARTER CABLE
€ 2.00
