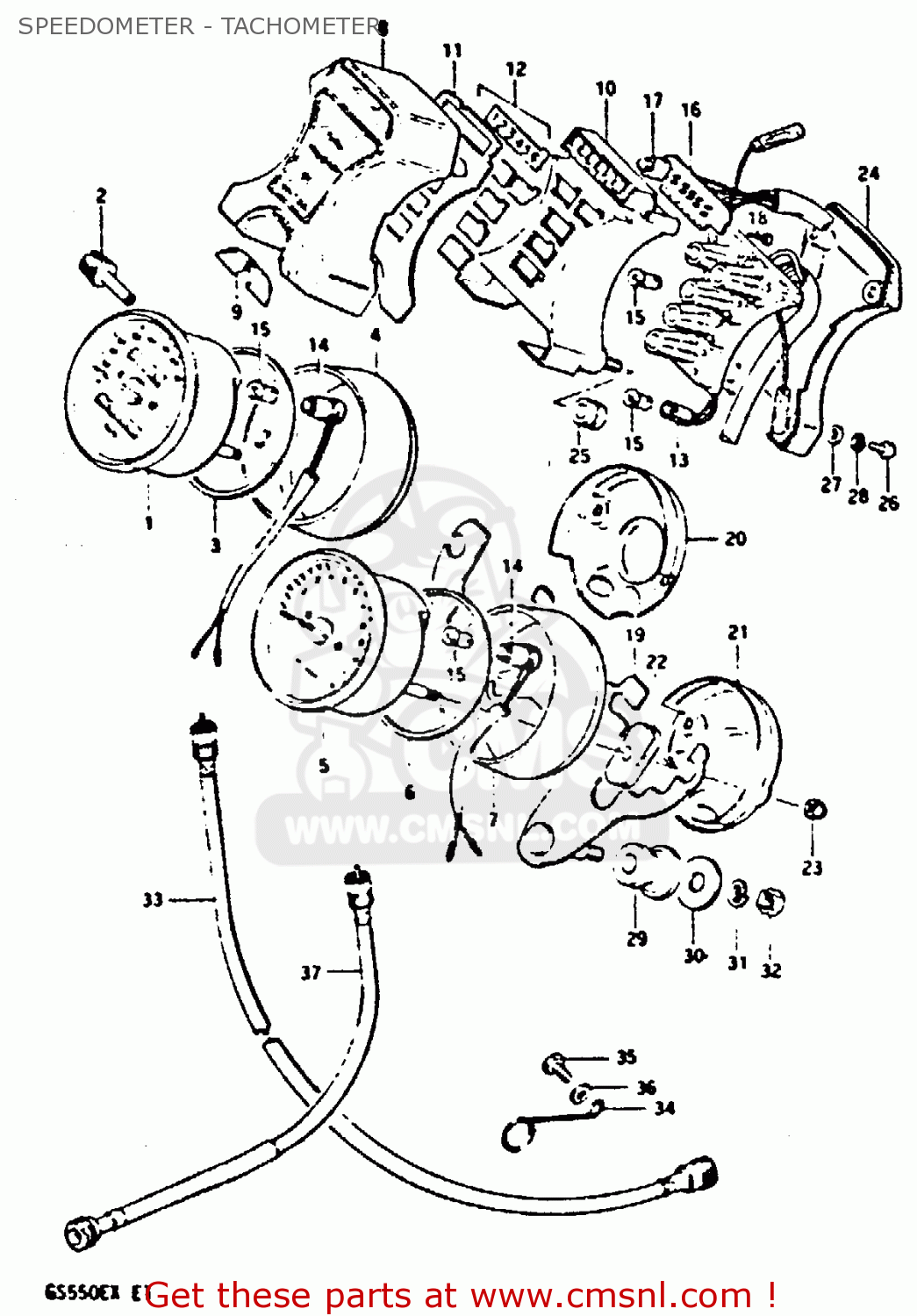

SPEEDOMETER - TACHOMETER - GS550 1981 (X) GENERAL EXPORT (E01)

ref

part #

description

quantity

1-1

NOTUSED
ref: 1-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-2

3411047330
ref: 1-2
MILE & KILO SCALE

SPEEDOMETER

€ 0.00

2

3412428010
ref: 2

KNOB,TRIP

€ 7.50

3

3418934510
ref: 3

CUSHION,SPEEDOMETER

€ 8.50

4

3415134510
ref: 4

COVER,SPEEDOMETER

€ 10.00

5

3421047300
ref: 5

TACHOMETER

€ 316.00

6

3418934510
ref: 6

CUSHION,SPEEDOMETER

€ 8.50

7

3425134510
ref: 7

COVER,TACHOMETER

€ 29.50

8

3638034510
ref: 8

CASE,PILOT BULB

€ 40.50

9

3639134510
ref: 9

PAD

€ 1.50

10

3638134510
ref: 10

CASE,PILOT BULB,INNER

€ 13.00

11

3638634510
ref: 11

PLATE,PILOT BOX

€ 6.00

12

3630047810
ref: 12

LENS SET,PILOT LAMP

€ 14.00

13

3632534510
ref: 13

SOCKET

€ 30.00

14

3417334510
ref: 14

SOCKET,METER

€ 13.50

15

0947112001
ref: 15

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

16

3645347300
ref: 16

SOCKET,GEAR INDICATOR

€ 29.50

17

0947112071
ref: 17

BULB(14V1.12W)

€ 5.00

18

3645634510
ref: 18

SCREW,GEAR INDICATOR

€ 2.00

19

3495034510
ref: 19

BRACKET,COMBINATION METER

€ 27.50

20

3419334510
ref: 20

COVER,SPEEDOMETER,UNDER

€ 32.50

21

3429334510
ref: 21

COVER,TACHOMETER,UNDER

€ 23.00

22

3419134510
ref: 22

CUSHION,METER

€ 7.50

23

0831311057
ref: 23

NUT

€ 1.50

24

3638334510
ref: 24

COVER,PILOT BOX,UNDER

€ 17.50

25

3638434510
ref: 25

CUSHION

€ 6.50

26

0211204128
ref: 26

SCREW

€ 1.50

27

0832221048
ref: 27

WASHER

€ 2.00

28

0832121048
ref: 28

LOCK WASHER

€ 2.00

29

3495631001
ref: 29

CUSHION,METER BRACKET

€ 4.50

30

0916008002
ref: 30

WASHER (8.5X29X1.6)

€ 2.00

31

0832121088
ref: 31

LOCK WASHER

€ 2.00

32

0831012088
ref: 32

NUT

€ 2.00

33

3491047310
ref: 33

CABLE ASSEMBLY,SPEEDOMETER

€ 27.50

34

3493845100
ref: 34

CLAMP,SPEEDOMETER CABLE

€ 14.50

35

0110706168
ref: 35

BOLT, UPPER

€ 3.00

36

0832221068
ref: 36

WASHER

€ 2.00

37

3494047031
ref: 37

CABLE ASSEMBLY,TACHOMETER

€ 20.50
