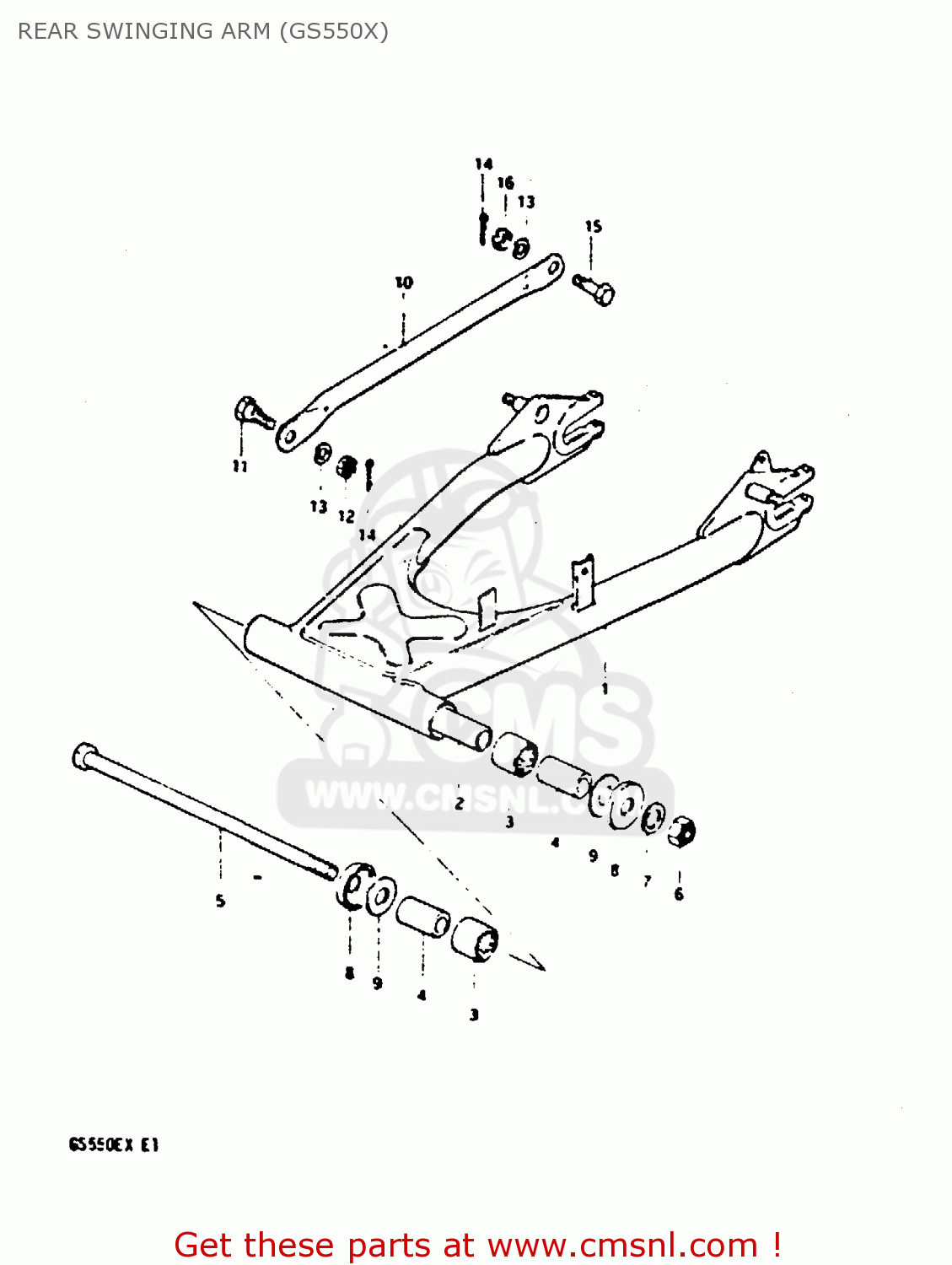

REAR SWINGING ARM (GS550X)

GS550 1981 (X) GENERAL EXPORT (E01)

Rear swinging arm (gs550x) diagram GS550 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

6110034830019
ref: 1

SWING ARM ASSEMBLY,REAR

€ 135.00

6128145001
ref: 2

SPACER,RR SWGARM PIVOT CTR

€ 19.50

0926322017
ref: 3

BEARING(22X29X30)

€ 18.50

6125145001
ref: 4

SPACER,RR SWGARM PIVOT

€ 12.50

6121145400
ref: 5

SHAFT,REAR SWING ARM

€ 49.00

0831921148
ref: 6

NUT 14MM

€ 3.00

0832211148
ref: 7

WASHER

€ 2.00

6126245002
ref: 8

CVR,RR SWGARM DUST SEAL(OD:40)

€ 4.50

0916014020
ref: 9

WASHER(14.2X34X1)

€ 2.50

6431134000
ref: 10

TORQUE LINK,REAR

€ 13.50

0911110010
ref: 11

BOLT(10X24.5)

€ 5.50

0831022108
ref: 12

NUT

€ 2.50

0832121108
ref: 13

LOCK WASHER

€ 2.00

0411120208
ref: 14

PIN 20X20

€ 1.50

0910110003
ref: 15

BOLT(10X31)

€ 4.00

0831011108
ref: 16

NUT

€ 2.50

REAR SWINGING ARM (GS550X)

all assemblies
