RIGHT HANDLE SWITCH

GS550 1981 (X) GENERAL EXPORT (E01)

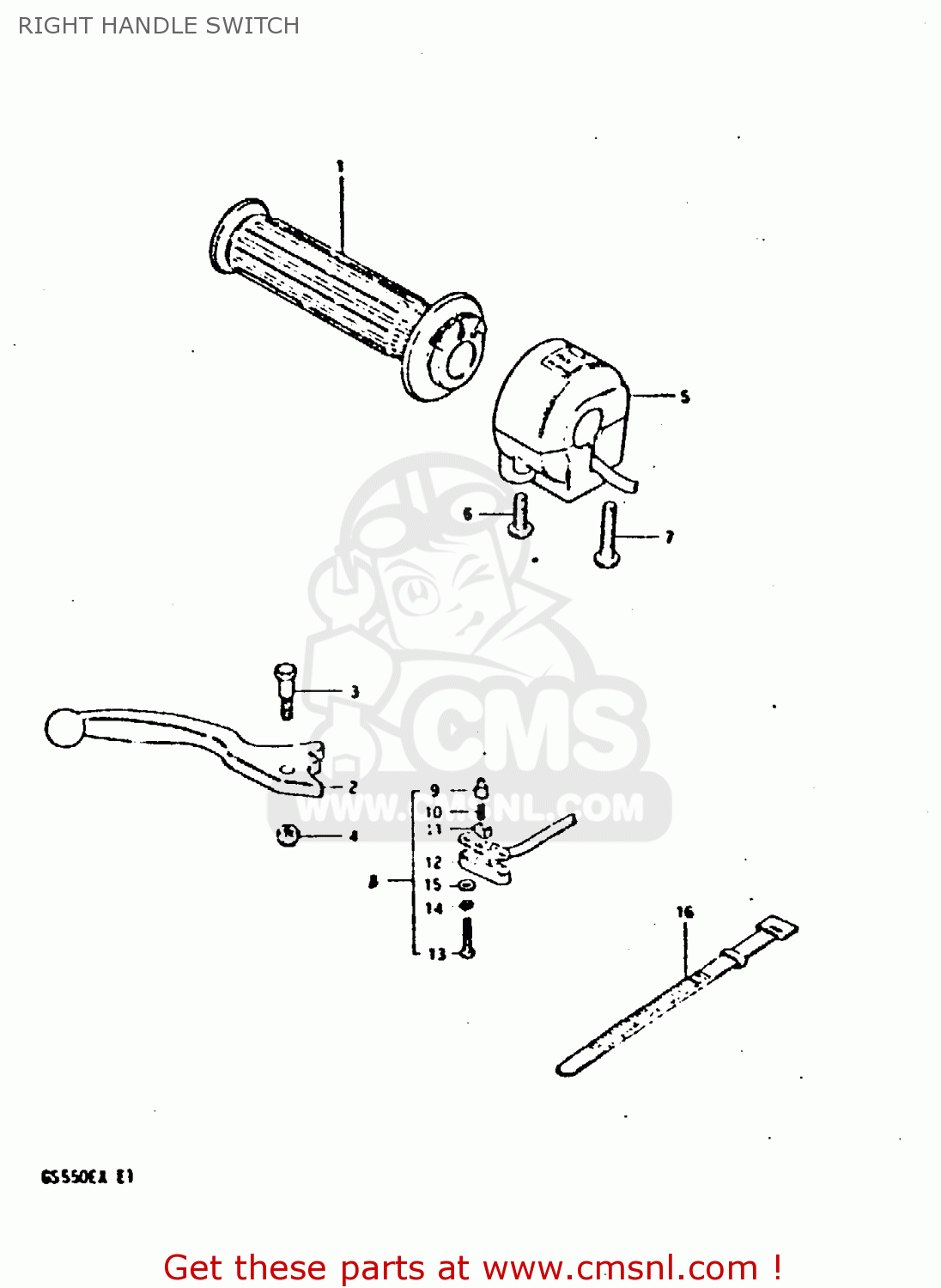

Right handle switch diagram GS550 1981 (X) GENERAL EXPORT (E01)

RIGHT HANDLE SWITCH GS550 1981 (X) GENERAL EXPORT (E01)

RIGHT HANDLE SWITCH GS550 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

5711044011
ref: 1

GRIP,THROTTLE

€ 33.00

2

5742049101
ref: 2

LEVER,BRAKE

€ 36.50

3

5743118621
ref: 3

BOLT

€ 8.00

4

0831921068
ref: 4

NUT 6MM

€ 2.00

5-1

3720034210
ref: 5-1

SWITCH ASSY, HANDLE RH

€ 78.50

5-2

3720034410
ref: 5-2

SWITCH ASSY, HANDLE LH

€ 108.50

6

0211205258
ref: 6

SCREW

€ 2.00

7

0211205358
ref: 7

SCREW

€ 1.50

8

NOTUSED
ref: 8

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

9

NOTUSED
ref: 9

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

10

NOTUSED
ref: 10

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11

NOTUSED
ref: 11

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

12

NOTUSED
ref: 12

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

13

NOTUSED
ref: 13

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

14

NOTUSED
ref: 14

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

15

NOTUSED
ref: 15

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

16

0940712402
ref: 16

CLAMP(L:120)

€ 3.00
