COWLING BODY (GSF1200SX/SAX)

GSF1200SA 1998 (W) (E17 E18 E22 E34)

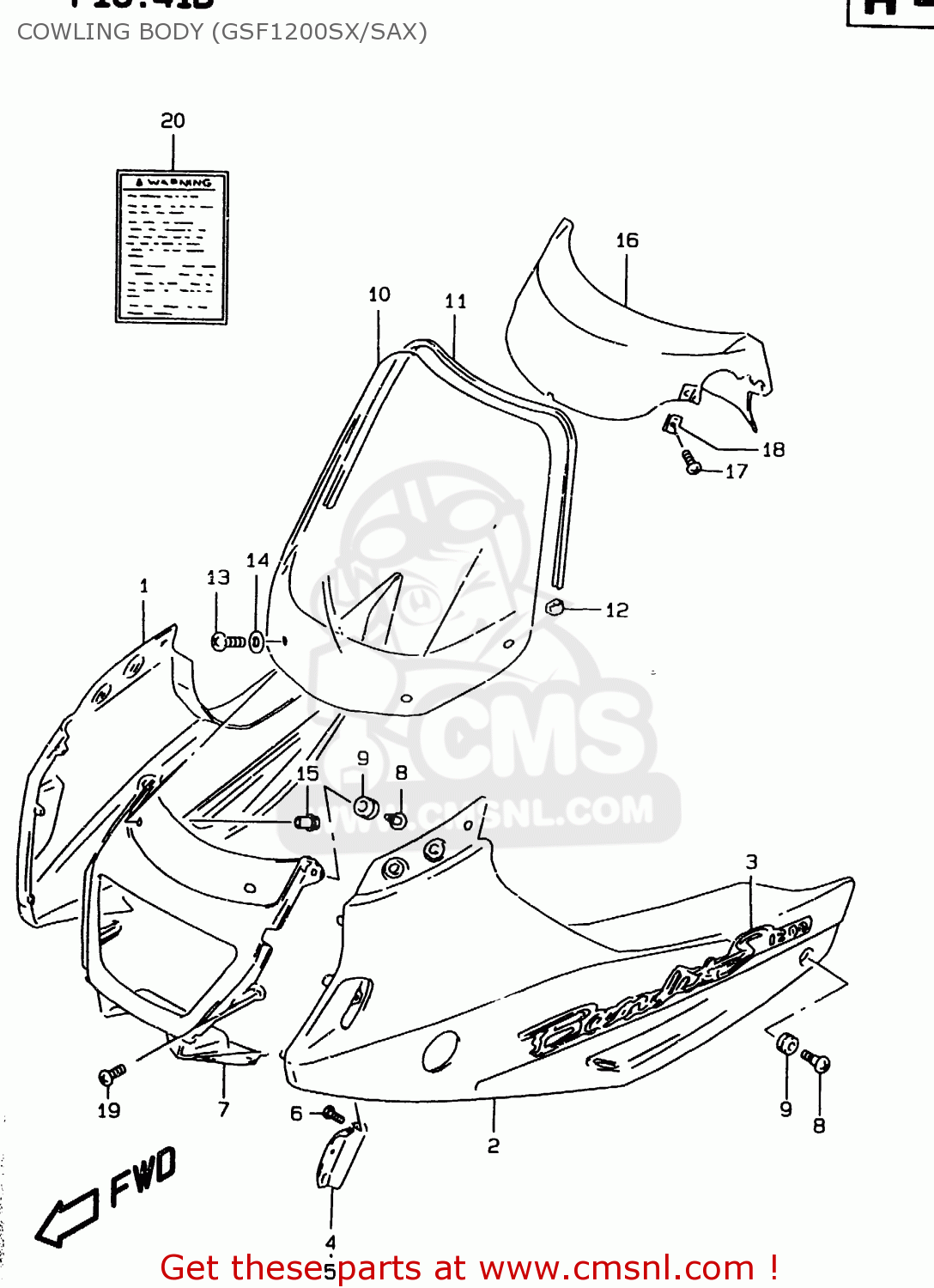

Cowling body (gsf1200sx/sax) diagram GSF1200SA 1998 (W) (E17 E18 E22 E34)

COWLING BODY (GSF1200SX/SAX) GSF1200SA 1998 (W) (E17 E18 E22 E34)

COWLING BODY (GSF1200SX/SAX) GSF1200SA 1998 (W) (E17 E18 E22 E34)

prices are in EUR

ref

part #

description

quantity

1

9440127E1022U
ref: 1

COWLING ASSY,SIDE,R

€ 233.00

1

9440127E0033J
ref: 1

COWLING ASSY,SIDE,R

€ 579.00

1

9440127E00Y7F
ref: 1

COWLING ASSY,SIDE,R(BROWN)

€ 241.50

1

9440127E00Y7G
ref: 1

COWLING ASSY,SIDE,R

€ 268.50

2

9440227E1022U
ref: 2

COWLING ASSY,SIDE,L(MAROON)

€ 233.00

2

9440227E0033J
ref: 2

COWLING ASSY,SIDE,L

€ 227.50

2

9440227E00Y7F
ref: 2

COWLING ASSY,SIDE,L

€ 227.50

2

9440227E00Y7G
ref: 2

COWLING ASSY,SIDE,L

€ 227.50

3

6868127E00F6G
ref: 3
FOR 22U, 33J

EMBLEM,COWLING SIDE

€ 19.50

3

6868127E00L9D
ref: 3
FOR Y7F

EMBLEM,COWLING SIDE

€ 17.50

3

6868127E00K1Z
ref: 3
FOR Y7G

EMBLEM,COWLING SIDE

€ 25.00

4

9441326E00
ref: 4

COVER,COWLING INNER,R

€ 15.00

5

9442326E00
ref: 5

COVER,COWLING INNER,L

€ 11.00

6

0354105103
ref: 6

SCREW 5X10

€ 1.50

7

9440326E1022U
ref: 7

COWLING ASSY,CTR

€ 82.50

7

9440326E0033J
ref: 7

COWLING ASSY,CTR

€ 73.00

7

9440326E00Y7F
ref: 7

COWLING ASSY,CTR(BROWN)

€ 77.00

7

9440326E00Y7G
ref: 7

COWLING ASSY,CTR

€ 77.50

8

0913906087
ref: 8

SCREW(6X20)

€ 4.00

9

0932009016
ref: 9

CUSHION

€ 2.50

10

9461026E01
ref: 10

WINDSCREEN SET

€ 229.00

11

9463133C01
ref: 11

MOLDING WINDSCREEN

€ 10.00

12

9463721E00
ref: 12

CLIP,WINDSCREEN MOLDING

€ 4.00

13

0913905025
ref: 13

SCREW(5X14)

€ 2.00

14

0832201053
ref: 14

WASHER

€ 2.50

15

0915905019
ref: 15

NUT

€ 5.50

16

9464027E00
ref: 16

PANEL,INNER

€ 55.50

17

0324205123
ref: 17

SCREW

€ 1.50

18

0914805038
ref: 18

NUT

€ 2.50

19

0214215163
ref: 19

SCREW

€ 3.00

20

6861248B00
ref: 20

LABEL (WARNING SCREEN)

€ 6.50

20

6861248B10
ref: 20
E4, E34

LABEL (WARNING SCREEN)

€ 6.50

20

6861248B20
ref: 20
E18, E22

LABEL (WARNING,SCREEN)

€ 6.50
