CYLINDER HEAD
GSF1200SA 1998 (W) (E17 E18 E22 E34)

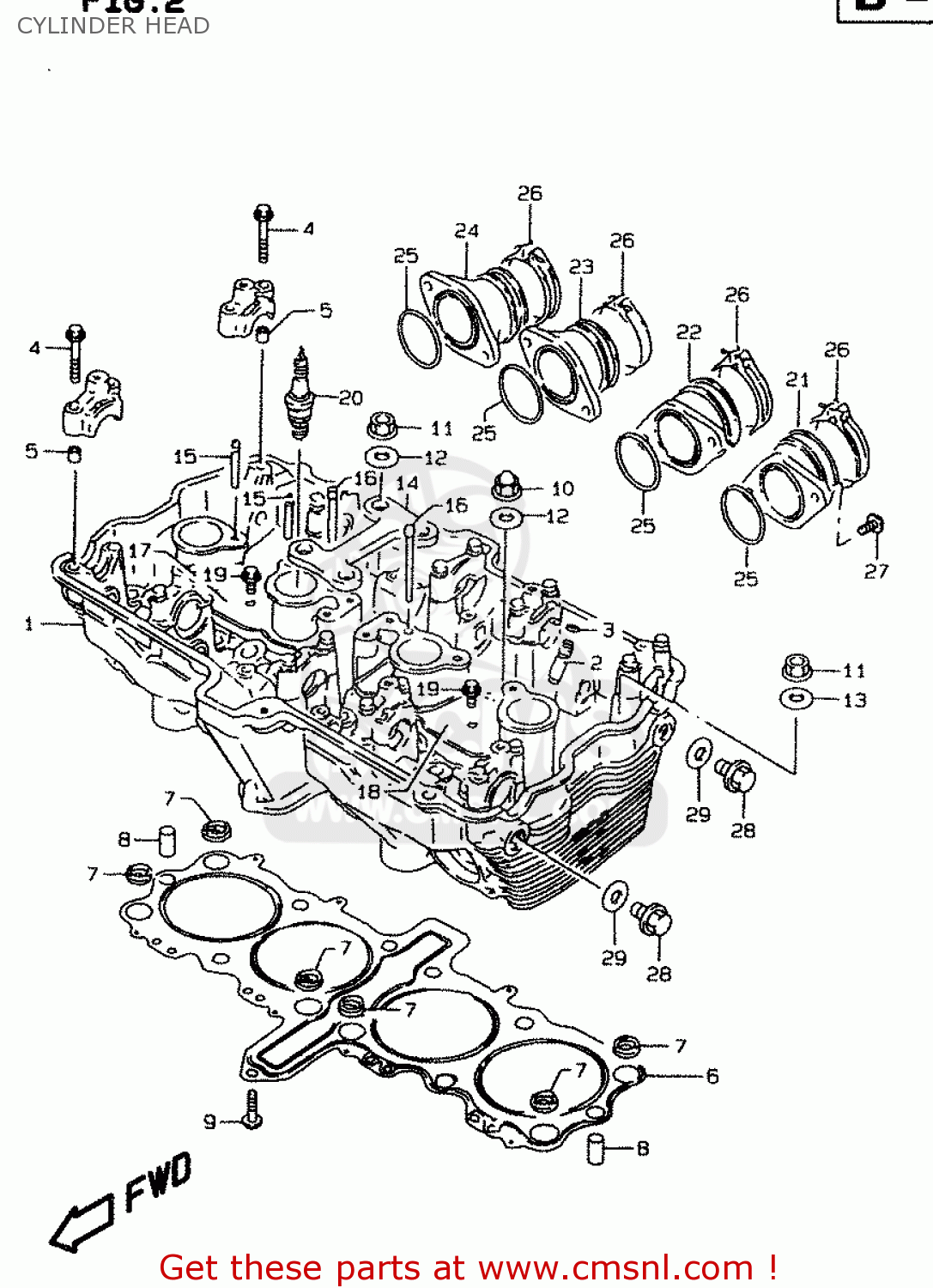

Cylinder head diagram GSF1200SA 1998 (W) (E17 E18 E22 E34)
CYLINDER HEAD GSF1200SA 1998 (W) (E17 E18 E22 E34)
×
prices are in EUR
ref
part #
description
quantity
1
1110027E50
ref: 1
HEAD ASSY,CYLINDER
€ 1,817.50
1
1110027E60
ref: 1
E18
HEAD ASSY,CYLINDER
€ 1,855.50
2
1111606B70
ref: 2
GUIDE,VALVE
€ 43.00
3
0938110004
ref: 3
RING,SNAP
€ 1.50
4
0910306026
ref: 4
BOLT(6X39)
€ 2.00
5
0920608001
ref: 5
PIN(6.2X8X11)
€ 2.00
6
1114127E00
ref: 6
GASKET,CYLINDER HEAD
€ 91.50
7
1114348B01
ref: 7
O-RING,HEAD GASKET
€ 6.00
8
0920911007
ref: 8
PIN
€ 16.00
9
0155006303
ref: 9
BOLT
€ 2.50
10
0915910069
ref: 10
NUT
€ 5.00
11
0831610103
ref: 11
NUT
€ 2.00
12
0916810031
ref: 12
GASKET(10.2X20X2).3 (NAS)
€ 2.00
13
0916010060
ref: 13
WASHER (10.5X22X2.3)
€ 2.50
14
1113840C10
ref: 14
PLATE,HEAD REINFORCEMENT
€ 27.00
15
1113127A00
ref: 15
PIPE,OIL NO.1
€ 6.00
16
1113327A00
ref: 16
PIPE,OIL NO.3
€ 7.00
17
1113527A02
ref: 17
PLATE,OIL PIPE,R
€ 4.00
18
1113627A02
ref: 18
PLATE,OIL PIPE,L
€ 4.00
19
0155006123
ref: 19
BOLT
€ 2.50
20
0948200389
ref: 20
PLUG,SPARK(JR9B)
€ 8.00
20
0948200391
ref: 20
OPT
PLUG,SPARK(JR10B)
€ 9.00
21
1310140C00
ref: 21
PIPE,INTAKE NO.1
€ 43.50
22
1310240C00
ref: 22
PIPE,INTAKE NO.2
€ 43.50
23
1310340C00
ref: 23
PIPE,INTAKE NO.3
€ 43.50
24
1310440C00
ref: 24
PIPE,INTAKE NO.4
€ 38.00
25
0928040010
ref: 25
O RING(D:2.4,ID:39.7)
€ 3.50
26
0940252208
ref: 26
CLAMP
€ 5.50
27
0712006163
ref: 27
BOLT MAGNETO S
€ 2.50
28
0924814010
ref: 28
PLUG
€ 5.00
28
0924814010
ref: 28
PLUG
€ 5.00
28
0924814010
ref: 28
GSF1200W/X E18
PLUG
€ 5.00
28
0924714032
ref: 28
GSF1200W/X E18
PLUG
€ 5.00
29
0916814002
ref: 29
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
