OIL PAN
GSF1200SA 1998 (W) (E17 E18 E22 E34)

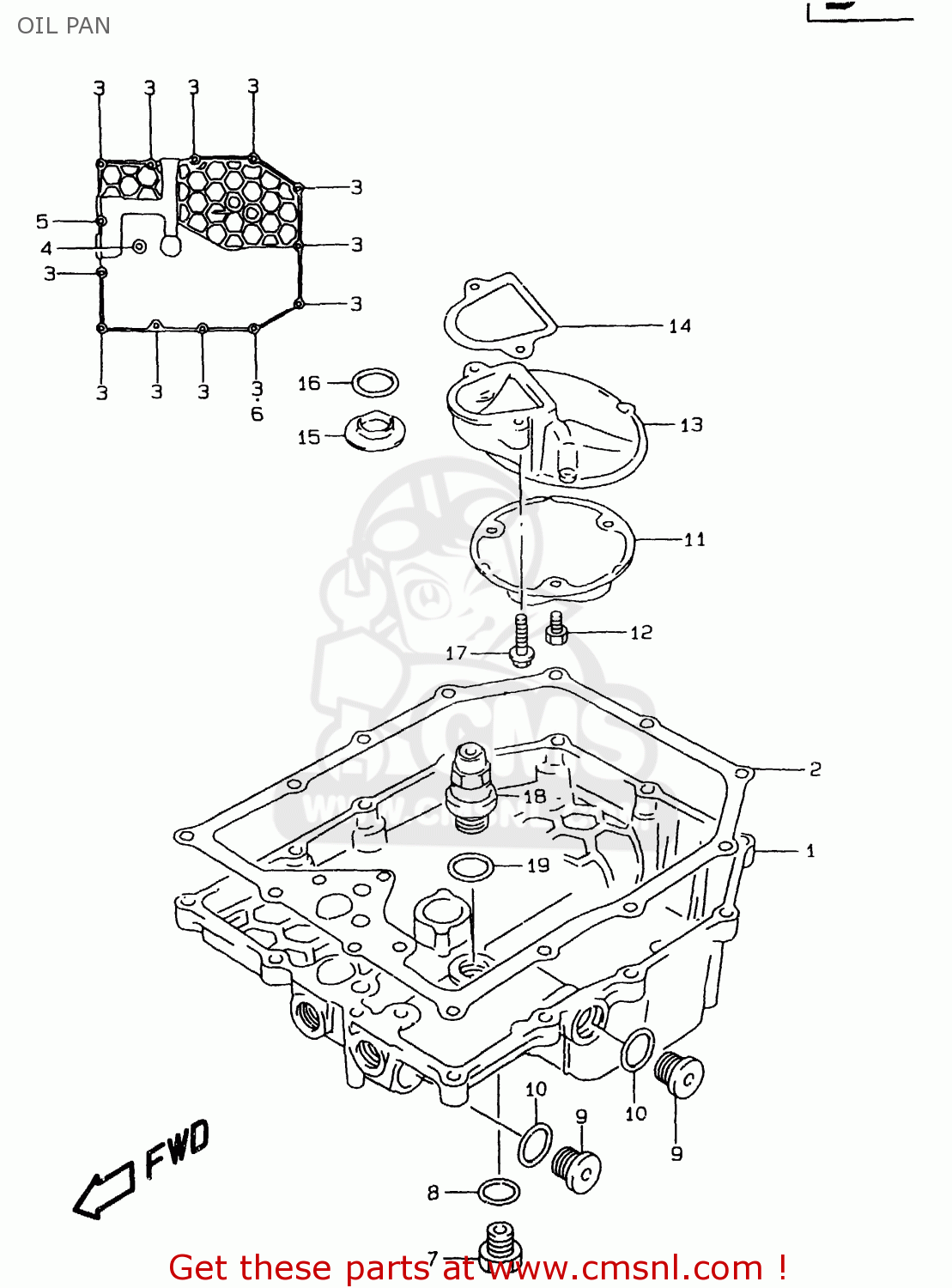

Oil pan diagram GSF1200SA 1998 (W) (E17 E18 E22 E34)
OIL PAN GSF1200SA 1998 (W) (E17 E18 E22 E34)
×
prices are in EUR
ref
part #
description
quantity
1
1151126E10
ref: 1
MODEL T/V
PAN,OIL
€ 176.00
1
1151126E00
ref: 1
MODEL W/X
PAN,OIL
€ 260.50
2
1148927A20
ref: 2
GASKET,OIL PAN (NAS)
€ 23.00
3
0155006253
ref: 3
BOLT
€ 2.50
4
0155006303
ref: 4
BOLT
€ 2.50
5
0155006503
ref: 5
BOLT
€ 2.00
6
0916806024
ref: 6
GASKET(5.8X11X1.2) (NAS)
€ 2.00
7
0924714001
ref: 7
PLUG
€ 5.00
8
0916814002
ref: 8
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
9
0924816010
ref: 9
PLUG
€ 4.50
10
0916816002
ref: 10
GASKET(16X22X2) (NAS)
€ 2.00
11
1652009301
ref: 11
STRAINER,ENGINE OIL
€ 14.00
12
0157006123
ref: 12
BOLT
€ 1.50
13
1652506B00
ref: 13
PROTECTOR,OIL STRAINER
€ 33.50
14
1652827A20
ref: 14
GASKET,OIL STRAINER PROTECTOR (NAS)
€ 9.00
15
1652927A01
ref: 15
GASKET,OIL OUTLET (NAS)
€ 2.00
16
0928018009
ref: 16
O RING(D:3.2,ID:17.8)
€ 8.00
17
0155006253
ref: 17
BOLT
€ 2.50
18
1644017C01
ref: 18
VALVE ASSEMBLY,OIL RELIEF
€ 68.50
19
0916816002
ref: 19
GASKET(16X22X2) (NAS)
€ 2.00
