GEAR SHIFTING
GSF1200SA 1998 (W) (E17 E18 E22 E34)

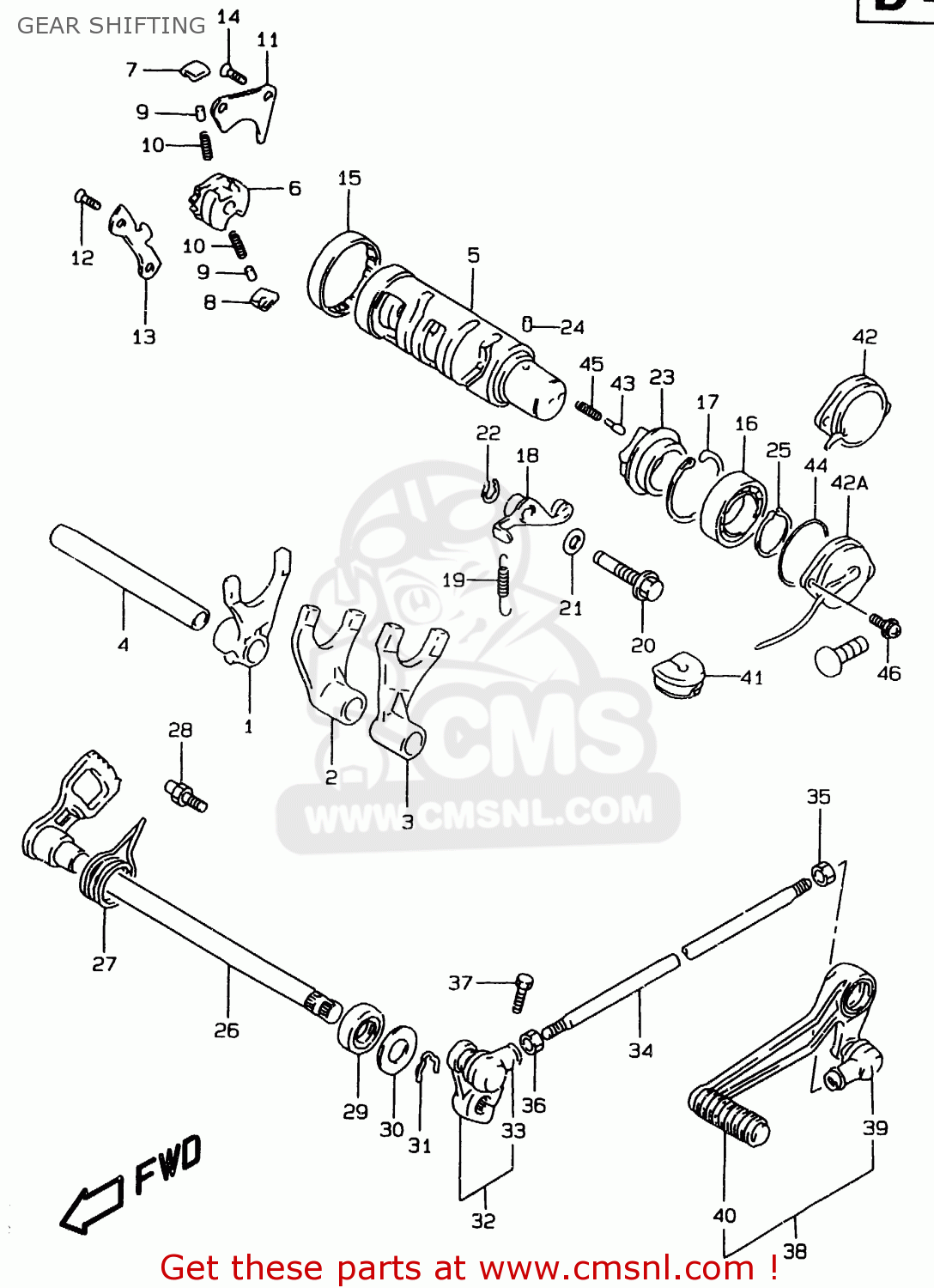

Gear shifting diagram GSF1200SA 1998 (W) (E17 E18 E22 E34)
GEAR SHIFTING GSF1200SA 1998 (W) (E17 E18 E22 E34)
×
prices are in EUR
ref
part #
description
quantity
1
2521106B01
ref: 1
FORK,GEAR SHIFT NO.1
€ 83.50
2
2522106B00
ref: 2
FORK,GEAR SHIFT NO.2
€ 83.50
3
2523106B00
ref: 3
FORK,GEAR SHIFT NO.3
€ 83.50
4
2541127A00
ref: 4
SHAFT,GEAR SHIFT FORK(L:128)
€ 23.50
5
2531006B02
ref: 5
CAM,GEAR SHIFT
€ 196.50
6
2532231310
ref: 6
<-25322-31302
GEAR,GEAR SHIFT CAM DRIVEN
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
€ 1.50
10
0944004003
ref: 10
SPRING
€ 1.50
11
2533131301
ref: 11
LIFTER,GEAR SHIFT PAWL
€ 7.00
12
0212206123
ref: 12
SCREW
€ 3.00
13
2534127A00
ref: 13
GUIDE,GEAR SHIFT CAM
€ 8.50
14
0212206123
ref: 14
SCREW
€ 3.00
15
0926343001
ref: 15
BEARING(43X49X12)
€ 30.00
16
0811369050
ref: 16
BEARING
€ 36.00
17
0833141426
ref: 17
CIRCLIP
€ 1.50
18
2535027A00
ref: 18
STOPPER,GEAR SHIFT CAM
€ 13.00
19
0944309033
ref: 19
SPRING
€ 7.00
20
2535327A00
ref: 20
SHAFT,GEAR SHIFT CAM STOPPER
€ 5.50
21
0916810002
ref: 21
GASKET(10X14X3.6) (NAS)
€ 2.00
22
0833131086
ref: 22
CIRCLIP
€ 2.00
23
2538138400
ref: 23
PLATE,STOPPER
€ 22.00
24
0422104069
ref: 24
PIN
€ 2.00
25
0833131256
ref: 25
CIRCLIP
€ 2.00
26
2551019C01
ref: 26
SHAFT,GEAR SHIFT
€ 91.50
27
0944426017
ref: 27
SPRING
€ 5.00
28
2567101000
ref: 28
STOPPER,GEAR SHIFT CAM
€ 3.00
29
0928512002
ref: 29
OIL SEAL
€ 7.00
30
0916012020
ref: 30
MODEL T/V
WASHER (12.5X27X1.6)
€ 2.00
30
0916012090
ref: 30
MODEL W/X
WASHER (12.5X26X1.6)
€ 2.00
31
0833131126
ref: 31
CIRCLIP,12 MM
€ 2.00
32
2552022A00
ref: 32
ARM,GEAR SHIFT LINK
€ 46.50
33
2552647000
ref: 33
COVER,DUST
€ 3.50
34
2552526E00
ref: 34
MODEL T
ROD,GEAR SHIFT LINK
€ 14.50
34
2552526E01
ref: 34
MODEL V/W/X
ROD,GEAR SHIFT LINK
€ 14.50
35
0914006011
ref: 35
NUT
€ 1.50
36
0831000067
ref: 36
NUT
€ 2.50
37
0150006203
ref: 37
BOLT
€ 2.00
38
2560033E00
ref: 38
LEVER ASSY,GEAR SHIFT
€ 106.00
39
2552647000
ref: 39
COVER,DUST
€ 3.50
40
2565220C00
ref: 40
RUBBER,GEAR SHIFT PEDAL
€ 8.00
41
3388527A01
ref: 41
GROMMET,LEADWIRE
€ 20.50
42
3772020C00
ref: 42
BASE ASSY,GEAR SHIFT TERMINAL
€ 88.50
42A
3772048B00
ref: 42A
E24
TERMINAL BASE ASSY,NEUTRAL
€ 57.00
43
0920905011
ref: 43
PIN(5X15.5)
€ 2.00
44
0928035006
ref: 44
O RING(D:2.4,ID:35.5)
€ 4.00
45
0944004010
ref: 45
SPRING
€ 1.50
46
0211275163
ref: 46
SCREW
