FUEL TANK (MODEL T/V)

GSF1200SA 1998 (W) (E17 E18 E22 E34)

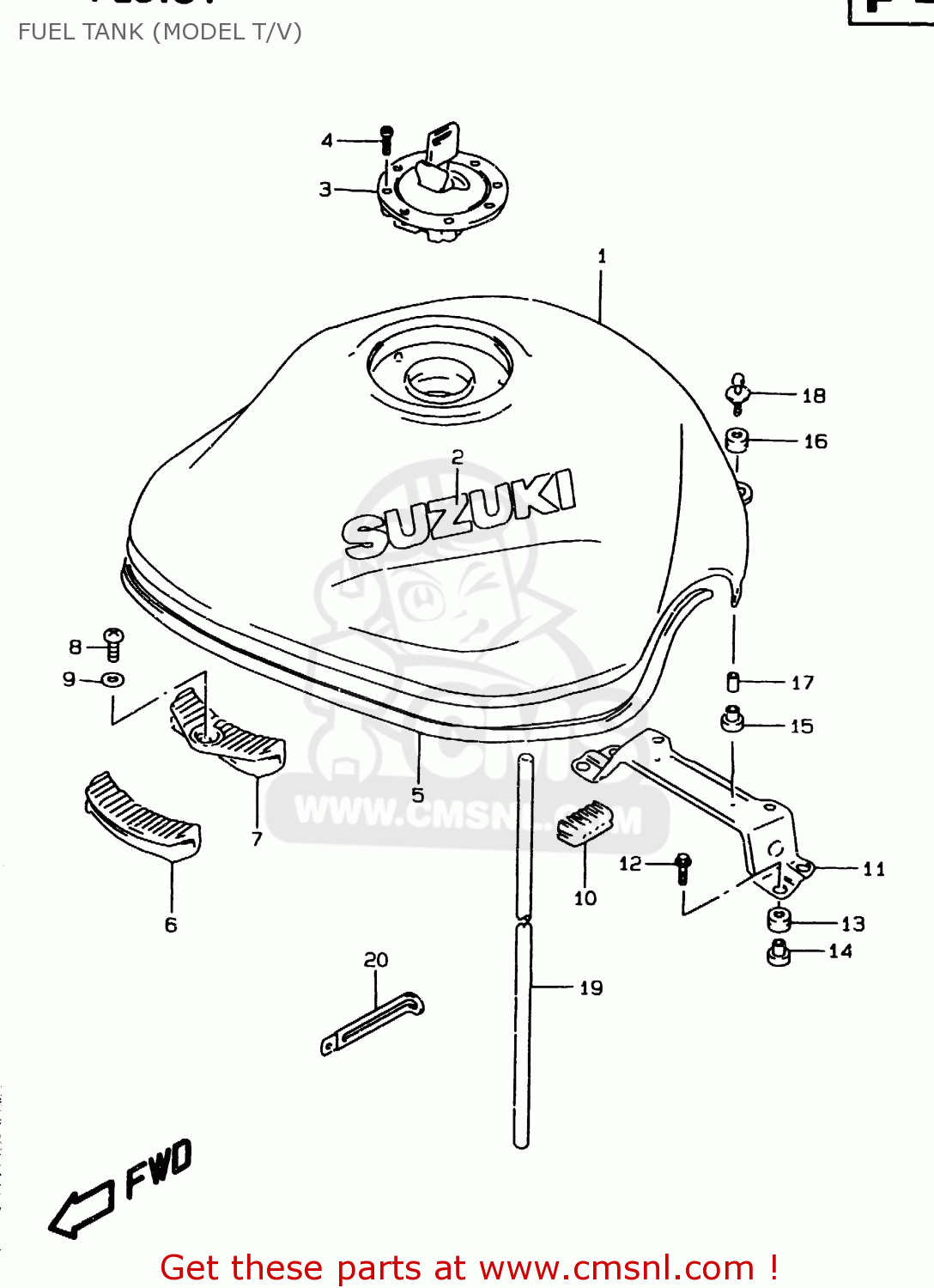

Fuel tank (model t/v) diagram GSF1200SA 1998 (W) (E17 E18 E22 E34)

FUEL TANK (MODEL T/V) GSF1200SA 1998 (W) (E17 E18 E22 E34)

FUEL TANK (MODEL T/V) GSF1200SA 1998 (W) (E17 E18 E22 E34)

prices are in EUR

ref

part #

description

quantity

1

4410026E602KX
ref: 1
MODEL T

TANK ASSY, FUE

€ 795.50

1

4410026E602AX
ref: 1
MODEL T

TANK ASSY, FUE

€ 631.00

1

4410026E60Y98
ref: 1
MODEL T

TANK ASSY, FUEL (GREEN)

€ 654.00

1

4410026E612KX
ref: 1
MODEL V

TANK ASSEMBLY,FUEL (MAROON)

€ 795.50

1

4410026E612AX
ref: 1
MODEL V

TANK ASSEMBLY,FUEL (BLACK)

€ 631.00

1

4410026E61Y0N
ref: 1
MODEL V

TANK ASSEMBLY,FUEL

€ 918.50

2

6811147C001KK
ref: 2

EMBLEM,FUEL TANK

€ 16.00

3

4420101832
ref: 3

CAP SET,FUEL TANK

€ 204.00

4

0910605017
ref: 4

BOLT(5X20)

€ 3.00

5

6824104X5000B
ref: 5

MOLDING

€ 23.00

6

4451134A00
ref: 6
GSF1200T

CUSHION,FUEL TANK FR

€ 15.00

7

4451127E00
ref: 7
GSF1200ST/V/SV/SAV

CUSHION,FUEL TANK FR

€ 11.00

8

0214205103
ref: 8
GSF1200ST/V/SV/SAV

SCREW

€ 2.50

9

0916905012
ref: 9
GSF1200ST/V/SV/SAV

WASHER

€ 3.00

10

4514931300
ref: 10

CUSHION,SEAT(40X20X15)

€ 2.00

11

4453026E00
ref: 11

BRACKET,FUEL TANK RR

€ 35.00

12

0911606146
ref: 12

BOLT(6X25)

€ 2.50

13

0932009009
ref: 13

CUSHION

€ 5.00

14

0916906062
ref: 14

WASHER

€ 3.00

15

0932010038
ref: 15

CUSHION

€ 4.00

16

0932014017
ref: 16

CUSHION

€ 3.00

17

0918006072
ref: 17
MODEL T

SPACER

€ 2.00

17

0918006271
ref: 17
MODEL V

SPACER(6.5X9X18)

€ 2.00

18

0911606172
ref: 18

BOLT(6X30)

€ 2.50

19

093527010300B
ref: 19

HOSE(7X10.2X2000)

€ 17.50

20

0940410417
ref: 20

CLAMP(L:97)

€ 2.50
