OIL PUMP
GSF1200SA 1998 (W) (E17 E18 E22 E34)

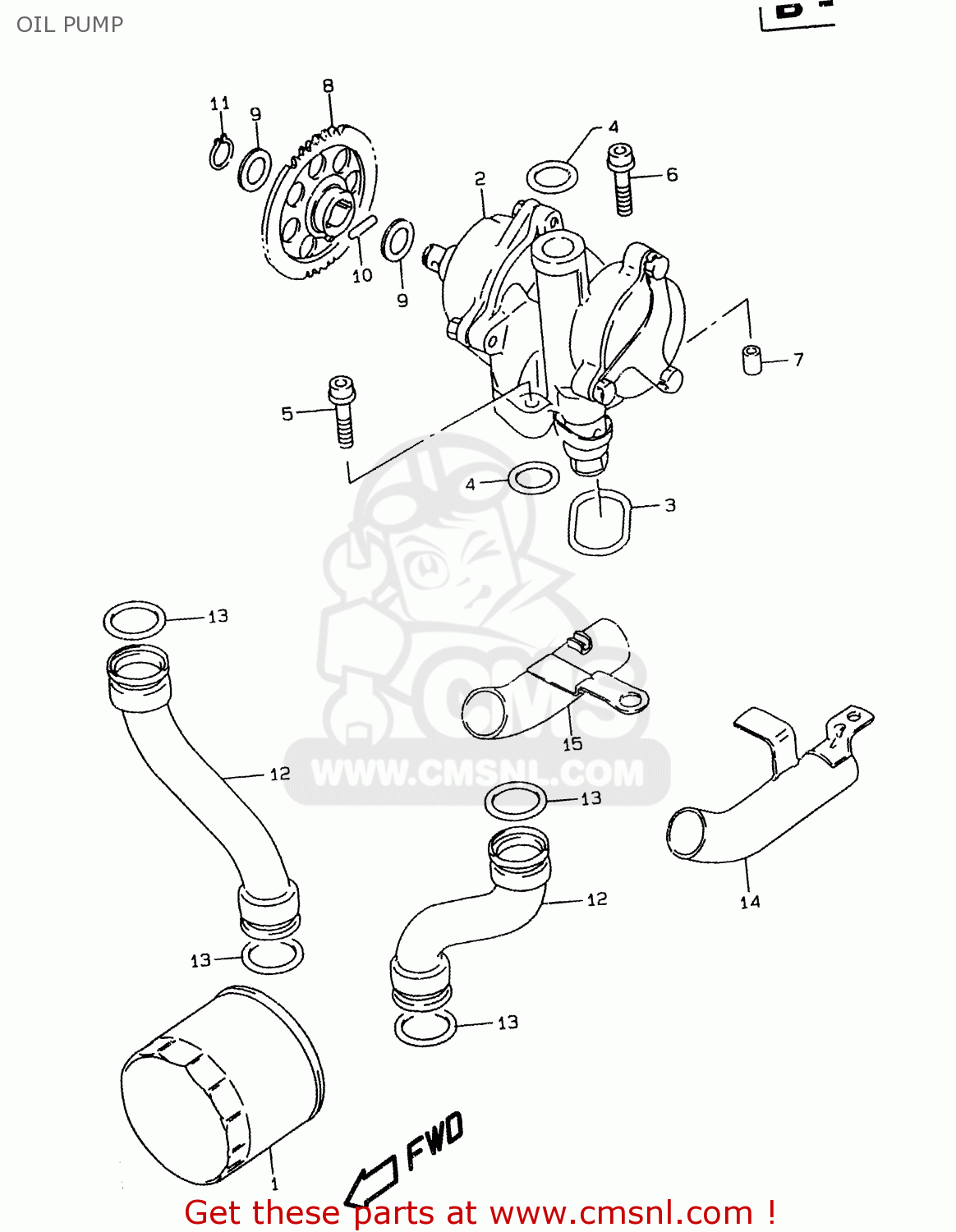

Oil pump diagram GSF1200SA 1998 (W) (E17 E18 E22 E34)
OIL PUMP GSF1200SA 1998 (W) (E17 E18 E22 E34)
×
prices are in EUR
ref
part #
description
quantity
1
1651006B01
ref: 1
MODEL T/V
FILTER ASSEMBLY,ENGINE OIL
€ 12.50
1
1651034E00
ref: 1
MODEL W/X
FILTER ASSEMBLY,ENGINE OIL
€ 12.50
2
1640006B20
ref: 2
PUMP ASSY,OIL
€ 348.50
3
1649127A01
ref: 3
O RING,OIL PUMP
€ 13.50
4
0928018009
ref: 4
O RING(D:3.2,ID:17.8)
€ 8.00
5
0713006303
ref: 5
MODEL T/V/W
BOLT
€ 3.00
5
0910606089
ref: 5
MODEL X
BOLT(6X30)
€ 4.00
6
0713006353
ref: 6
MODEL T/V/W
BOLT
€ 3.50
6
0910606088
ref: 6
MODEL X
BOLT(6X35)
€ 2.50
7
0421109129
ref: 7
PIN
€ 2.00
8
1633219C00
ref: 8
GEAR,OIL PUMP DRIVEN(NT:37)
€ 60.00
9
0822112205
ref: 9
SHIM
€ 1.50
10
0926105006
ref: 10
PIN(5X18)
€ 1.50
11
0833131126
ref: 11
CIRCLIP,12 MM
€ 2.00
12
1648148B01
ref: 12
PIPE,OIL OUTLET
€ 46.00
13
0928022016
ref: 13
O RING(D:3.7,ID:21.7)
€ 5.50
14
1653027A02
ref: 14
PIPE,OIL OUTLET UNDER,L
€ 22.00
15
1654027A02
ref: 15
PIPE,OIL OUTLET UNDER,R
€ 23.00
