SPEEDOMETER
GSF1200SA 1998 (W) (E17 E18 E22 E34)

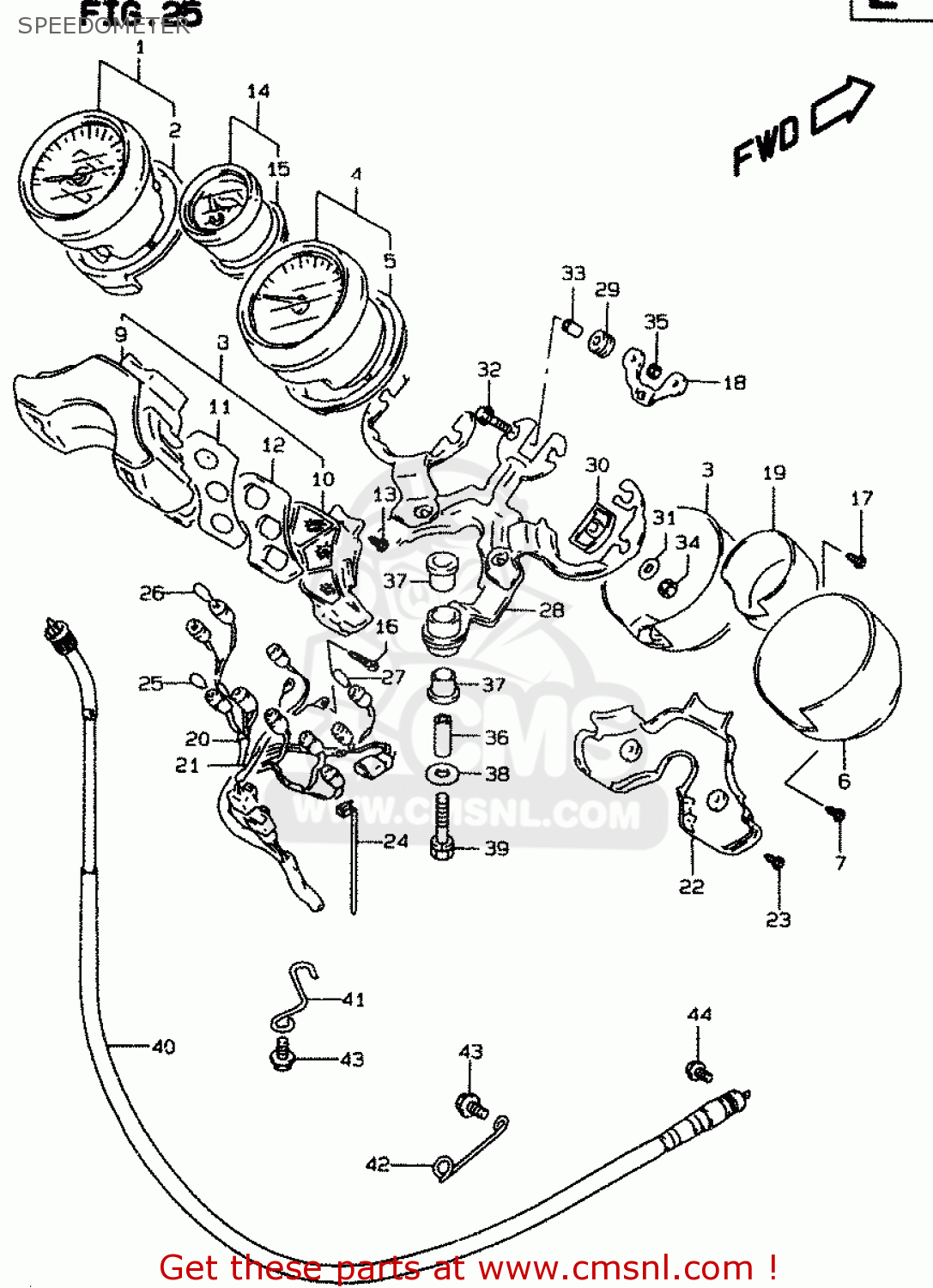

Speedometer diagram GSF1200SA 1998 (W) (E17 E18 E22 E34)
SPEEDOMETER GSF1200SA 1998 (W) (E17 E18 E22 E34)
×
prices are in EUR
ref
part #
description
quantity
1
3411026D21
ref: 1
SPEEDOMETER
€ 354.50
1
3411026D11
ref: 1
E4, E17, E18, E22, E
SPEEDOMETER
€ 390.50
2
3416126D00
ref: 2
DAMPER
€ 4.00
3
3411126D01
ref: 3
COVER,SPEEDOMETER
€ 69.00
4
3421027E00
ref: 4
TACHOMETER
€ 431.00
5
3416126D00
ref: 5
DAMPER
€ 4.00
6
3421126D01
ref: 6
COVER,TACHOMETER
€ 69.00
7
0354114123
ref: 7
SCREW
€ 2.00
8
3638027E00
ref: 8
GSF1200T/V/W/X/ST/SV
BOX,PILOT
€ 129.50
8
3638026D30
ref: 8
GSF1200T/V/W/X/ST/SV
PILOT BOX ASSY
€ 129.50
8
3638027E60
ref: 8
GSF1200SAV/SAX, E2
PILOT BOX ASSY
€ 133.50
8
3638027EC0
ref: 8
GSF1200SAV/SAW/SAX,
BOX, PILOT
€ 117.00
9
3638126D00
ref: 9
CASE,UPR
€ 54.00
10
3638226D20
ref: 10
GSF1200T/V/X/W/ST/SV
LWR CASE
€ 43.50
10
3638226D10
ref: 10
GSF1200T/V/W/X/ST/SV
LWR CASE
€ 44.00
10
3638227E60
ref: 10
GSF1200SAV/SAX, E2
LWR CASE,PILOT
€ 41.50
10
3638227EC0
ref: 10
2GSF1200SAV/SAW/SAX,
LOWER CSE
€ 46.50
11
3639327E00
ref: 11
GSF1200T/V/W/X/ST/S/
PANEL
€ 19.00
11
3639327E60
ref: 11
GSF1200SAV/SAW/SAX
PANEL
€ 21.50
12
3639627E00
ref: 12
GASKET
€ 10.50
13
3418412B00
ref: 13
SCREW
€ 1.50
14
3441027E00
ref: 14
FUEL,METER
€ 175.00
15
3416126D20
ref: 15
DAMPER
€ 18.50
16
3438309400
ref: 16
SCREW(3X22)
€ 2.50
17
0211274103
ref: 17
SCREW
€ 2.00
18
3431326D20
ref: 18
PLATE,SET
€ 17.00
19
3431126D01
ref: 19
COVER,FUEL METER
€ 47.00
20
3417027E20
ref: 20
GSF1200T/V/W/X/ST/SV
SOCKET,METER
€ 61.00
20
3417027EA0
ref: 20
GSF1200SAV/SAW/SAX
CORD ASSEMBLY
€ 48.00
21
3417027E10
ref: 21
SOCKET,FUEL METER
€ 37.00
22
3638326D00
ref: 22
COVER,PILOT BOX
€ 21.00
23
0351204149
ref: 23
SCREW
€ 1.50
24
3638545300
ref: 24
CLAMP
€ 4.50
25
0947112103
ref: 25
BULB(12V3W,T6.5)
€ 2.50
26
0947112108
ref: 26
BULB(12V1.7W,T6.5)
€ 2.00
27
0947112077
ref: 27
BULB(12V1.7W,T10,WB121)
€ 1.00
28
3495026D20
ref: 28
BRACKET,METER
€ 136.50
29
3419126D10
ref: 29
DAMPER
€ 11.50
30
3419126D20
ref: 30
DAMPER
€ 8.50
31
0916005013
ref: 31
WASHER(5.2X16X1)
€ 1.50
32
3418526D00
ref: 32
WASHER,FUEL,METER
€ 2.50
33
3418726D00
ref: 33
SPACER,FUEL METER
€ 3.00
34
0831000057
ref: 34
NUT
€ 2.50
35
0831000047
ref: 35
NUT
€ 2.00
36
0930308002
ref: 36
BUSH(L:31)
€ 6.00
37
0932012024
ref: 37
CUSHION
€ 2.00
38
0916008133
ref: 38
WASHER (8.5X26X1.6)
€ 2.00
39
0155008453
ref: 39
BOLT
€ 3.00
40
3491027E01
ref: 40
CABLE ASSY,SPEEDOMETER
€ 97.00
41
3493827E00
ref: 41
GUIDE,SPEEDOMETER CABLE NO.1
€ 6.50
42
3493917D00
ref: 42
GUIDE,SPEEDOMETER CABLE NO.3
€ 5.50
43
0155006123
ref: 43
BOLT
€ 2.50
44
0211205163
ref: 44
SCREW
€ 2.00
