FRAME (GSF1200X/SX)

GSF1200SA 1998 (W) (E17 E18 E22 E34)

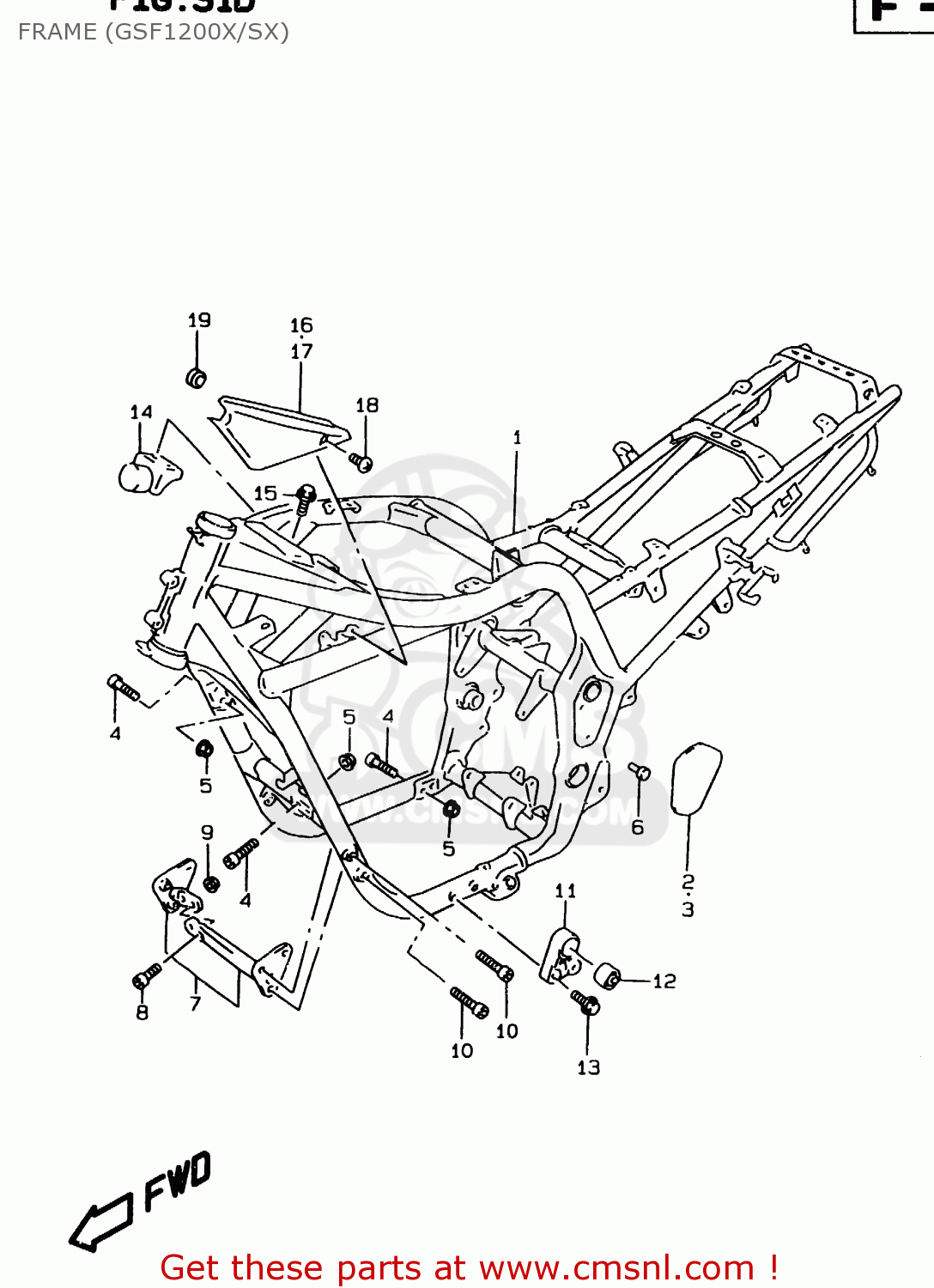

Frame (gsf1200x/sx) diagram GSF1200SA 1998 (W) (E17 E18 E22 E34)

FRAME (GSF1200X/SX) GSF1200SA 1998 (W) (E17 E18 E22 E34)

FRAME (GSF1200X/SX) GSF1200SA 1998 (W) (E17 E18 E22 E34)

prices are in EUR

ref

part #

description

quantity

1

4110027E6122U
ref: 1

FRAME(MAROON)

€ 2,481.50

1

4110027E6133J
ref: 1

FRAME(BLACK)

€ 1,317.00

1

4110027E61Y7F
ref: 1

FRAME (BROWN)

€ 1,317.00

1

4110027E61Y7G
ref: 1

FRAME(GREEN)

€ 1,905.00

1

4110027E4122U
ref: 1
GSF1200X E18

FRAME (MAROON)

€ 0.00

1

4110027E4133J
ref: 1
GSF1200X E18

FRAME(BLACK)

€ 0.00

1

4110027E41Y7F
ref: 1
GSF1200X E18

FRAME (BROWN)

€ 0.00

1

4110027E41Y7G
ref: 1
GSF1200X E18

FRAME (GREEN)

€ 0.00

1

4110027E7122U
ref: 1
GSF1200SX E18

FRAME(MAROON)

€ 0.00

1

4110027E7133J
ref: 1
GSF1200SX E18

FRAME(BLACK)

€ 2,747.00

1

4110027E71Y7F
ref: 1
GSF1200SX E18

FRAME (BROWN)

€ 2,747.00

1

4110027E71Y7G
ref: 1
GSF1200SX E18

FRAME (GREEN)

€ 2,747.00

2

4163926E00
ref: 2

COVER,FRAME BODY,R

€ 12.50

3

4164926E00
ref: 3

COVER,FRAME BODY,L

€ 12.50

4

0910610019
ref: 4

BOLT(10X33)

€ 4.00

5

0831931103
ref: 5

NUT

€ 3.00

6

0940907329
ref: 6

CLIP

€ 3.00

7

4190027E0022U
ref: 7

PLATE ASSEMBLY,ENGINE MOUNT

€ 118.50

7

4190027E0033J
ref: 7

PLATE ASSEMBLY,ENGINE MOUNT

€ 111.00

7

4190027E00Y7F
ref: 7

PLATE,ENGINE MOUNTING NO.1 (B

€ 111.00

7

4190027E00Y7G
ref: 7

PLATE,ENGINE MOUNTING NO.1 (G

€ 111.00

8

0712010303
ref: 8

BOLT

€ 4.00

9

0831931103
ref: 9

NUT

€ 3.00

10

0713008503
ref: 10

BOLT

€ 3.50

11

4193127E50
ref: 11

BRACKET,ENGINE MOUNTING NO.2

€ 74.00

12

4193227E50
ref: 12

BUSH,ENG MOUNTING NO.2

€ 19.00

13

0712008253
ref: 13

BOLT

€ 2.50

14

4255027E50
ref: 14

DAMPER COMP,FRAME

€ 52.00

15

0155006123
ref: 15

BOLT

€ 2.50

16

4751126E00291
ref: 16

COVER,FRAME HEAD,R

€ 15.50

17

4752126E00291
ref: 17

COVER,FRAME HEAD,L

€ 22.00

18

0913905021
ref: 18

SCREW(5X12)

€ 2.00

19

0932008013
ref: 19

CUSHION

€ 4.00
