CYLINDER HEAD COVER

GSF1200SA 1998 (W) (E17 E18 E22 E34)

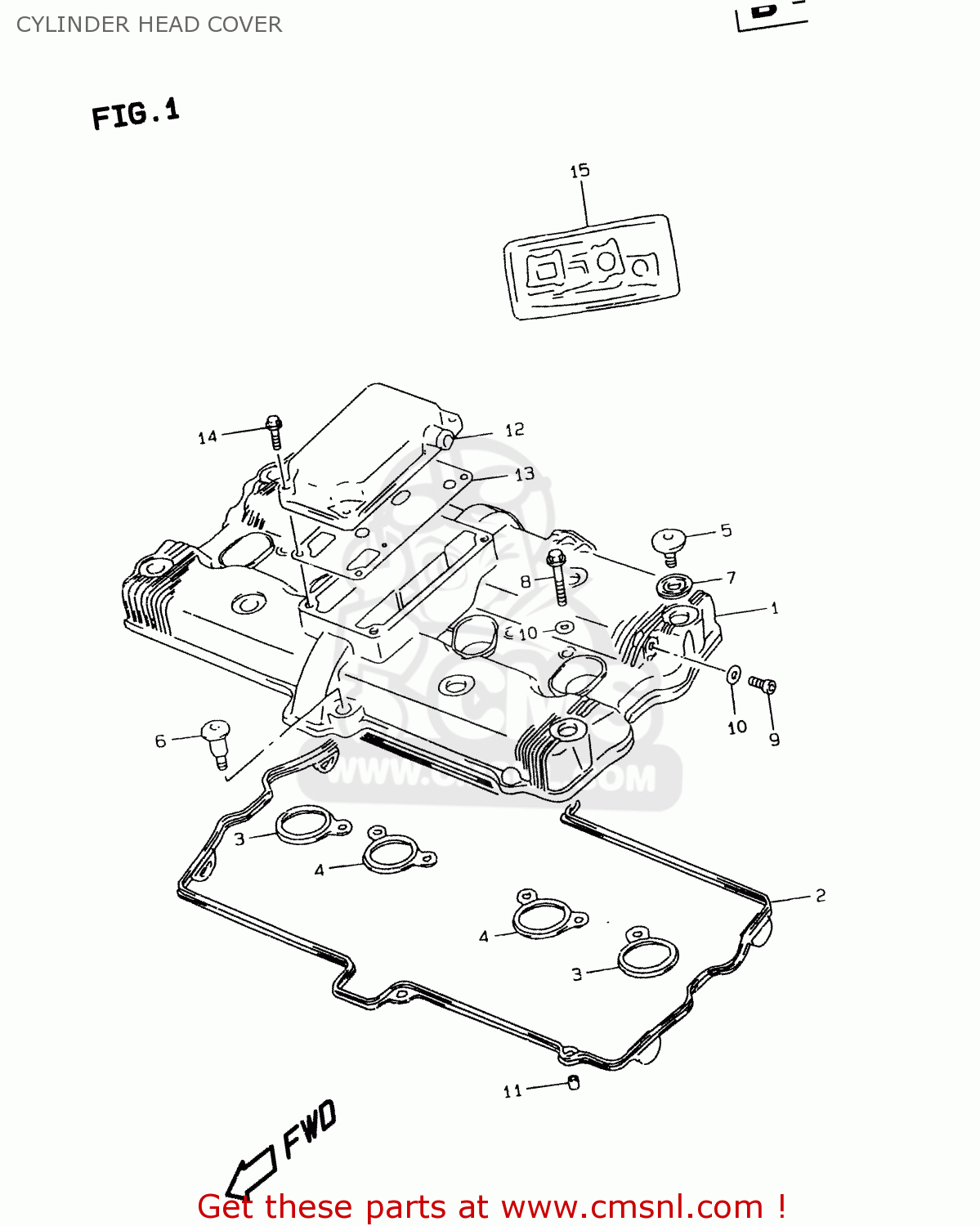

Cylinder head cover diagram GSF1200SA 1998 (W) (E17 E18 E22 E34)

prices are in EUR

ref

part #

description

quantity

1117127E00
ref: 1

COVER,CYLINDER HEAD

€ 657.50

1117306B02
ref: 2

GASKET,CYLINDER HEAD COVER (NAS)

€ 34.50

1117827A01
ref: 3

GASKET,HEAD COVER NO.2 (NAS)

€ 5.50

1117927A02
ref: 4

GASKET,HEAD COVER NO.3 (NAS)

€ 7.50

0910607009
ref: 5

BOLT(7X17.5)

€ 4.50

0910607010
ref: 6

BOLT(7X31)

€ 4.50

0916111008
ref: 7

WASHER(10.6X25.5X2.3)

€ 4.50

0936008009
ref: 8

BOLT,UNION 8X35

€ 26.50

0713008123
ref: 9

PLUG

€ 2.50

0916808008
ref: 10

GASKET 8.2X14X1 (NAS)

€ 1.00

0422108129
ref: 11

PIN

€ 2.00

1117626D00
ref: 12

COVER,BREATHER

€ 35.50

1117717E00
ref: 13

GASKET,BREATHER COVER

€ 12.50

0155006253
ref: 14

BOLT

€ 2.50

1140127831
ref: 15

GASKET SET (NAS)

€ 300.00
