prices are in EUR

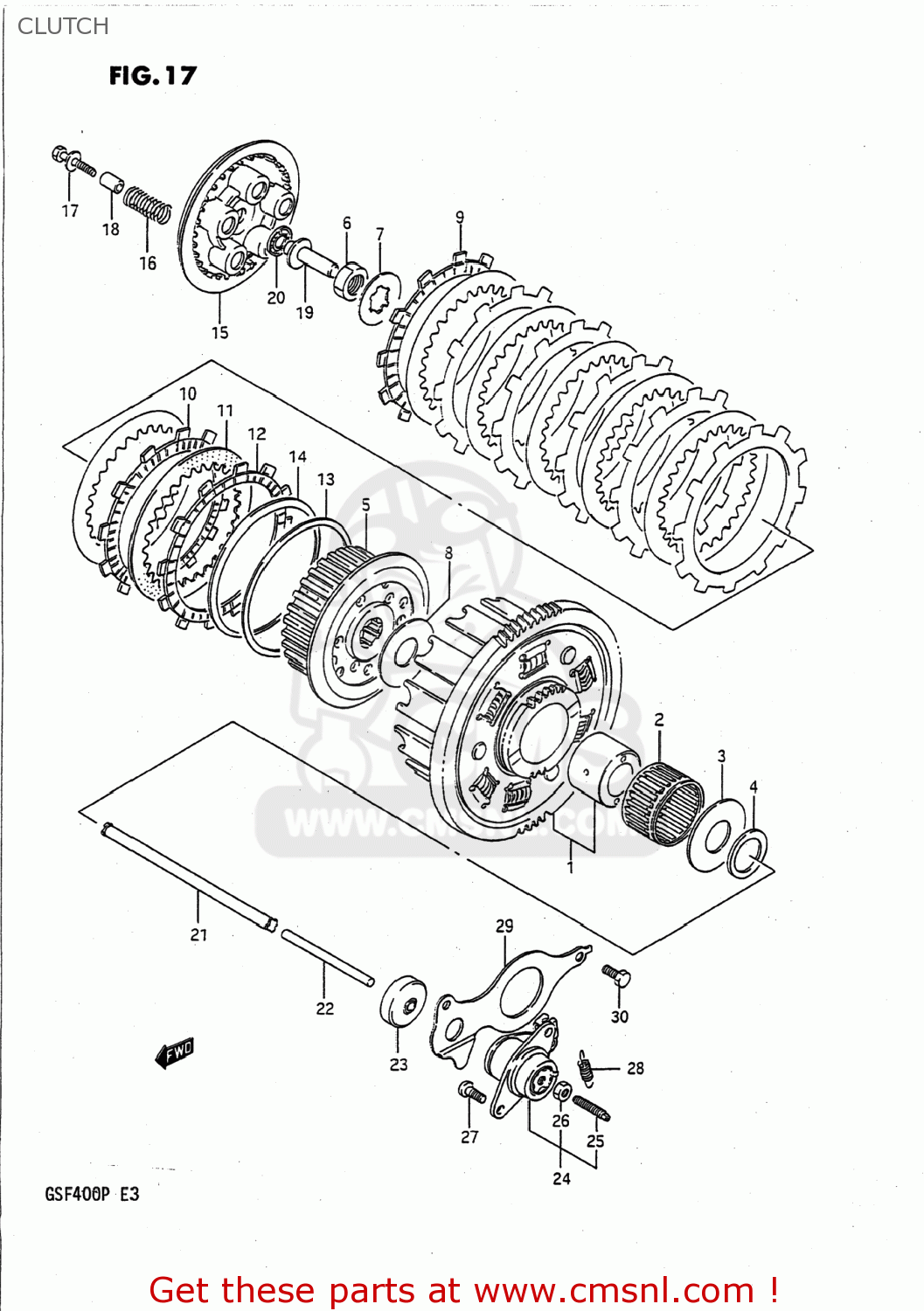

ref
part #
description
quantity
1-1
GEAR ASSEMBLY,PRIMARY DRIVE
1-1
GEAR ASSEMBLY,PRIMARY DRIVE
1-2
GEAR ASSEMBLY,PRIMARY DRIVE
1-2
GEAR ASSEMBLY,PRIMARY DRIVE
2
BEARING(37X42X27)
3
WASHER,22X50X2.5
4
WASHER(22X32X3)
5
HUB,CLUTCH SLEEVE
6
NUT
7
WASHER,LOCK
8
WASHER(20X50X2)
9-1
PLATE,CLUTCH DRIVE (NAS)
9-2
PLATE,CLUTCH DRIVE(T:3.0) (NAS)
10
PLATE,CLUTCH DRIVE (NAS)
11
PLATE,CLUTCH DRIVEN (NAS)
12-1
PLATE,CLUTCH DRIVE (NAS)
12-2
PLATE,CLUTCH DRIVE (NAS)
13
SEAT,WAVE WASHER
14
WASHER
16
SPRING
17
BOLT(5X40)
19
PIECE,CLUTCH PUSH
20
BEARING(10X22X2.8)
21-1
ROD,CLUTCH PUSH
21-2
ROD,CLUTCH PUSH
22
ROD,CLUTCH PUSH,L
23
SEAL,OIL(6X34X7.5)
24
SCREW ASSY,CLUTCH RELEASE
25
SCREW(6X25)
26
NUT 6MM
27
SCREW 6X12
28
SPRING
30
BOLT
