STEERING STEM

GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)

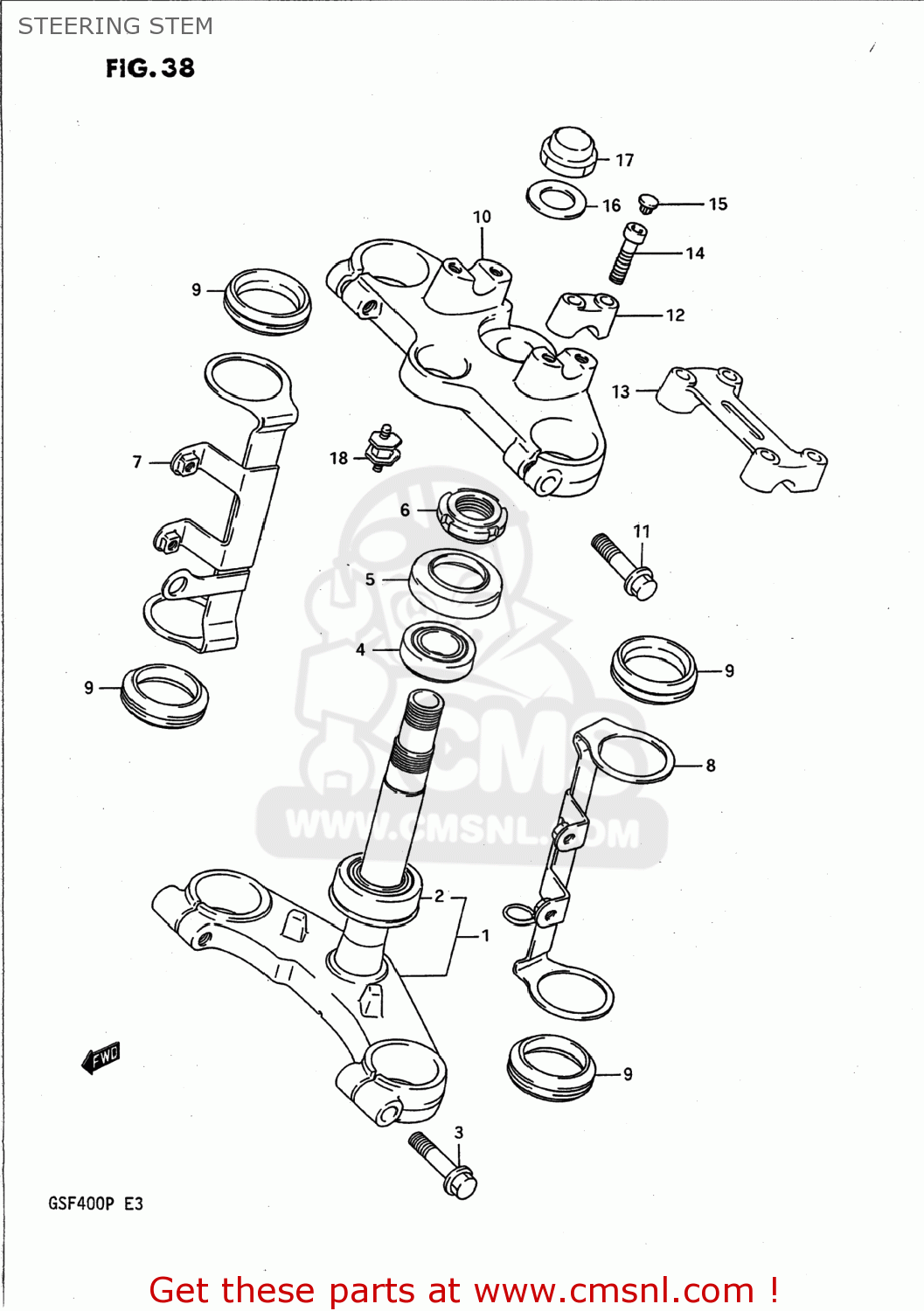

Steering stem diagram GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)

STEERING STEM GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)
STEERING STEM GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)
STEERING STEM GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1-1
5141010D010FP
ref: 1-1
51410-10DB2
STEM,STEERING
5141010D010FP
€ 440.50
1-2
5141010DB00FP
ref: 1-2
51410-10DB2
STEM,STEERING
€ 440.50
1-3
5141010DB2
ref: 1-3
STEM,STEERING
€ 440.50
2
0926530009
ref: 2
BEARING(30X55X17)
0926530009
€ 49.50
3
0151710458
ref: 3
01550-1045B
BOLT 10X45
€ 3.00
4
0926525008
ref: 4
09265-25019
TAPER,ROLLER BEARING
0926525008
€ 48.50
5-1
5164340502
ref: 5-1
DUST SEAL,STEERING UPR
5164340502
€ 8.00
5-2
5164349001
ref: 5-2
51643-49002
DUST SEAL,STEERING,UPPER
5164349001
€ 7.50
6
5163128000
ref: 6
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
7
5153010D20
ref: 7
BRACKET,HEADLAMP HOUSING,R
5153010D20
€ 39.00
8
5154010D20
ref: 8
BRACKET,HEADLAMP HOUSING,L
5154010D20
€ 39.00
9
5155338C00
ref: 9
DAMPER,HEADLAMP HSG BRACKET
5155338C00
€ 8.50
10
5131111D10
ref: 10
HEAD,STEERING STEM
5131111D10
€ 289.50
11
0151710458
ref: 11
01550-1045B
BOLT 10X45
€ 3.00
12
5621111D100FP
ref: 12
HOLDER,HANDLE UPR
5621111D100FP
€ 16.00
13
5621110DE00FP
ref: 13
HOLDER,HANDLE
€ 52.00
14
0711008307
ref: 14
07130-08307
BOLT, LH
€ 4.50
15
0925006011
ref: 15
CAP(OD:11)
0925006011
€ 2.50
16
5135606C00
ref: 16
51356-10D03
WASHER,UPPER
€ 3.00
17
5135324B00
ref: 17
NUT,CAP
5135324B00
€ 21.50
18
1778810D00
ref: 18
BOLT,SPEEDOMETER CUSHION
1778810D00
€ 8.50
