CYLINDER HEAD

GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)

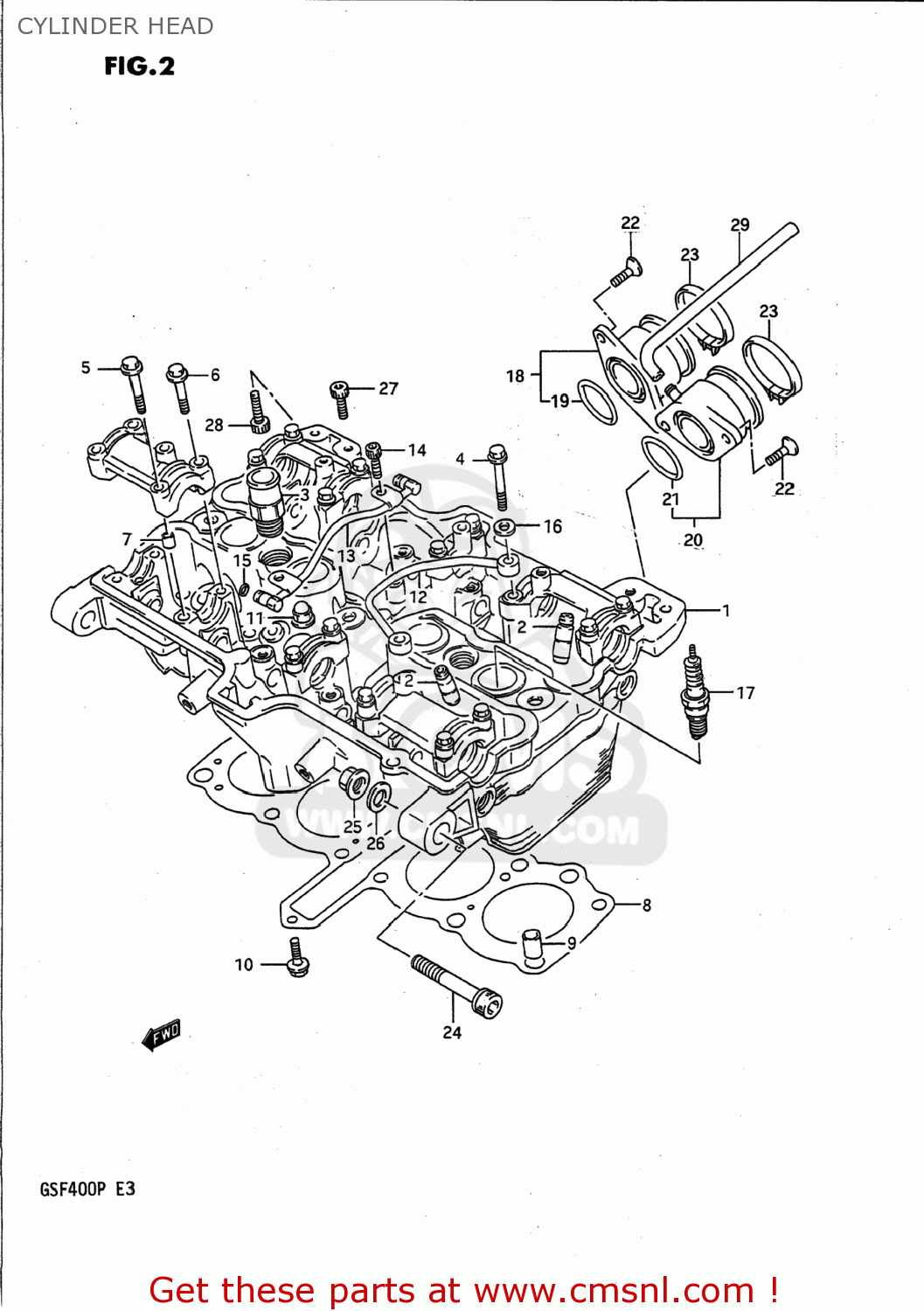

Cylinder head diagram GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)

CYLINDER HEAD GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)
CYLINDER HEAD GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)
CYLINDER HEAD GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1-1
1110010D00
ref: 1-1
11100-10D01
HEAD ASSEMBLY,CYLINDER
1110010D00
€ 1,891.00
1-2
1110010D01
ref: 1-2
HEAD ASSEMBLY,CYLINDER
€ 1,891.00
2
1111532C70
ref: 2
11115-32C71
GUIDE,VALVE
1111532C70
€ 17.50
3-1
1118132C03
ref: 3-1
11181-32C04
UNION,WATER HOSE
€ 22.00
3-2
1118132C04
ref: 3-2
UNION,WATER HOSE
1118132C04
€ 22.00
4
0910306013
ref: 4
09103-06165
BOLT
€ 2.50
5
0910306026
ref: 5
BOLT(6X39)
0910306026
€ 2.00
6
0910306108
ref: 6
BOLT(6X35)
0910306108
€ 2.00
7
0920608001
ref: 7
PIN(6.2X8X11)
0920608001
€ 2.00
8
1114132C01
ref: 8
11141-32C10
GASKET,CYLINDER HEAD (NAS)
1114132C01
€ 49.00
9
0421111189
ref: 9
PIN
0421111189
€ 2.00
10
0151706254
ref: 10
01550-0625A
BOLT
€ 2.50
11
0831321087
ref: 11
08313-20087
NUT 8MM
€ 2.50
12
1296130B01
ref: 12
PIPE,OIL CYLINDER HEAD,L
1296130B01
€ 43.00
13
1296130B10
ref: 13
PIPE,OIL CYLINDER HEAD
€ 17.00
14
0711006126
ref: 14
07130-0612A
BOLT,STRANGER
€ 2.00
15
0928005004
ref: 15
O RING(D:1.9,ID:4.8)
0928005004
€ 2.00
16
0832221066
ref: 16
08322-0106B
WASHER, LOWER
0832221066
€ 2.00
17-1
0948200412
ref: 17-1
PLUG,SPARK(CR8EK)
0948200412
€ 11.00
17-10
0948200463
ref: 17-10
PLUG,SPARK(U31ETR)
0948200463
€ 10.50
17-2
0948200413
ref: 17-2
PLUG,SPARK(U24ETR)
0948200413
€ 11.00
17-3
0948200410
ref: 17-3
PLUG,SPARK(CR9EK)
0948200410
€ 10.50
17-4
0948200411
ref: 17-4
09482-00459
PLUG,SPARK(U27ETR)
€ 8.50
17-5
0948200410
ref: 17-5
PLUG,SPARK(CR9EK)
0948200410
€ 10.50
17-6
0948200414
ref: 17-6
PLUG,SPARK(CR7EK)
0948200414
€ 12.50
17-7
0948200411
ref: 17-7
09482-00459
PLUG,SPARK(U27ETR)
€ 8.50
17-8
0948200415
ref: 17-8
PLUG,SPARK(U22ETR)
€ 13.50
17-9
0948200462
ref: 17-9
PLUG,SPARK(CR10EK)
0948200462
€ 10.50
18
1310110D00
ref: 18
PIPE ASSY,INTAKE
1310110D00
€ 46.50
19
0928036002
ref: 19
09280-36004
O-RING
0928036002
€ 11.50
20
1310210D00
ref: 20
PIPE ASSY,INTAKE NO.2
1310210D00
€ 50.50
21
0928036002
ref: 21
09280-36004
O-RING
0928036002
€ 11.50
22
0912606014
ref: 22
SCREW(6X16)
0912606014
€ 2.00
23
0940248208
ref: 23
CLAMP
0940248208
€ 4.50
24
0711010707
ref: 24
BOLT
€ 4.50
25
0915910044
ref: 25
09159-10115
NUT (10MM)
€ 4.00
26
0916010005
ref: 26
WASHER(10.5X20X3.2)
0916010005
€ 2.00
27
0713008255
ref: 27
07130-0825B
BOLT
€ 3.50
28-1
0711008305
ref: 28-1
07130-0830A
BOLT, REAR (8X30)
0711008305
€ 3.00
28-2
0713008255
ref: 28-2
07130-0825B
BOLT
€ 3.50
29-1
0935250823300
ref: 29-1
44420-44AR0
HOSE
0935250823300
€ 13.00
29-1
0935250823300
ref: 29-1
44420-44AR0
HOSE
0935250823300
€ 13.00
29-2
0935450103300
ref: 29-2
44421-13ER0
HOSE
0935450103300
€ 7.50
29-2
0935450103300
ref: 29-2
44421-13ER0
HOSE
0935450103300
€ 7.50
