OIL PAN-OIL PUMP

GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)

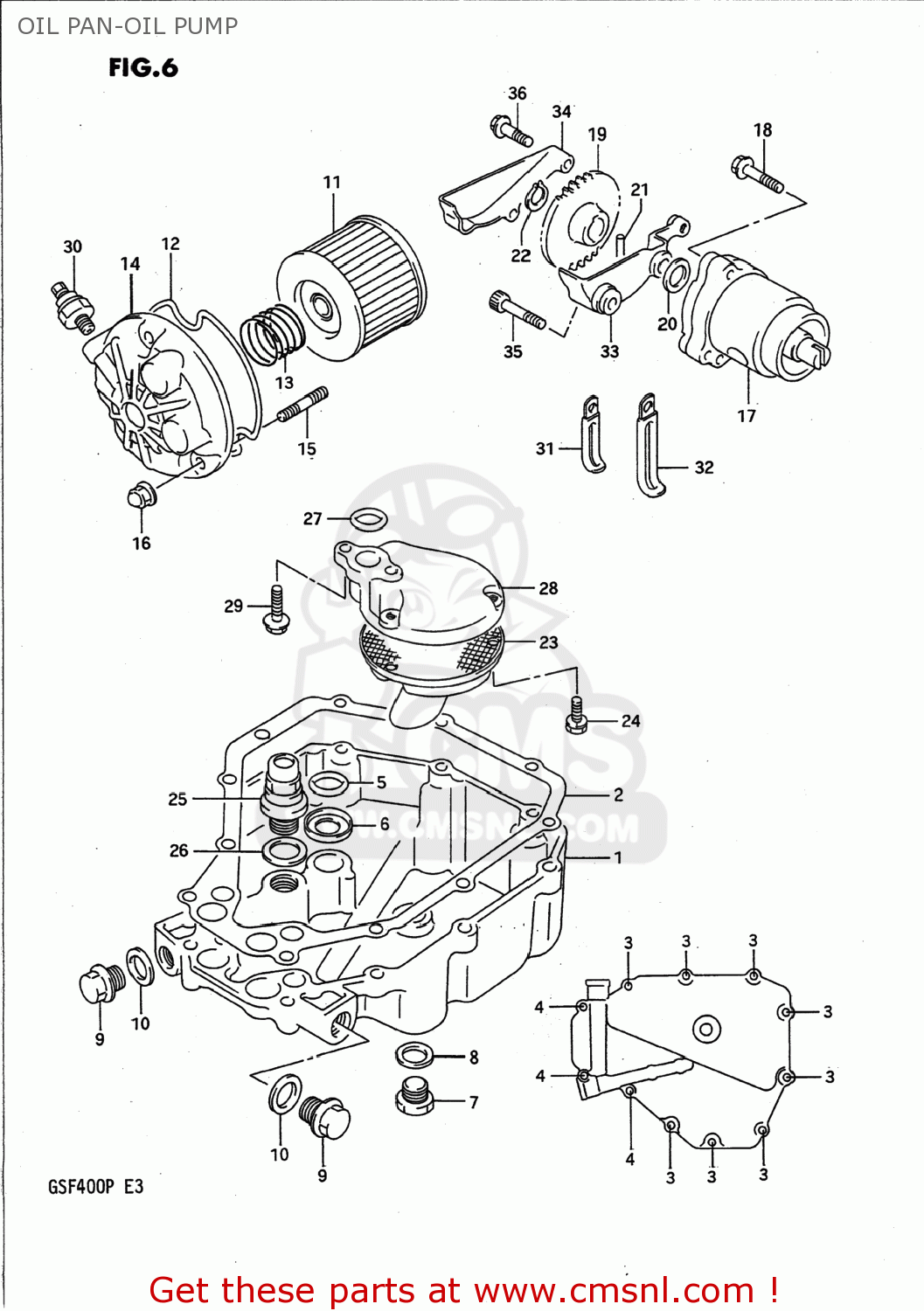

Oil pan-oil pump diagram GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)

OIL PAN-OIL PUMP GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)
OIL PAN-OIL PUMP GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)
OIL PAN-OIL PUMP GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
1151110D00
ref: 1
PAN,OIL
1151110D00
€ 89.50
2-1
1148932C00
ref: 2-1
11489-32C10
GASKET,OIL PAN (NAS)
€ 17.50
2-2
1148932C10
ref: 2-2
GASKET,OIL PAN(ASB) (NAS)
1148932C10
€ 17.50
3
0154706254
ref: 3
01547-0625B
BOLT 6X25
0154706254
€ 2.50
4
0154706304
ref: 4
01547-06307
BOLT 6X30
0154706304
€ 2.50
5
0928016008
ref: 5
O RING(D:3.2,ID:15.8)
0928016008
€ 1.50
6
1652930B00
ref: 6
GASKET,OIL OUTLET (NAS)
1652930B00
€ 5.00
7
0924714001
ref: 7
09247-14002
PLUG
0924714001
€ 5.00
8
0916814004
ref: 8
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
9
0924714015
ref: 9
PLUG(14X12)
0924714015
€ 2.50
10
0916814004
ref: 10
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
11
1651045040
ref: 11
FILTER ASSY,ENGINE OIL
1651045040
€ 7.50
12
1651845000
ref: 12
O RING,OIL FILTER CHAMBER CAP
1651845000
€ 7.50
13
0944032004
ref: 13
SPRING
0944032004
€ 13.50
14
1651210D00
ref: 14
CAP,FILTER
1651210D00
€ 21.00
15
0142106208
ref: 15
01421-0620A
STUD 6X20
0142106208
€ 2.50
16
0831321064
ref: 16
08313-2006A
NUT 6MM
€ 2.00
17
1640032C00
ref: 17
PUMP ASSY,ENGINE OIL
1640032C00
€ 152.00
18
0151706307
ref: 18
01550-06307
BOLT
0151706307
€ 2.00
19
1633130B00
ref: 19
GEAR,OIL PUMP DRIVEN
€ 36.00
20
0822112205
ref: 20
SHIM
0822112205
€ 1.50
21
0926105006
ref: 21
PIN(5X18)
0926105006
€ 1.50
22
0833131126
ref: 22
08331-3112A
CIRCLIP,12 MM
0833131126
€ 2.00
23
1652010D00
ref: 23
STRAINER,ENGINE OIL
€ 19.50
24
0113706128
ref: 24
01570-06127
BOLT
€ 2.50
25
1644027A01
ref: 25
VALVE ASSY,OIL RELIEF
1644027A01
€ 42.00
26
0916816002
ref: 26
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
27
0928016008
ref: 27
O RING(D:3.2,ID:15.8)
0928016008
€ 1.50
28
1652530B00
ref: 28
PROTECTOR,OIL STRAINER
€ 17.00
29
0151706207
ref: 29
01550-06207
BOLT 6X20
€ 2.50
30-1
3782033200
ref: 30-1
37820-33D10
SWITCH ASSEMBLY
3782033200
€ 29.00
30-2
3782033D00
ref: 30-2
37820-33D10
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
31
0940406422
ref: 31
09404-06429
CLAMP
€ 2.50
32
0940408402
ref: 32
09404-08420
CLAMP
0940408402
€ 3.50
33
1132332C00
ref: 33
CASE,OIL SEPARATOR
€ 16.50
34
1132432C00
ref: 34
CAP,OIL SEPARATOR
€ 10.00
35
0711006357
ref: 35
07130-06357
BOLT
€ 3.50
36
0151705258
ref: 36
01550-0525A
BOLT
€ 1.50
