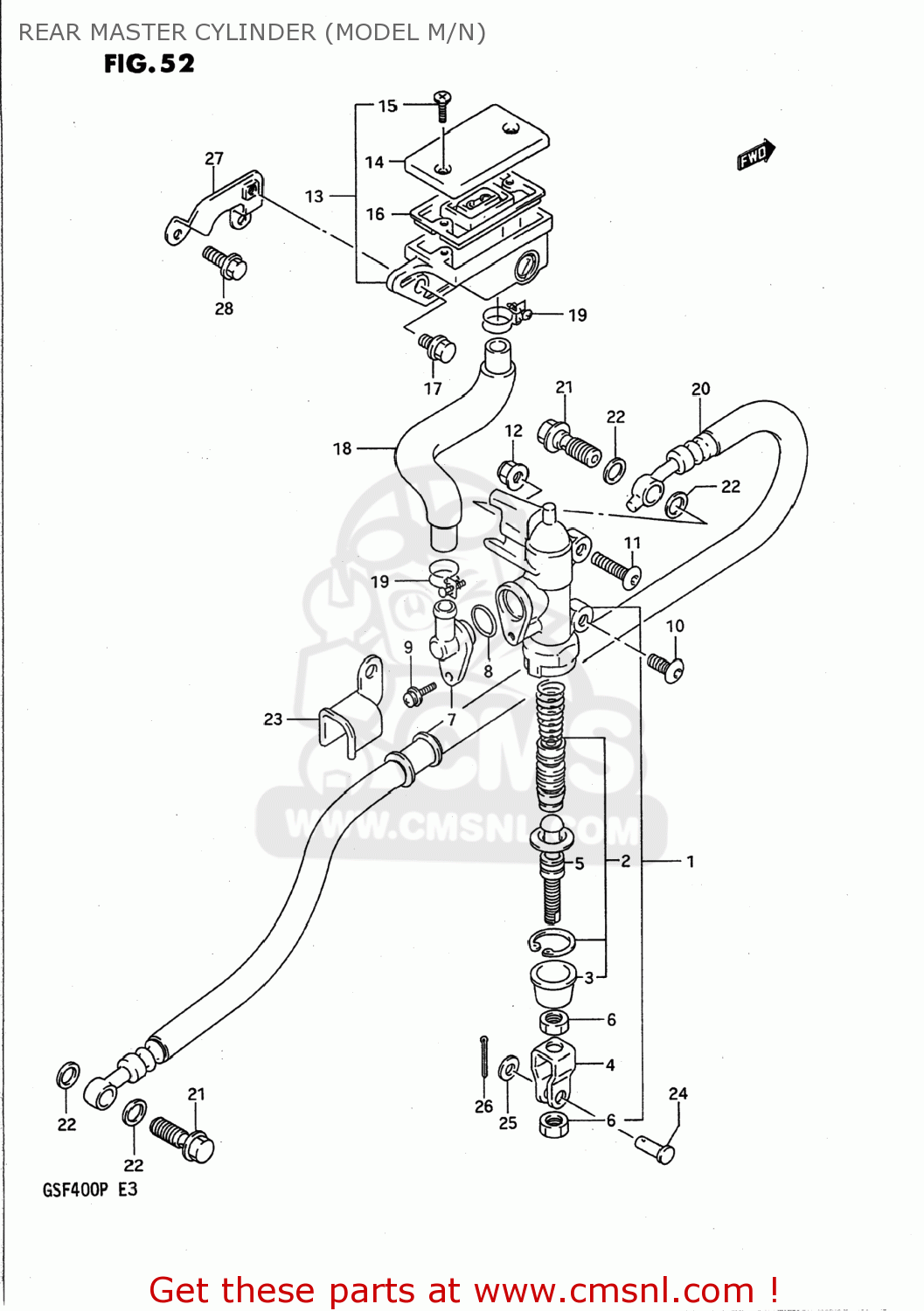

REAR MASTER CYLINDER (MODEL M/N)

ref

part #

description

quantity

1

6960010D01
ref: 1

CYLINDER ASSY,RR MASTER

€ 148.00

2

6960004820
ref: 2

PISTON/CUP SET

€ 31.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969227A30
ref: 4

YOKE

€ 12.50

5

6967010D01
ref: 5

ROD,PUSH

€ 17.00

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967205A00
ref: 7

CONNECTOR

€ 4.50

8

6968634200
ref: 8

O RING

€ 3.50

9

0211274125
ref: 9
02112-7412A

SCREW

€ 2.50

10

0913906030
ref: 10

SCREW(6X16)

€ 3.50

11

0913906042
ref: 11

SCREW(6X30)

€ 7.50

12

0831931067
ref: 12

NUT

€ 2.50

13

6974010D00
ref: 13

TANK ASSY,RR RESERVOIR

€ 84.00

14

5966934C00
ref: 14
59669-41C00

CAP

€ 30.00

15

6968949300
ref: 15

SCREW

€ 1.50

16

5966749460
ref: 16

5966749460

17

0151706125
ref: 17
01550-0612A

BOLT 6X12

€ 2.50

18

6973110D00
ref: 18

HOSE,RESERVOIR TANK

€ 17.50

19

0940016306
ref: 19

CLAMP

€ 4.50

20

6948010D00
ref: 20
69480-10D10

HOSE,REAR BRAKE

€ 98.50

21

0936010017
ref: 21

BOLT UNION

€ 6.50

22

0916110009
ref: 22

WASHER(10X15X1.5)

€ 2.00

23

6924310D00
ref: 23

GUIDE,BRAKE HOSE

€ 6.00

24

0920006037
ref: 24
09200-06068

PIN

€ 5.00

25

0832221067
ref: 25
08322-01067

WASHER

€ 2.00

26

0411120158
ref: 26
04111-2015A

PIN

€ 1.50

27

6978010D00
ref: 27

PLATE,REAR RESERVOIR TANK

€ 10.00

28

0151706164
ref: 28
01550-0616A

BOLT

€ 2.50

28

0151706164
ref: 28
01550-0616A

BOLT

€ 2.50
