REAR COMBINATION LAMP

GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)

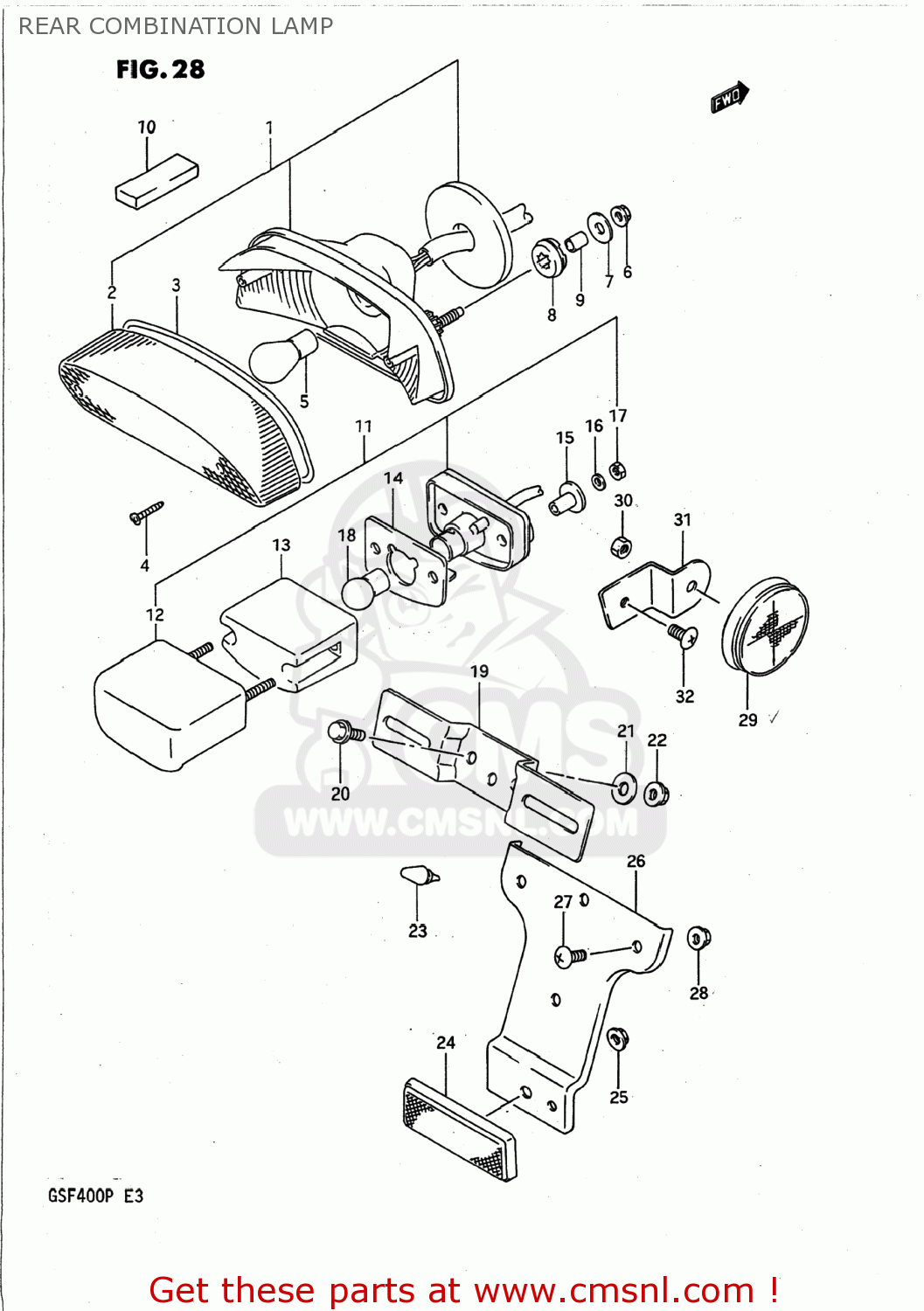

Rear combination lamp diagram GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)

REAR COMBINATION LAMP GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)
REAR COMBINATION LAMP GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)
REAR COMBINATION LAMP GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
3571045C10
ref: 1
LAMP ASSEMBLY,REAR COMBINATION
3571045C10
€ 64.00
2
3571238B30
ref: 2
LENS
3571238B30
€ 30.00
3
3571338B30
ref: 3
GASKET (NAS)
3571338B30
€ 6.50
4
3572338B30
ref: 4
03511-0416A
SCREW
€ 1.50
5
0947112083
ref: 5
09471-12128
BULB(12V21/5W)
0947112083
€ 6.00
6
0831626066
ref: 6
08316-1006B
NUT
€ 2.00
7
0916006060
ref: 7
09160-06077
WASHER
0916006060
€ 2.00
8
0932009009
ref: 8
CUSHION
0932009009
€ 5.00
9
0918006152
ref: 9
09180-06262
SPACER
0918006152
€ 3.00
10
3573310D00
ref: 10
CUSHION,REAR LENS
€ 3.00
11-1
3591045C10
ref: 11-1
35910-24B30-999
LAMP ASSEMBLY,LICENSE
€ 142.50
11-2
3591024B00999
ref: 11-2
35910-24B30-999
LAMP ASSEMBLY,LICENSE
€ 142.50
12-1
3591738A30
ref: 12-1
35917-38A20
COVER,LICENSE LAMP
€ 121.50
12-2
3591738A20
ref: 12-2
COVER,LICENSE LAMP
3591738A20
€ 121.50
13
3591238A30
ref: 13
LENS
3591238A30
€ 11.50
14
3591338A30
ref: 14
GASKET,LICENSE LAMP (NAS)
3591338A30
€ 2.00
15
3576624B30
ref: 15
SPACER
3576624B30
€ 2.00
16
0832121047
ref: 16
08321-0104A
WASHER,LOCK 4M
0832121047
€ 2.00
17
0831011047
ref: 17
08310-00047
NUT
0831011047
€ 2.00
18
0947112058
ref: 18
BULB
0947112058
€ 4.00
19
3592700A10
ref: 19
BRACKET,LICENSE PLATE
3592700A10
€ 6.00
20
0151706164
ref: 20
01550-0616A
BOLT
€ 2.50
21
0916006059
ref: 21
09160-06088
WASHER,COVER,FRONT
€ 2.00
22
0831626066
ref: 22
08316-1006B
NUT
€ 2.00
23
0932105005
ref: 23
CUSHION
0932105005
€ 7.00
24
3597000A21
ref: 24
35970-00A10
REFLECTOR ASSEMBLY,REAR
3597000A21
€ 22.00
25
0831626058
ref: 25
08316-2005A
NUT 5MM
€ 2.00
26
3597410D10
ref: 26
BRACKET,REAR REFLECTOR
3597410D10
€ 7.50
27
0214206125
ref: 27
02142-0612A
SCREW 6X12
0214206125
€ 2.00
28
0831626065
ref: 28
08316-2006A
NUT
0831626065
€ 2.00
29
3597014A10
ref: 29
REFLEX REFLECTOR,RR
3597014A10
€ 12.00
30
0836115055
ref: 30
08361-1505B
NUT
€ 2.50
31-1
3597510D00
ref: 31-1
BRACKET,REAR SIDE REFLECTOR
€ 0.00
31-2
3597610D00
ref: 31-2
BRACKET,REAR SIDE REFLECTOR
€ 0.00
32
0214206104
ref: 32
02142-0610A
SCREW
0214206104
€ 2.00
