CYLINDER HEAD COVER

GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)

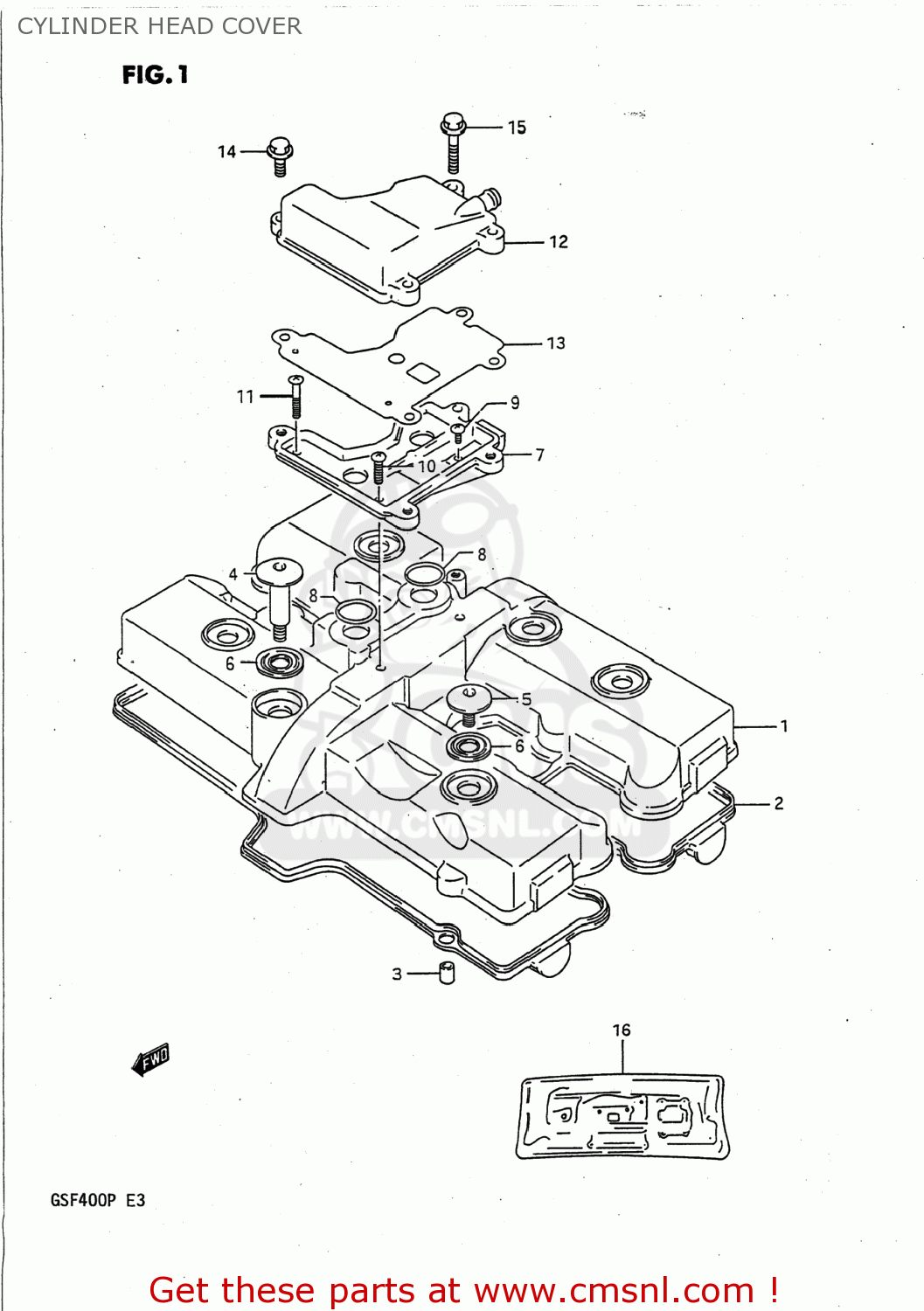

Cylinder head cover diagram GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1117110D00
ref: 1

COVER,CYLINDER HEAD

€ 125.00

1117330B02
ref: 2

GASKET,CYLINDER HEAD COVER (NAS)

€ 36.00

0920608001
ref: 3

PIN(6.2X8X11)

€ 2.00

0910607016
ref: 4

BOLT(7X37)

€ 5.50

0910607015
ref: 5

BOLT(7X18.5)

€ 6.00

0916111008
ref: 6

WASHER(10.6X25.5X2.3)

€ 4.50

1117733C00
ref: 7

COVER,BREATHER,LOWER

€ 21.00

0928019005
ref: 8

O RING(D:2.4,ID:19)

€ 2.00

0211205106
ref: 9
02112-0510A

SCREW 5X10

€ 2.00

0211205206
ref: 10
02112-0520B

SCREW

€ 2.50

0211205306
ref: 11
02112-0530A

SCREW

€ 1.50

1118033C00
ref: 12

COVER,BREATHER,UPPER

€ 28.50

1117933C00
ref: 13

GASKET,BREATHER COVER (NAS)

€ 12.00

0151706207
ref: 14
01550-06207

BOLT 6X20

€ 2.50

0151706358
ref: 15
01550-06357

BOLT 6X35

€ 2.50

16-1

1140032864
ref: 16-1
11400-32880

GASKET SET (NAS)

€ 183.50

16-2

1140032867
ref: 16-2
11400-32880

GASKET SET (NAS)

€ 183.50
