CYLINDER

GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)

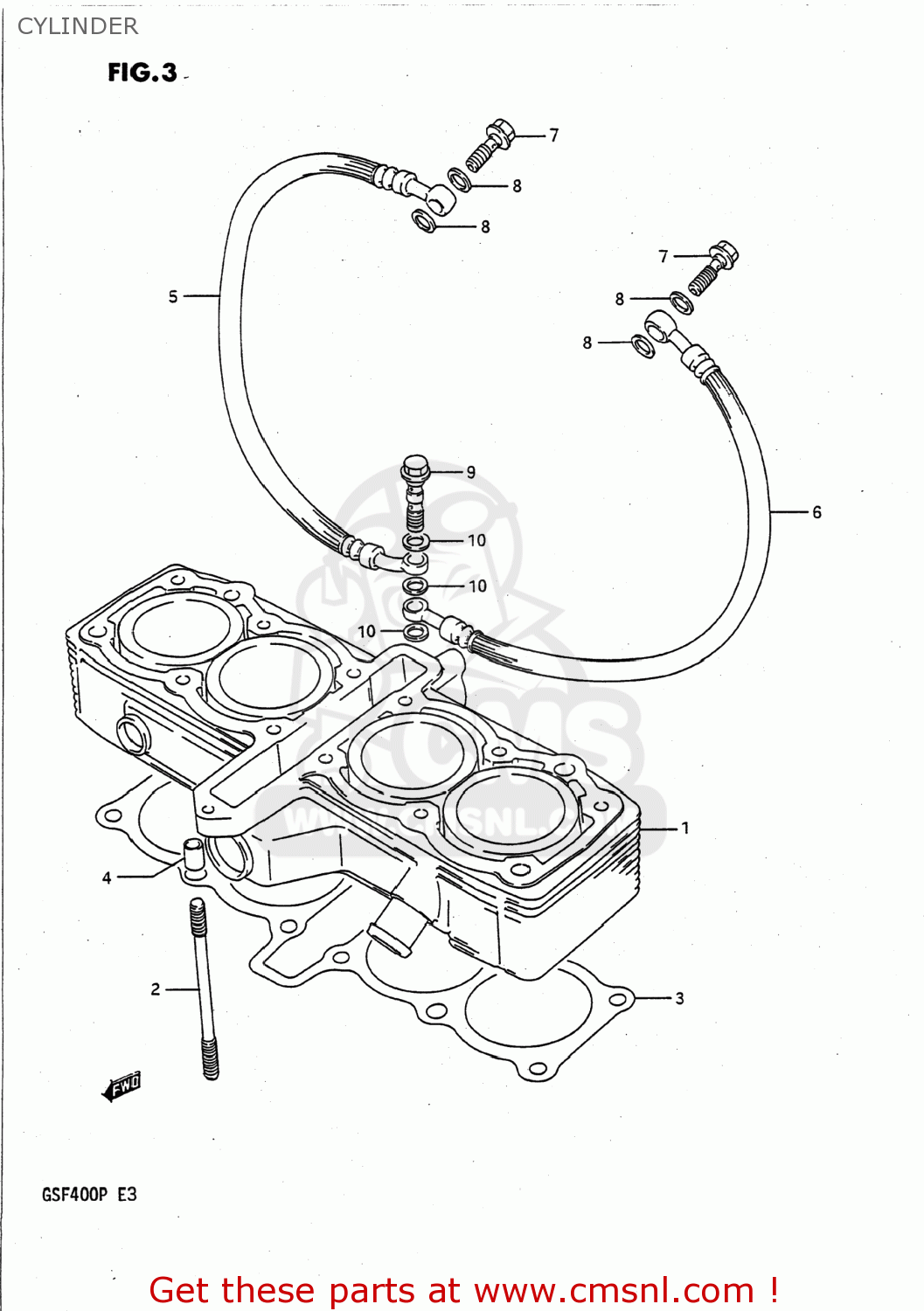

Cylinder diagram GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1121010D00
ref: 1
11210-10D01

CYLINDER

€ 705.50

0910808202
ref: 2

BOLT,STUD(8X120)

€ 10.00

1124132C00
ref: 3

GASKET,CYLINDER (NAS)

€ 16.00

0421111169
ref: 4

PIN

€ 2.00

1128110D00
ref: 5
11281-10D01

HOSE,CRANKCASE OIL,RIGHT

€ 94.00

1128210D00
ref: 6
11282-10D01

HOSE,CRANKCASE OIL,LEFT

€ 94.00

1128432C00
ref: 7
09360-08013

CLAMP,OIL HOSE CRANKCASE

€ 15.00

0916808026
ref: 8
09168-08016

GASKET (NAS)

€ 1.00

1128532C00
ref: 9
09360-10052

BOLT,OIL PIPE UNION,NO

€ 16.50

0916110009
ref: 10

WASHER(10X15X1.5)

€ 2.00
