STARTING MOTOR

GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)

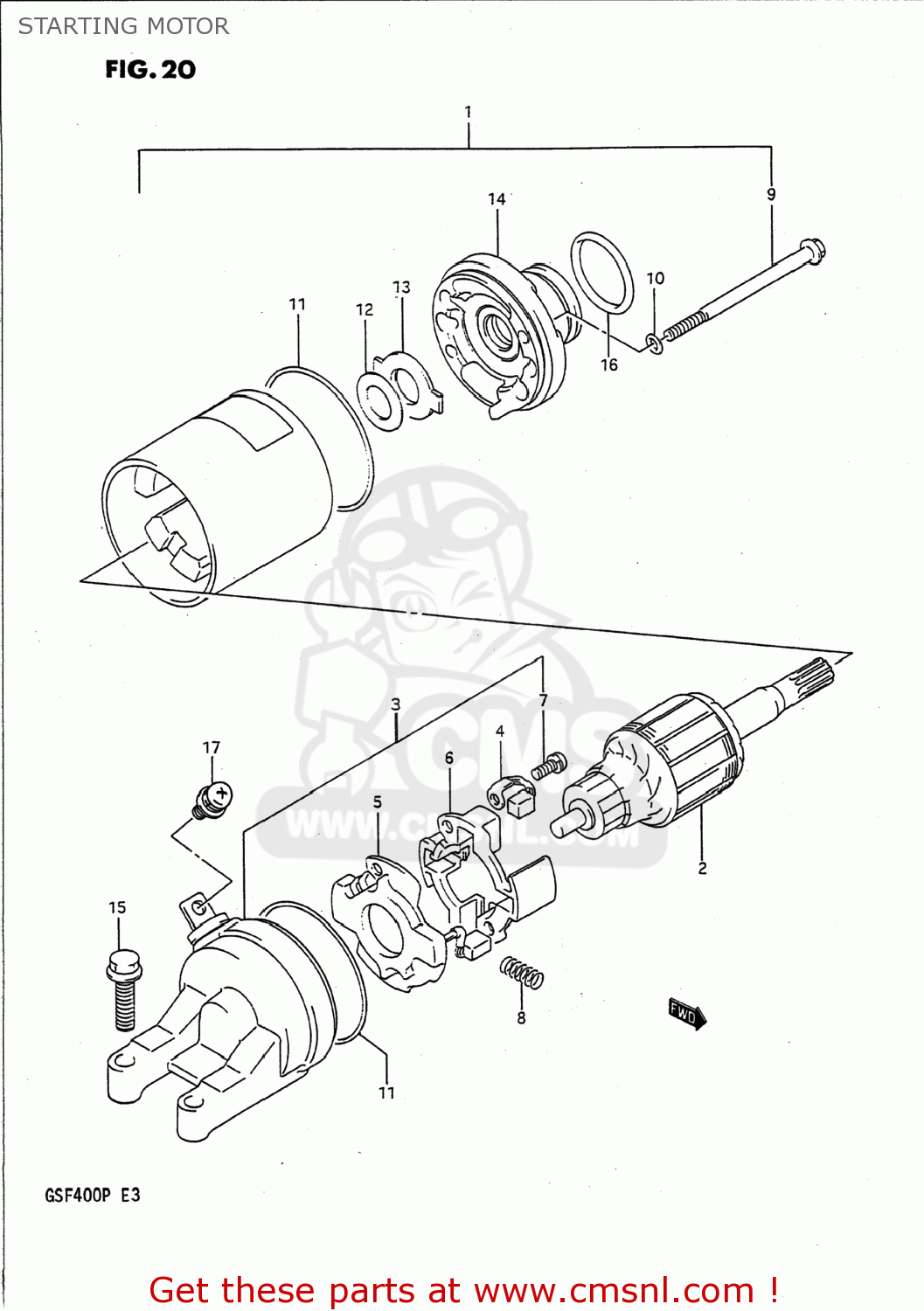

Starting motor diagram GSF400 BANDIT 1993 (P) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

3110010D00
ref: 1
31100-08F00

MOTOR ASSEMBLY,STARTING

€ 999.00

3131032C10
ref: 2

ARMATURE

€ 283.00

3117532C10
ref: 3
31175-32C11

FRAME ASSEMBLY,COMMUTATOR

€ 87.50

3113232C10
ref: 4

BRUSH

€ 14.50

3113032C10
ref: 5
31130-32C20

BRUSH SUB ASSEMBLY

€ 28.00

3113332C10
ref: 6

HOLDER,BRUSH

€ 9.00

3113432C10
ref: 7
02112-3412B

SCREW

€ 2.00

3113532C10
ref: 8

SPRING

€ 3.50

3128132C10
ref: 9

BOLT

€ 8.50

3115638300
ref: 10

O RING

€ 3.00

3126432C10
ref: 11

O RING

€ 9.00

3136138300
ref: 12

SHIM

€ 1.50

3136132C10
ref: 13

PLATE,LOCK

€ 2.50

3115032C10
ref: 14
31150-06C00

BRACKET

€ 112.00

0910306066
ref: 15

BOLT(6X23)

€ 2.00

0928024003
ref: 16

O RING(D:3,ID:24.5)

€ 2.00

17-1

0211275087
ref: 17-1

SCREW

€ 0.00

17-2

0913705004
ref: 17-2

SCREW(5X8)

€ 2.00
