CARBURETOR FITTINGS (MODEL T/V/W)

GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

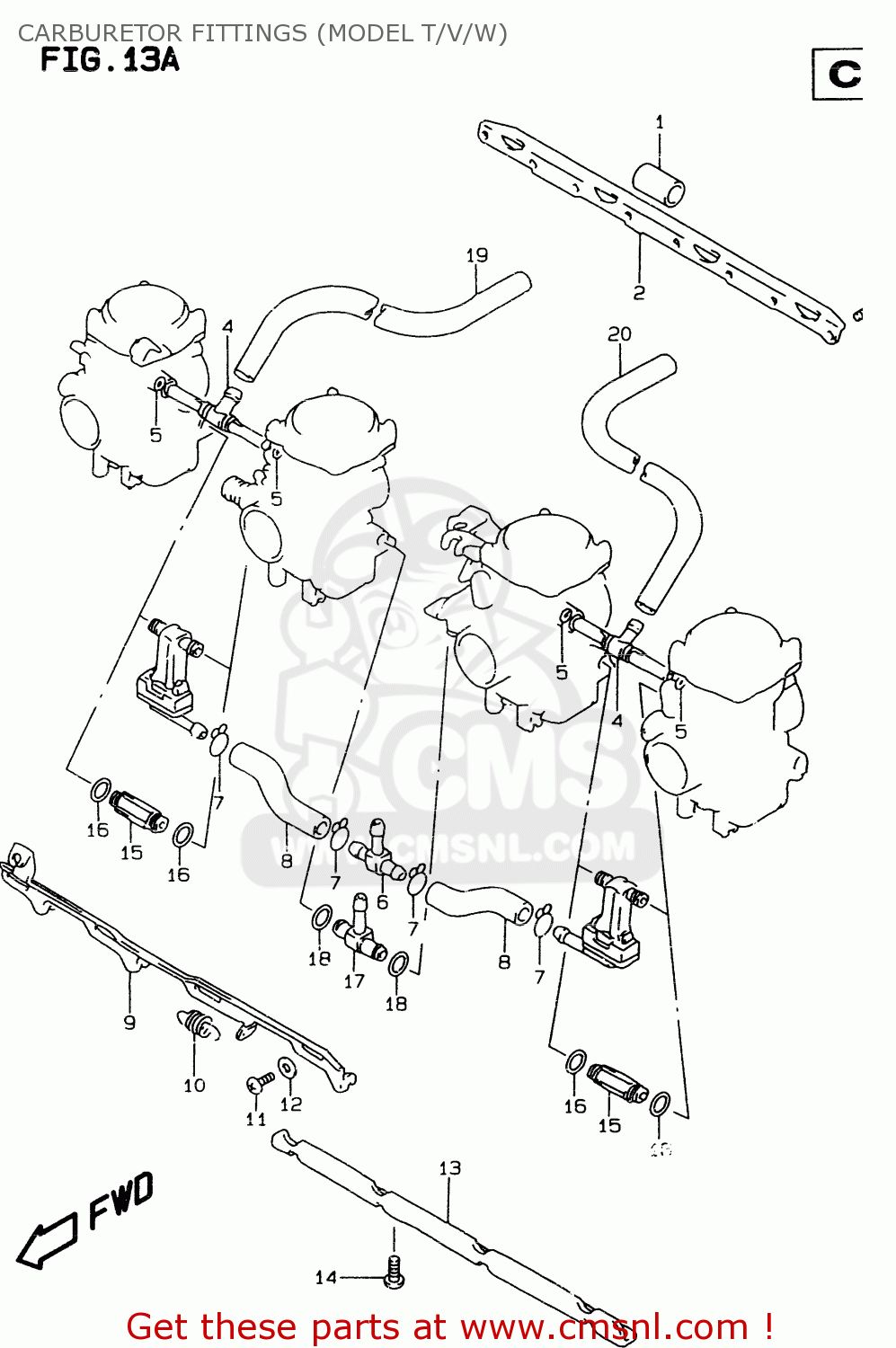

Carburetor fittings (model t/v/w) diagram GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

CARBURETOR FITTINGS (MODEL T/V/W) GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

CARBURETOR FITTINGS (MODEL T/V/W) GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1368426E00
ref: 1

PIPE

€ 3.00

2

1362826E10
ref: 2

STAY,PLATE

€ 29.00

3

1360226E50
ref: 3

SCREW

€ 3.50

4

1368526E20
ref: 4

JOINT

€ 14.00

5

1367326E00
ref: 5

O RING

€ 4.50

6

1368526E30
ref: 6
E17,E18,E22,E24

JOINT

€ 18.50

7

1367126E10
ref: 7
E17,E18,E22,E24

CLAMP

€ 3.50

8

1368326E00
ref: 8
E17,E18,E22,E24

HOSE

€ 25.00

9

1341326E00
ref: 9

LEVER,STARTER

€ 59.50

10

1341726E20
ref: 10

SPRING

€ 9.50

11

1360226E60
ref: 11

SCREW

€ 3.50

12

1341826E10
ref: 12

WASHER

€ 3.50

13

1362826E00
ref: 13

STAY,PLATE

€ 29.00

14

1360226E40
ref: 14

SCREW

€ 3.50

15

1368526E10
ref: 15
EXCEPT E17,E18,E22,E

JOINT

€ 12.50

16

1367326E10
ref: 16
EXCEPT E17,E18,E22,E

O RING

€ 4.50

17

1368526E00
ref: 17
EXCEPT E17,E18,E22,E

JOINT

€ 25.00

18

1367326E00
ref: 18
EXCEPT E17,E18,E22,E

O RING

€ 4.50

19

0935270113600
ref: 19
L:600->450

HOSE(7X11X600)

€ 17.50

20

0935270113600
ref: 20
L:600->480

HOSE(7X11X600)

€ 17.50
