GEAR SHIFTING

GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

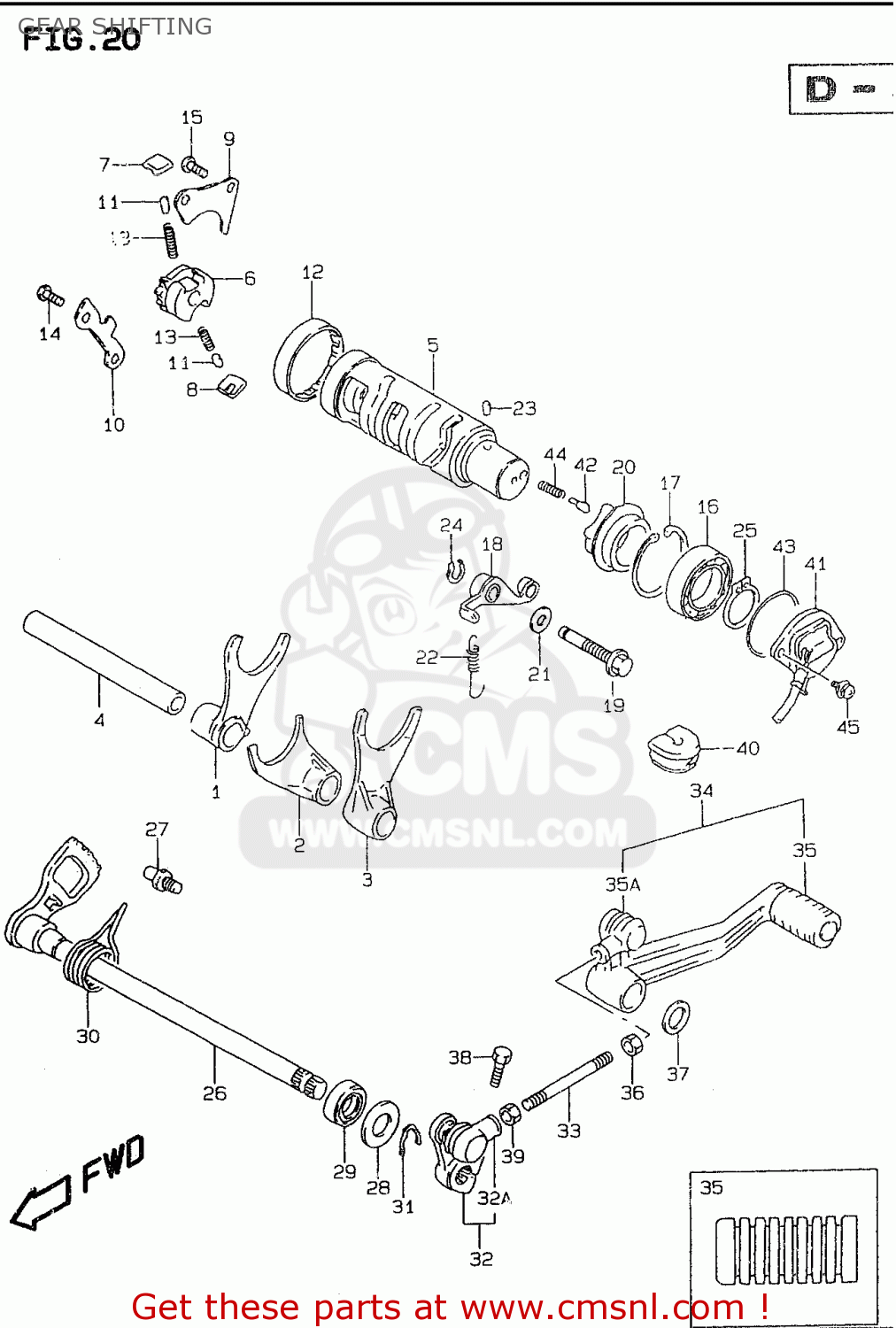

Gear shifting diagram GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

GEAR SHIFTING GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)
GEAR SHIFTING GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)
GEAR SHIFTING GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
2521127A00
ref: 1
FORK,GEAR SHIFT NO.1
€ 102.50
2
2522127A01
ref: 2
FORK,GEAR SHIFT NO.2
2522127A01
€ 83.50
3
2523127A00
ref: 3
FORK,GEAR SHIFT NO.3
2523127A00
€ 84.00
4
2541127A00
ref: 4
SHAFT,GEAR SHIFT FORK(L:128)
2541127A00
€ 23.50
5
2531027A02
ref: 5
CAM,GEAR SHIFT
€ 196.50
6
2532231302
ref: 6
<-25322-31301
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
9
2533131301
ref: 9
LIFTER,GEAR SHIFT PAWL
2533131301
€ 7.00
10
2534127A00
ref: 10
GUIDE,GEAR SHIFT CAM
2534127A00
€ 8.50
11
0926105003
ref: 11
PIN(5X8)
0926105003
€ 1.50
12
0926343001
ref: 12
BEARING(43X49X12)
0926343001
€ 30.00
13
0944004003
ref: 13
SPRING
0944004003
€ 1.50
14
0212206123
ref: 14
SCREW
0212206123
€ 3.00
15
0212206123
ref: 15
SCREW
0212206123
€ 3.00
16
0811369050
ref: 16
BEARING
0811369050
€ 36.00
17
0833141426
ref: 17
CIRCLIP
0833141426
€ 1.50
18
2535027A00
ref: 18
STOPPER,GEAR SHIFT CAM
2535027A00
€ 13.00
19
2535327A00
ref: 19
SHAFT,GEAR SHIFT CAM STOPPER
2535327A00
€ 5.50
20
2538138400
ref: 20
PLATE,STOPPER
2538138400
€ 22.00
21
0916810002
ref: 21
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
22
0944309033
ref: 22
SPRING
0944309033
€ 7.00
23
0422104069
ref: 23
PIN
0422104069
€ 2.00
24
0833131086
ref: 24
CIRCLIP
0833131086
€ 2.00
25
0833131256
ref: 25
CIRCLIP
0833131256
€ 2.00
26
2551019C01
ref: 26
SHAFT,GEAR SHIFT
2551019C01
€ 91.50
27
2567101000
ref: 27
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
28-1
0916012020
ref: 28-1
MODEL T/V
WASHER (12.5X27X1.6)
0916012020
€ 2.00
28-2
0916012090
ref: 28-2
MODEL W
WASHER (12.5X26X1.6)
0916012090
€ 2.00
29
0928512002
ref: 29
OIL SEAL
0928512002
€ 7.00
30
0944426017
ref: 30
SPRING
0944426017
€ 5.00
31
0833131126
ref: 31
CIRCLIP,12 MM
0833131126
€ 2.00
32
2552022A00
ref: 32
ARM,GEAR SHIFT LINK
2552022A00
€ 46.50
32A
2552647000
ref: 32A
COVER,DUST
2552647000
€ 3.50
33
2552526E01
ref: 33
<-25525-26E00
ROD,GEAR SHIFT LINK
2552526E01
€ 14.50
34
2560010D10
ref: 34
<-25600-10D01
LEVER ASSY,GEAR SHIFT
2560010D10
€ 64.00
35
2565220C00
ref: 35
RUBBER,GEAR SHIFT PEDAL
2565220C00
€ 8.00
35A
2552647000
ref: 35A
COVER,DUST
2552647000
€ 3.50
36
0914006011
ref: 36
NUT
0914006011
€ 1.50
37
0916018022
ref: 37
18X24X1
WASHER(18X24X1)
0916018022
€ 3.00
38
0150006203
ref: 38
BOLT
0150006203
€ 2.00
39
0831000067
ref: 39
NUT
0831000067
€ 2.50
40
3388527A01
ref: 40
GROMMET,LEADWIRE
3388527A01
€ 20.50
41
3772048B00
ref: 41
TERMINAL BASE ASSY,NEUTRAL
3772048B00
€ 57.00
42
0920905011
ref: 42
PIN(5X15.5)
0920905011
€ 2.00
43
0928035006
ref: 43
O RING(D:2.4,ID:35.5)
0928035006
€ 4.00
44
0944004010
ref: 44
SPRING
0944004010
€ 1.50
45
0211275163
ref: 45
SCREW
0211275163
€ 2.50
