REAR CALIPER

GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

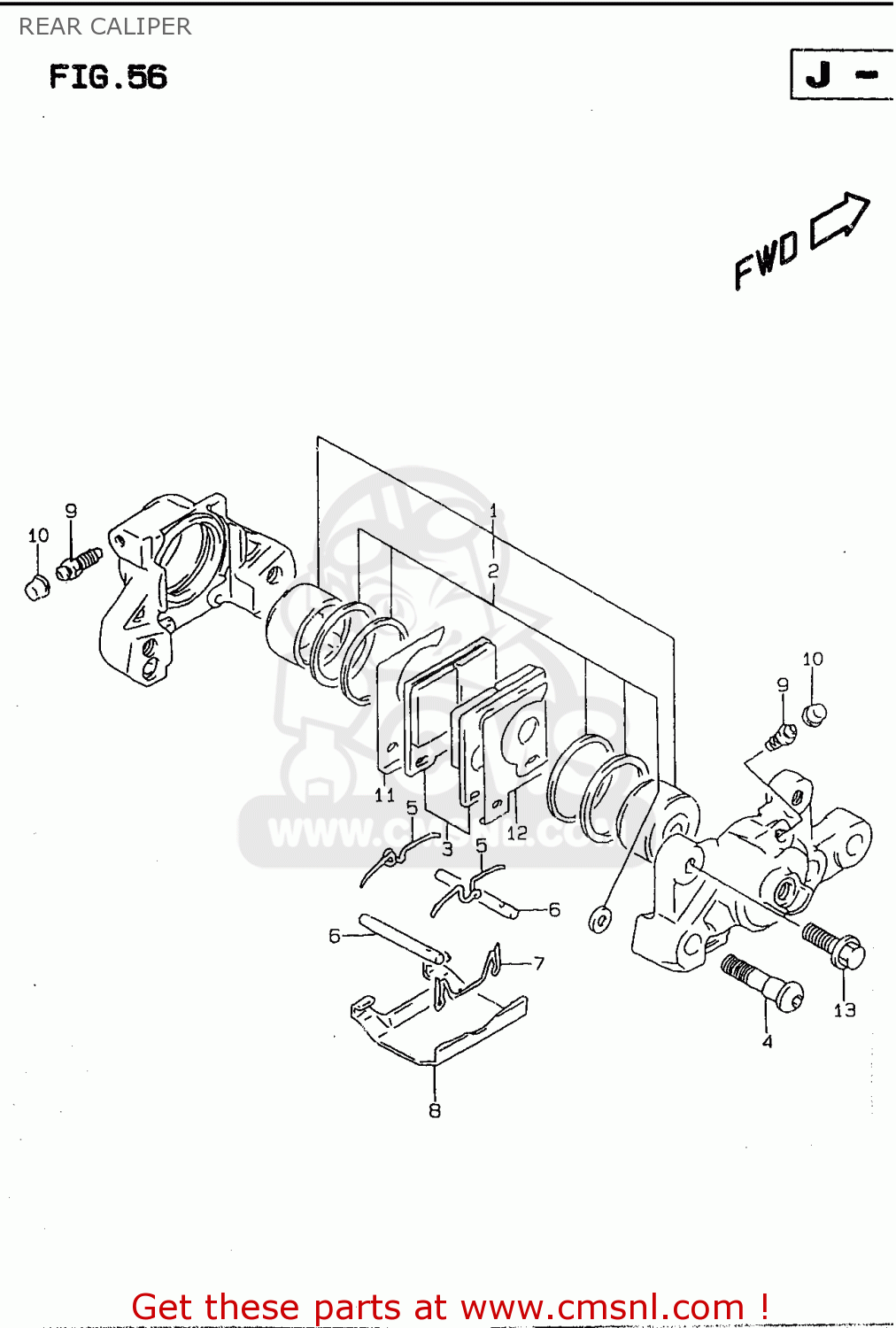

Rear caliper diagram GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

REAR CALIPER GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

REAR CALIPER GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

0

6910005C41
ref: 0

CALIPER ASSEMBLY,REAR

€ 770.50

1-1

6910032810
ref: 1-1
MODEL S/T ~F.NO.GN77

PISTON SET

€ 122.50

1-2

6910005850
ref: 1-2
MODEL T F.NO.GN77A-1

PISTON SET

€ 122.50

2

6910032820
ref: 2

SEAL SET,PISTON

€ 26.00

3

6910005830
ref: 3

PAD SET (NAS)

€ 57.00

4-1

5914516700
ref: 4-1
MODEL S/T ~F.NO.GN77

BOLT,HOUSING

€ 8.00

4-2

5914505C50
ref: 4-2
MODEL T F.NO.GN77A-1

BOLT,HOUSING

€ 9.50

5

5914316700
ref: 5

SPRING

€ 7.50

6

6914146E01
ref: 6

PIN,PAD

€ 9.00

7

6914246E01
ref: 7

CLIP,PAD PIN

€ 14.00

8

5915116701
ref: 8

COVER

€ 13.50

9

5912118410
ref: 9

BLEEDER

€ 8.00

10

5515666310
ref: 10

CAP,BLEEDER PLUG

€ 6.00

11

5937120C00
ref: 11

SHIM,INNER

€ 7.50

12

5938120C00
ref: 12

SHIM,OUTER

€ 7.50

13

0155008303
ref: 13

BOLT

€ 3.00
