OIL COOLER

GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

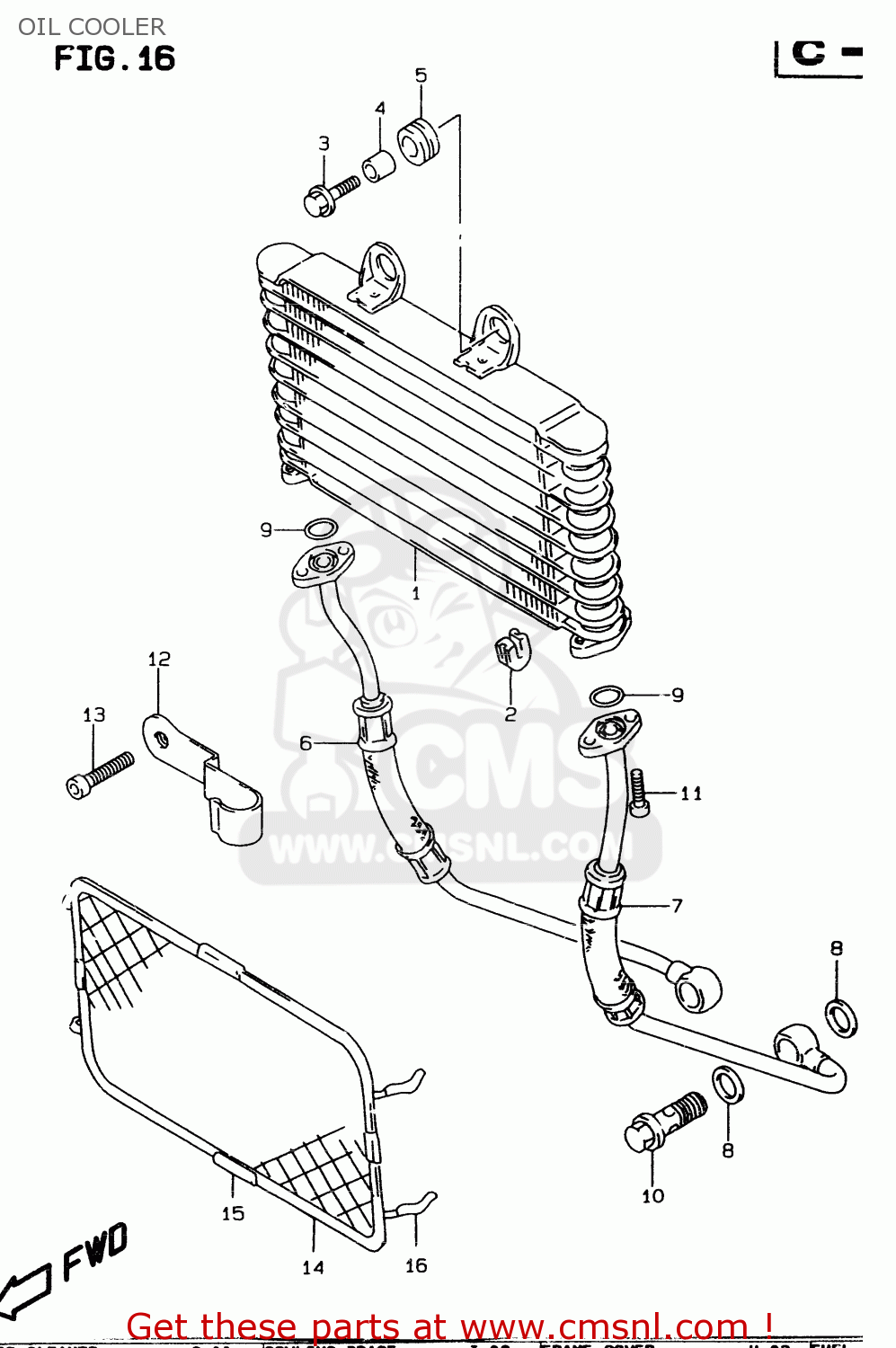

Oil cooler diagram GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

OIL COOLER GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

OIL COOLER GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1660026E00
ref: 1

COOLER ASSY,OIL

€ 1,008.50

2

1662827A00
ref: 2

CUSHION,OIL COOLER NO.2

€ 3.00

3

0911606143
ref: 3

BOLT 6X20

€ 2.00

4

0918006310
ref: 4

SPACER(6.5X10X10)

€ 2.00

5

0932010015
ref: 5

CUSHION

€ 2.50

6-1

1646026E00
ref: 6-1
MODEL S/T

HOSE,OIL COOLER,RIGHT

€ 169.50

6-2

1646026E20
ref: 6-2
MODEL V/W

HOSE COMP,OIL COOLER,RIGHT

€ 169.50

7

1647026E00
ref: 7

HOSE,OIL COOLER,LEFT

€ 173.00

8

0916816002
ref: 8

GASKET(16X22X2) (NAS)

€ 2.00

9-1

0928012008
ref: 9-1
MODEL S/T

O RING(D:2.4,ID:12.3)

€ 3.00

9-2

0928012012
ref: 9-2
MODEL V/W

O RING(D:2.4,ID:11.8)

€ 5.00

10

0936016002
ref: 10

BOLT UNION

€ 12.00

11

0713006163
ref: 11

BOLT,OIL FILLE

€ 3.00

12

1649026E00
ref: 12
MODEL V/W

CLAMP,OIL HOSE

€ 6.00

13

0713006123
ref: 13
MODEL V/W

BOLT,STRANGER

€ 2.50

14

1665026E00
ref: 14
MODEL W

GUARD COMP,OIL COOLER

€ 59.00

15

1665427E00
ref: 15
MODEL W

PROTECTOR,CTR

€ 3.00

16

0935230503600
ref: 16
MODEL W,L:600->40

HOSE(3X5X600)

€ 8.00
