CYLINDER HEAD COVER

GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

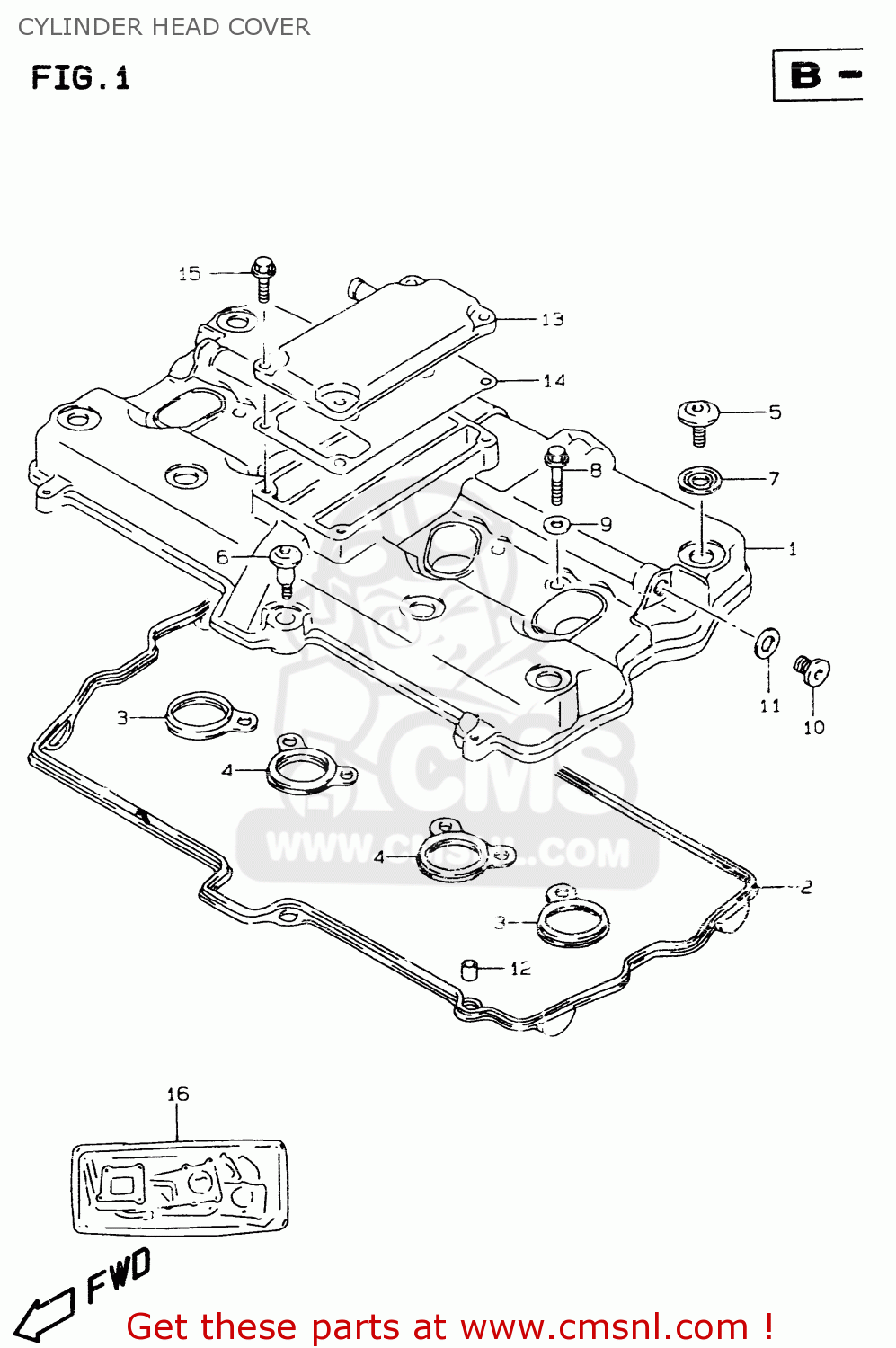

Cylinder head cover diagram GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

CYLINDER HEAD COVER GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

CYLINDER HEAD COVER GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1117126E01
ref: 1

COVER,CYLINDER HEAD

€ 522.00

2

1117327A02
ref: 2

GASKET,CYLINDER HEAD COVER (NAS)

€ 34.00

3

1117827A01
ref: 3

GASKET,HEAD COVER NO.2 (NAS)

€ 5.50

4

1117927A02
ref: 4

GASKET,HEAD COVER NO.3 (NAS)

€ 7.50

5

0910607009
ref: 5

BOLT(7X17.5)

€ 4.50

6

0910607010
ref: 6

BOLT(7X31)

€ 4.50

7

0916111008
ref: 7

WASHER(10.6X25.5X2.3)

€ 4.50

8

0936008009
ref: 8

BOLT,UNION 8X35

€ 26.50

9

0916808008
ref: 9

GASKET 8.2X14X1 (NAS)

€ 1.00

10

0924812004
ref: 10

PLUG(L:12)

€ 5.50

11

0916812002
ref: 11

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

12

0422108129
ref: 12

PIN

€ 2.00

13-1

1117626D00
ref: 13-1

COVER,BREATHER

€ 35.50

13-2

1117631301
ref: 13-2
E18

COVER,BREATHER

€ 31.50

14-1

1117717E00
ref: 14-1

GASKET,BREATHER COVER

€ 12.50

14-2

1117727A00H17
ref: 14-2
E18

GASKET,BREATHER COVER (NAS)

€ 11.00

15-1

0155006253
ref: 15-1

BOLT

€ 2.50

15-2

0155006203
ref: 15-2
E18

BOLT

€ 2.50

16-1

1140026881
ref: 16-1
MODEL S/T/V

GASKET SET (NAS)

€ 356.50

16-2

1140026882
ref: 16-2
MODEL W

GASKET SET (NAS)

€ 356.50
