CARBURETOR (MODEL T)

GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

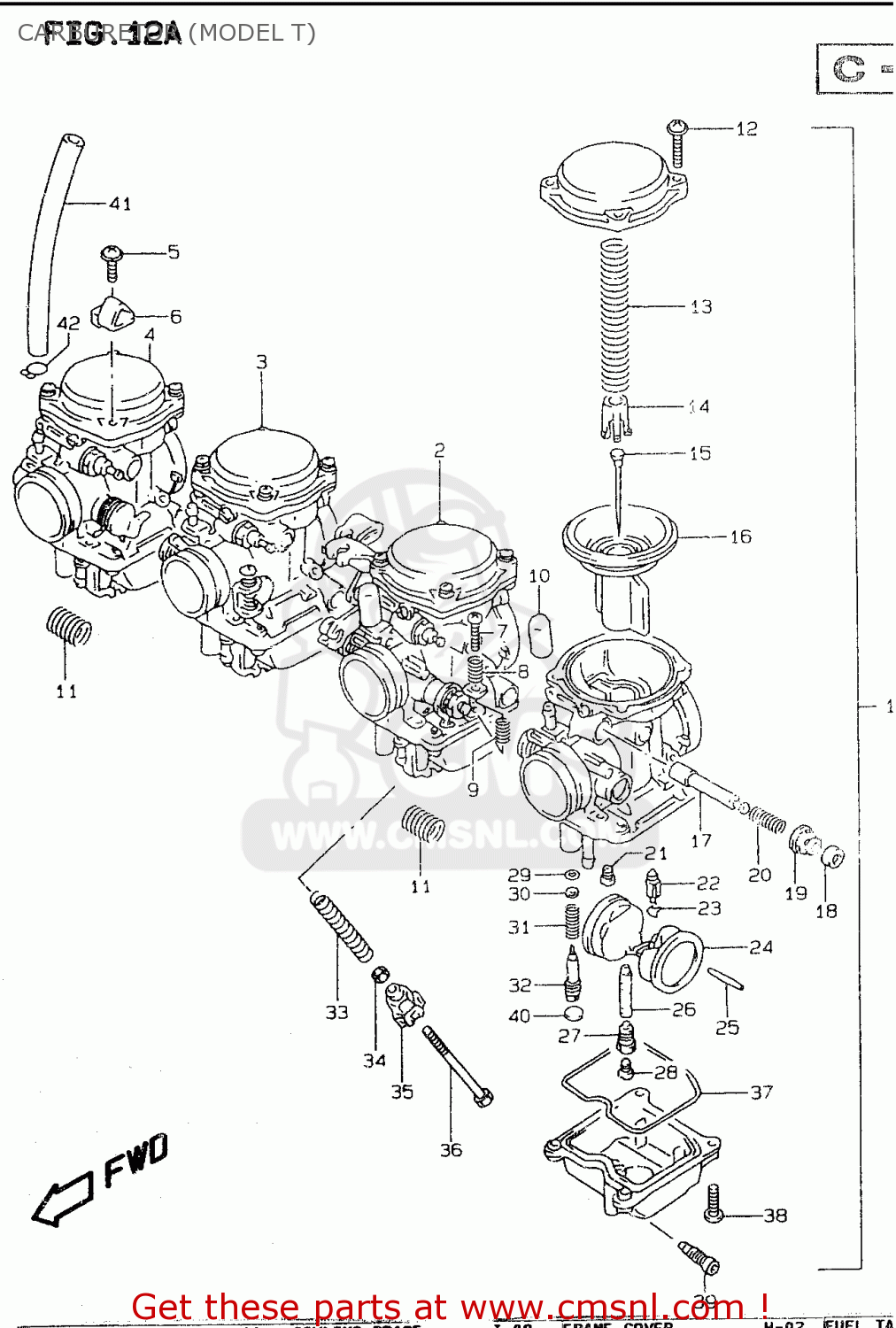

Carburetor (model t) diagram GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

CARBURETOR (MODEL T) GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)
CARBURETOR (MODEL T) GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)
CARBURETOR (MODEL T) GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
1320126E00
ref: 1-1
CARBURETOR ASSY, LH
1320126E00
€ 411.50
1-2
1320126E20
ref: 1-2
E18
CARBURETOR ASSY, LH
€ 424.50
1-3
1320126E30
ref: 1-3
GSF600T E17,E22,E24
CARBURETOR ASSY, LH
€ 0.00
1-4
1320126E40
ref: 1-4
GSF600UT E22
CARBURETOR ASSY, LH
€ 0.00
1-5
1320126E60
ref: 1-5
E37
CARBURETOR ASSY, LH
€ 0.00
2-1
1320226E00
ref: 2-1
CARBURETOR ASSY, ML
1320226E00
€ 391.50
2-2
1320226E20
ref: 2-2
E18
CARBURETOR ASSY, ML
€ 0.00
2-3
1320226E30
ref: 2-3
GSF600T E17,E22,E24
CARBURETOR ASSY, ML
€ 0.00
2-4
1320226E40
ref: 2-4
GSF600UT E22
CARBURETOR ASSY, ML
€ 0.00
2-5
1320226E60
ref: 2-5
E37
CARBURETOR ASSY, ML
€ 0.00
3-1
1320326E00
ref: 3-1
CARBURETOR ASSY, MR
1320326E00
€ 505.50
3-2
1320326E20
ref: 3-2
E18
CARBURETOR ASSY, MR
€ 0.00
3-3
1320326E30
ref: 3-3
GSF600T E17,E22,E24
CARBURETOR ASSY, MR
€ 0.00
3-4
1320326E40
ref: 3-4
GSF600UT E22
CARBURETOR ASSY, MR
€ 0.00
3-5
1320326E60
ref: 3-5
E37
CARBURETOR ASSY, MR
€ 0.00
4-1
1320426E00
ref: 4-1
CARBURETOR ASSY, RH
1320426E00
€ 416.00
4-2
1320426E20
ref: 4-2
E18
CARBURETOR ASSY, RH
€ 0.00
4-3
1320426E30
ref: 4-3
GSF600T E17,E22,E24
CARBURETOR ASSY, RH
€ 0.00
4-4
1320426E40
ref: 4-4
GSF600UT E22
CARBURETOR ASSY, RH
€ 0.00
4-5
1320426E60
ref: 4-5
E37
CARBURETOR ASSY, RH
€ 0.00
5
1360226E30
ref: 5
SCREW
1360226E30
€ 3.00
6
1362426E00
ref: 6
STAY,PLATE
1362426E00
€ 16.00
7
1326726E10
ref: 7
SCREW
1326726E10
€ 3.50
8
1327126E10
ref: 8
SPRING
1327126E10
€ 4.50
9
1326826E10
ref: 9
SPRING
1326826E10
€ 5.00
10
1350826E00
ref: 10
CAP
1350826E00
€ 6.00
11
1327126E20
ref: 11
SPRING
€ 6.00
12
1360226E00
ref: 12
SCREW
€ 1.00
13
1341726E00
ref: 13
SPRING
1341726E00
€ 11.50
14
1338226E00
ref: 14
SEAT,SPRING
1338226E00
€ 15.00
15-1
1338326E00
ref: 15-1
NEEDLE,JET
1338326E00
€ 16.50
15-2
1338326E10
ref: 15-2
E18
NEEDLE,JET
€ 12.50
16-1
1350026E00
ref: 16-1
PISTON
€ 117.50
16-2
1350026E10
ref: 16-2
GSF600UT E22
PISTON
1350026E10
€ 148.00
16-3
1350026E20
ref: 16-3
E18
PISTON
1350026E20
€ 93.50
17
1341126E00
ref: 17
VALVE,STARTER
1341126E00
€ 52.50
18
1341926E00
ref: 18
CAP
1341926E00
€ 7.00
19
1341826E00
ref: 19
CAP
1341826E00
€ 7.00
20
1341726E10
ref: 20
SPRING
1341726E10
€ 7.00
21
0949235020
ref: 21
JET,SLOW(35)
0949235020
€ 13.50
22
1337026E00
ref: 22
VALVE ASSY,NEEDLE
1337026E00
€ 17.50
23
1337526E00
ref: 23
CLIP
1337526E00
€ 5.50
24
1325026E00
ref: 24
FLOAT ASSY
1325026E00
€ 64.00
25
1325426E00
ref: 25
PIN,FLOAT
1325426E00
€ 3.00
26-1
0949400863
ref: 26-1
JET,NEEDLE
0949400863
€ 26.50
26-2
0949400869
ref: 26-2
E18
JET,NEEDLE
0949400869
€ 36.50
27
1333126E00
ref: 27
HOLDER,NEEDLE JET
1333126E00
€ 23.50
28-1
0949198008
ref: 28-1
#1,#4
JET,MAIN(98)
0949198008
€ 16.50
28-2
0949120023
ref: 28-2
#2,#3
JET,MAIN(100)
0949120023
€ 14.50
28-3
0949120023
ref: 28-3
E18:#1,#4
JET,MAIN(100)
0949120023
€ 14.50
28-4
0949120024
ref: 28-4
E18:#2,#3
JET,MAIN(102)
0949120024
€ 16.00
29
1329526E00
ref: 29
O RING
1329526E00
€ 4.50
30
1329126E00
ref: 30
WASHER
1329126E00
€ 3.00
31
1326826E00
ref: 31
SPRING
1326826E00
€ 5.00
32-1
1327926E00
ref: 32-1
SCREW,ADJUST
1327926E00
€ 11.00
32-2
1327926E00
ref: 32-2
E18
SCREW,ADJUST
1327926E00
€ 11.00
33
1327126E00
ref: 33
SPRING
1327126E00
€ 5.50
34
1342726E00
ref: 34
WASHER
1342726E00
€ 2.50
35
1326926E00
ref: 35
HOLDER,ADJUST
1326926E00
€ 8.50
36
1326726E00
ref: 36
BOLT
1326726E00
€ 10.00
37
1325826E00
ref: 37
O RING
1325826E00
€ 8.50
38
1360226E10
ref: 38
SCREW
1360226E10
€ 6.00
39
1324726E00
ref: 39
PLUG,DRAIN
1324726E00
€ 15.50
40
1328126E00
ref: 40
E18
CAP
1328126E00
€ 6.00
41
0935250903600
ref: 41
L:600->250
HOSE(5X9X600)
0935250903600
€ 28.50
42
1367126E00
ref: 42
CLIP
1367126E00
€ 3.50
