HANDLEBAR (MODEL S)

GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

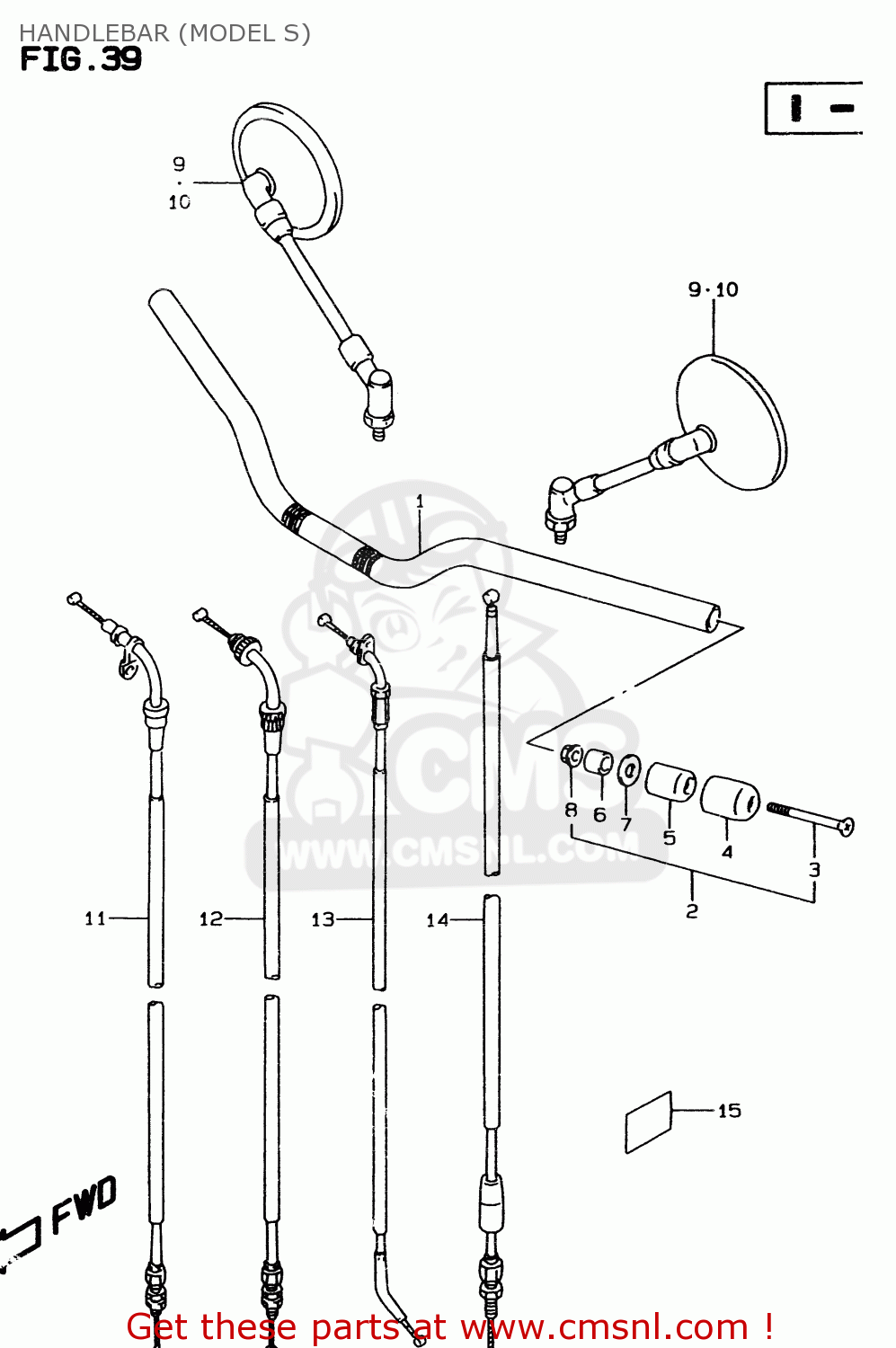

Handlebar (model s) diagram GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

5611123E00
ref: 1

HANDLEBAR

€ 113.50

5620026850
ref: 2

BALANCER SET,HANDLEBAR

€ 95.50

0212206603
ref: 3

SCREW

€ 3.00

5627431300
ref: 4
<-56274-05350(BLACK)

CAP,BALANCER

€ 223.50

5627149400
ref: 5

BALANCER,HANDLE

€ 19.50

5627534401
ref: 6

SPACER,BALANCER

€ 2.50

5627244500
ref: 7

EXPANDER,HANDLE BALANCER

€ 3.00

0915906024
ref: 8

NUT

€ 2.00

5650038A70
ref: 9

MIRROR ASSY,RH

€ 356.00

5650038A80
ref: 10
E22,E25

MIRROR ASSY,RH

€ 356.00

5830026E00
ref: 11

CABLE ASSY,THROTTLE NO.1

€ 35.50

5830026E10
ref: 12

CABLE ASSY,THROTTLE NO.2

€ 32.00

5841026E00
ref: 13

CABLE COMP,STARTER

€ 23.50

5820026E00
ref: 14

CABLE ASSY,CLUTCH

€ 29.50

4726148B00
ref: 15

PROTECTOR,FRAME COVER FR

€ 5.50
