STARTER CLUTCH

GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

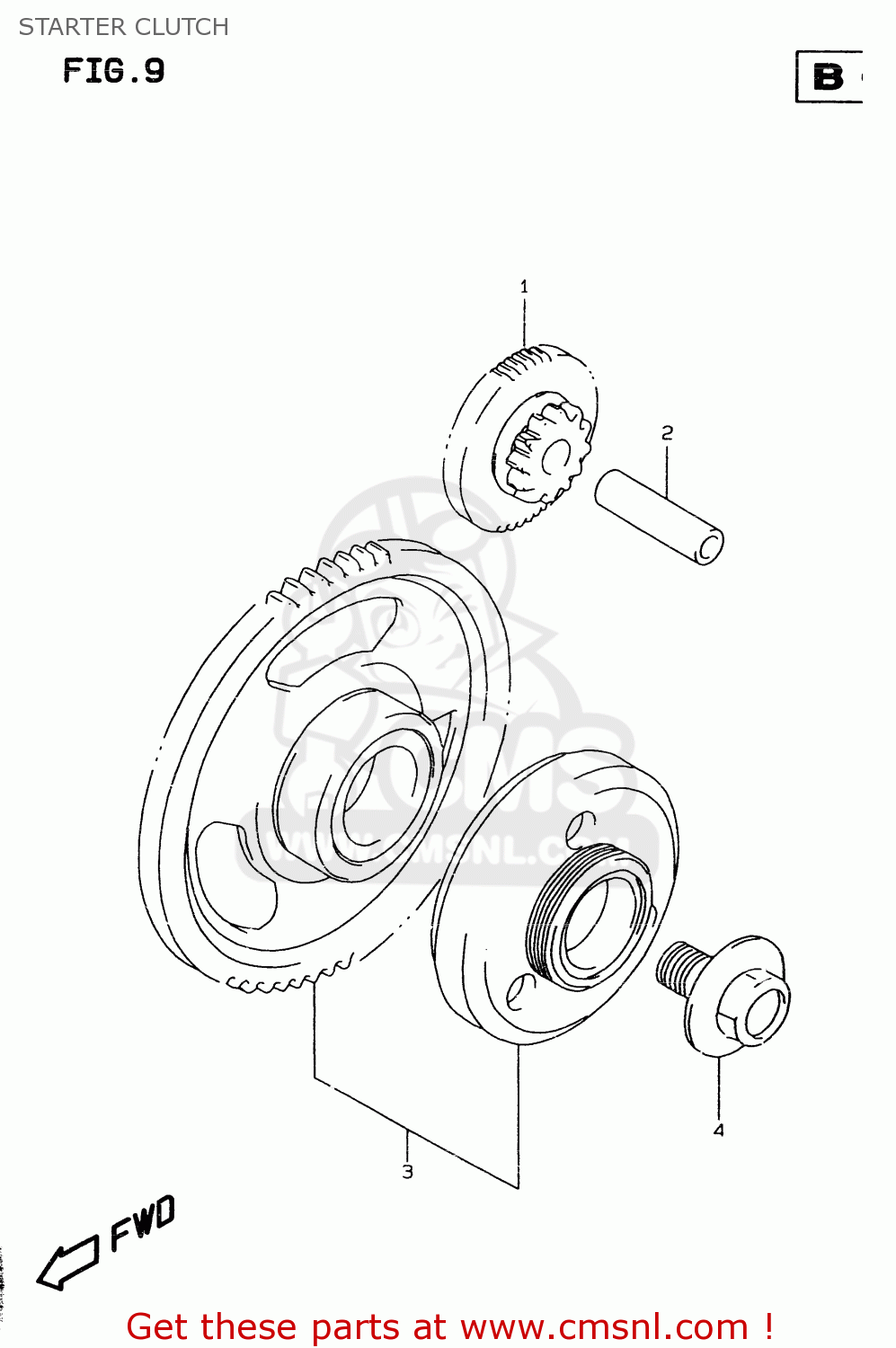

Starter clutch diagram GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

STARTER CLUTCH GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

STARTER CLUTCH GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1261106B00
ref: 1

GEAR,STARTER IDLE(NT:12,53)

€ 68.50

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3

1260048811
ref: 3
<-12600-17811

CLUTCH SET,STARTER

€ 377.50

4

0910314005
ref: 4

BOLT(14X21)

€ 17.00
