STARTING MOTOR

GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

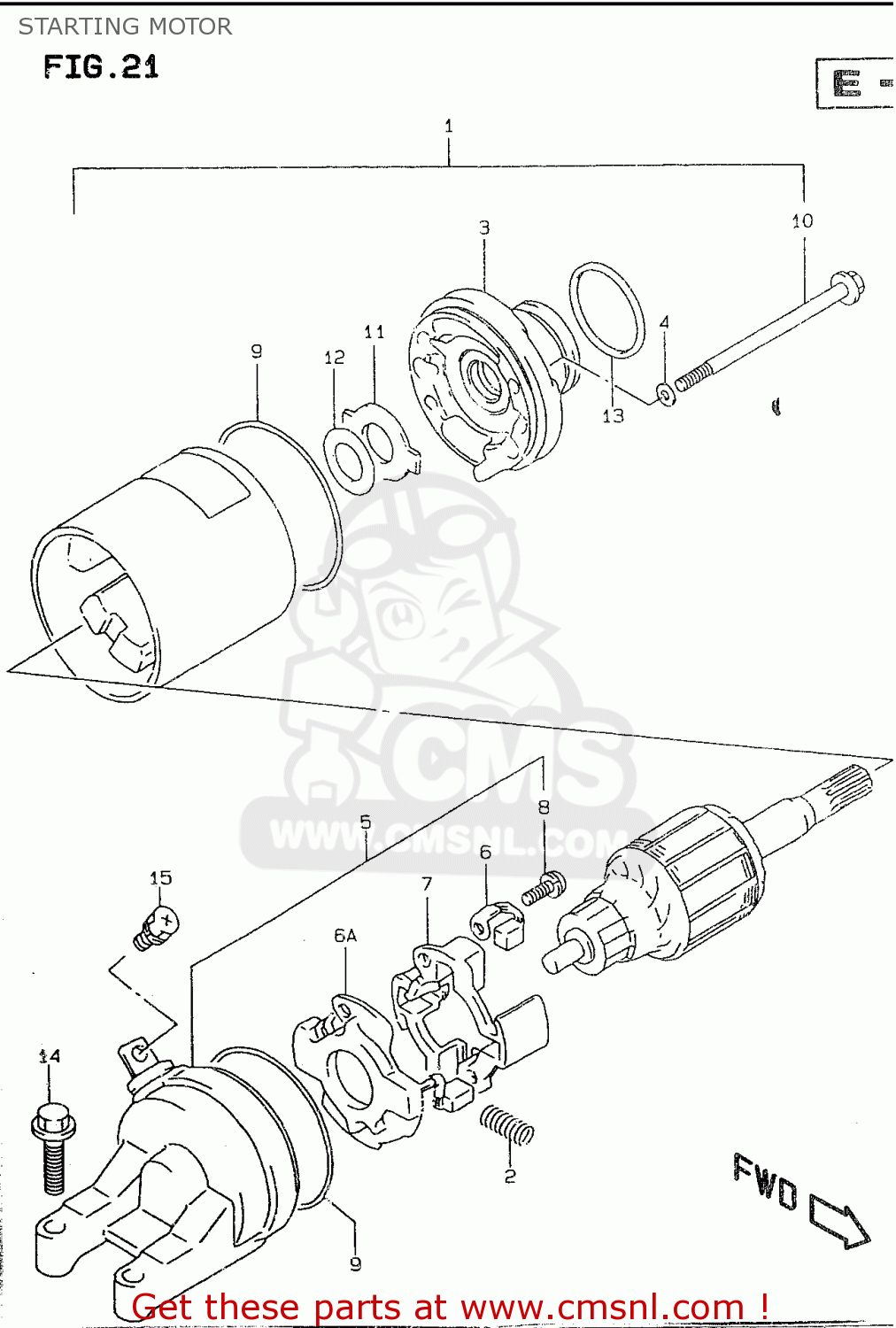

Starting motor diagram GSF600 1998 (W) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

3110032C11
ref: 1

MOTOR ASSEMBLY,STARTING

€ 999.00

3113532C10
ref: 2

SPRING

€ 3.50

3115006C00
ref: 3

BRACKET

€ 112.00

3115638300
ref: 4

O RING

€ 3.00

3117532C11
ref: 5

FRAME ASSY,COMMUTATOR END

€ 87.50

3113232C10
ref: 6

BRUSH

€ 14.50

3113032C20
ref: 6A

BRUSH SUB ASSY,STARTER

€ 28.00

3113332C10
ref: 7

HOLDER,BRUSH

€ 9.00

0211234123
ref: 8

SCREW

€ 2.00

3126432C10
ref: 9

O RING

€ 9.00

3128132C10
ref: 10

BOLT

€ 8.50

3136132C10
ref: 11

PLATE,LOCK

€ 2.50

3136138300
ref: 12

SHIM

€ 1.50

0928024003
ref: 13

O RING(D:3,ID:24.5)

€ 2.00

0912806024
ref: 14

SCREW (6X25)

€ 2.50

0913705004
ref: 15

SCREW(5X8)

€ 2.00
