prices are in EUR
ref
part #
description
quantity
1-4

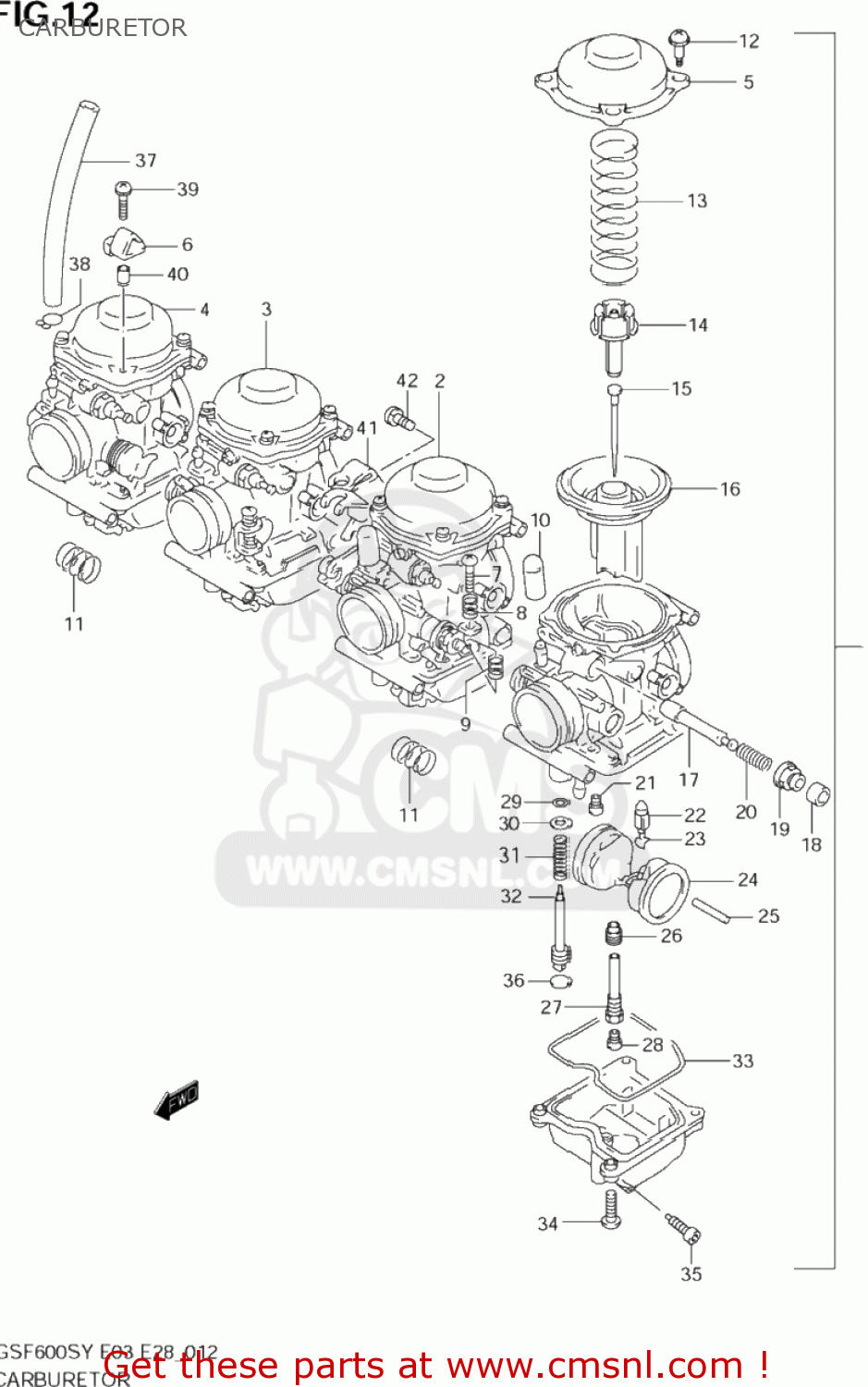

CARBURETOR ASSY, LH MODEL K3 E33
2-2
CARBURETOR ASSY, ML MODEL K3 E3,E28
2-4
CARBURETOR ASSY, ML MODEL K3 E33
3-1
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
3-2
CARBURETOR ASSY, MR MODEL K3 E3,E28
3-4
CARBURETOR ASSY, MR MODEL K3 E33
4-1
CARBURETOR ASSEMBLY,RIGHT
4-4
CARBURETOR ASSY, RH MODEL K3 E33
5
TOP
6
STAY,PLATE
7
SCREW
8
SPRING
9
SPRING
10
CAP
12
SCREW
13
SPRING
14
SEAT,SPRING
15
NEEDLE,JET(N1QA)
16
VALVE PISTON
17
VALVE,STARTER
18
CAP
19
CAP
20
SPRING
21
JET,SLOW(35)
22
VALVE ASSY,NEEDLE
23
CLIP
24
FLOAT ASSY
25
PIN,FLOAT
26
JET,NEEDLE
27
HOLDER,NEEDLE JET
28
JET,MAIN(92)
29
O RING
30
WASHER
31
SPRING
33
O RING
34
SCREW
35
PLUG,DRAIN
36
CAP
37
HOSE(5X9X600)
38
CLIP
39
SCREW
