OIL PAN
GSF600S BANDIT 2001 (K1) USA (E03)

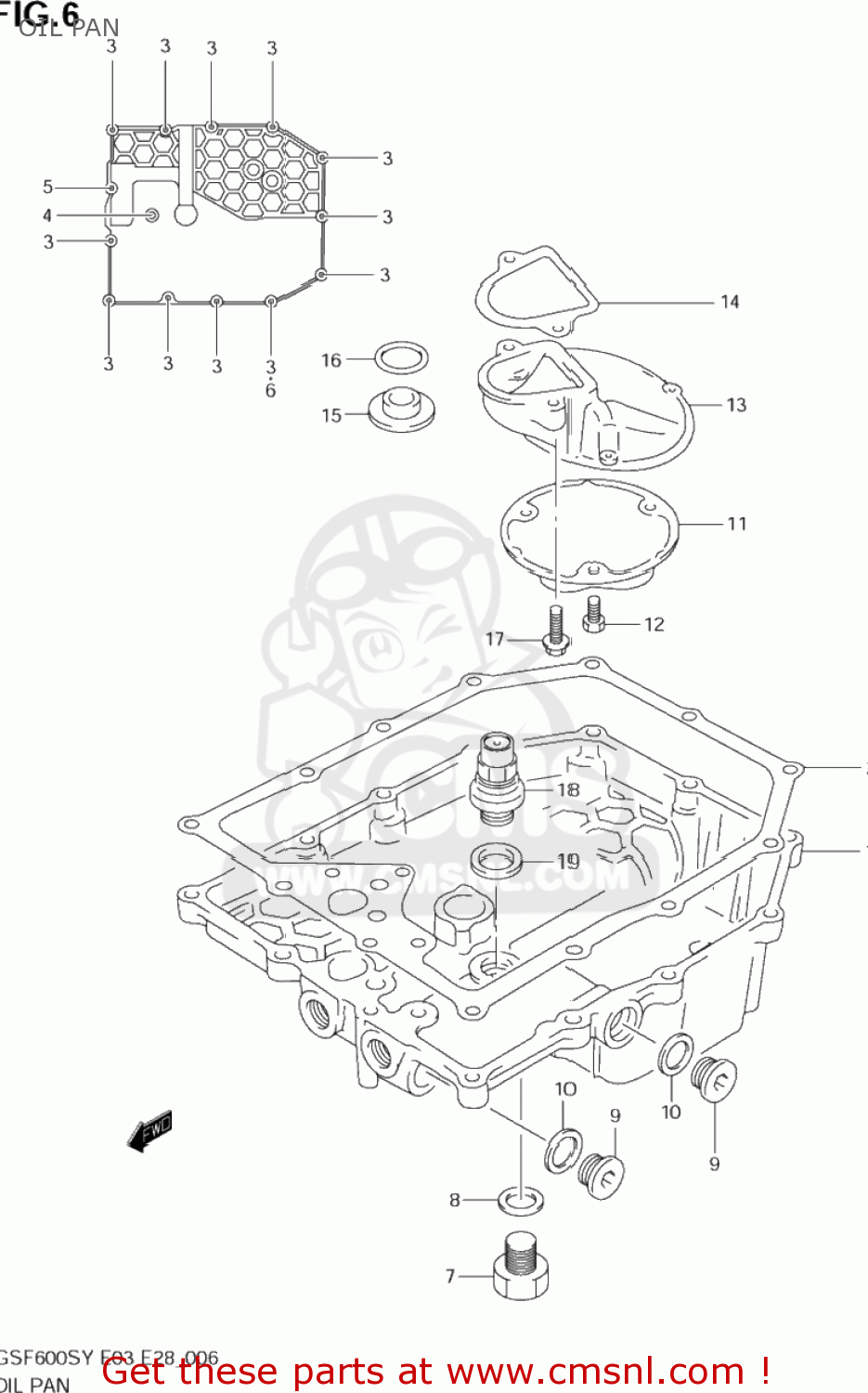

Oil pan diagram GSF600S BANDIT 2001 (K1) USA (E03)
OIL PAN GSF600S BANDIT 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1151126E00
ref: 1-1
11511-26E01
PAN,OIL
€ 260.50
1-2
1151126E01
ref: 1-2
PAN,OIL
€ 260.50
2
1148927A21
ref: 2
GASKET,OIL PAN(ASB) (NAS)
€ 23.00
3
0155006253
ref: 3
01550-0625A
BOLT
€ 2.50
4
0155006303
ref: 4
01550-0630A
BOLT
€ 2.50
5
0155006503
ref: 5
01550-0650A
BOLT
€ 2.00
6
0916806023
ref: 6
GASKET(5.8X13X1.2) (NAS)
€ 2.00
7-1
0924714001
ref: 7-1
09247-14002
PLUG
€ 5.00
7-2
0924714002
ref: 7-2
PLUG(MAGNETO)
€ 5.00
7-3
0924714026
ref: 7-3
PLUG(14X12)
€ 3.50
8
0916814002
ref: 8
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
9
0924816012
ref: 9
PLUG,16X8
€ 4.50
10
0916816002
ref: 10
GASKET(16X22X2) (NAS)
€ 2.00
11
1652009301
ref: 11
STRAINER,ENGINE OIL
€ 14.00
12
0157006123
ref: 12
01570-0612A
BOLT
€ 1.50
13
1652506B00
ref: 13
PROTECTOR,OIL STRAINER
€ 33.50
14
1652827A20
ref: 14
16528-27A21
GASKET,OIL STRAINER PROTECTOR (NAS)
€ 9.00
15
1652927A01
ref: 15
GASKET,OIL OUTLET (NAS)
€ 2.00
16
0928018009
ref: 16
O RING(D:3.2,ID:17.8)
€ 8.00
17
0155006253
ref: 17
01550-0625A
BOLT
€ 2.50
18
1644017C01
ref: 18
16440-17C10
VALVE ASSEMBLY,OIL RELIEF
€ 68.50
19
0916816002
ref: 19
GASKET(16X22X2) (NAS)
€ 2.00
