FRONT FORK BRACKET

GSF600S BANDIT 2001 (K1) USA (E03)

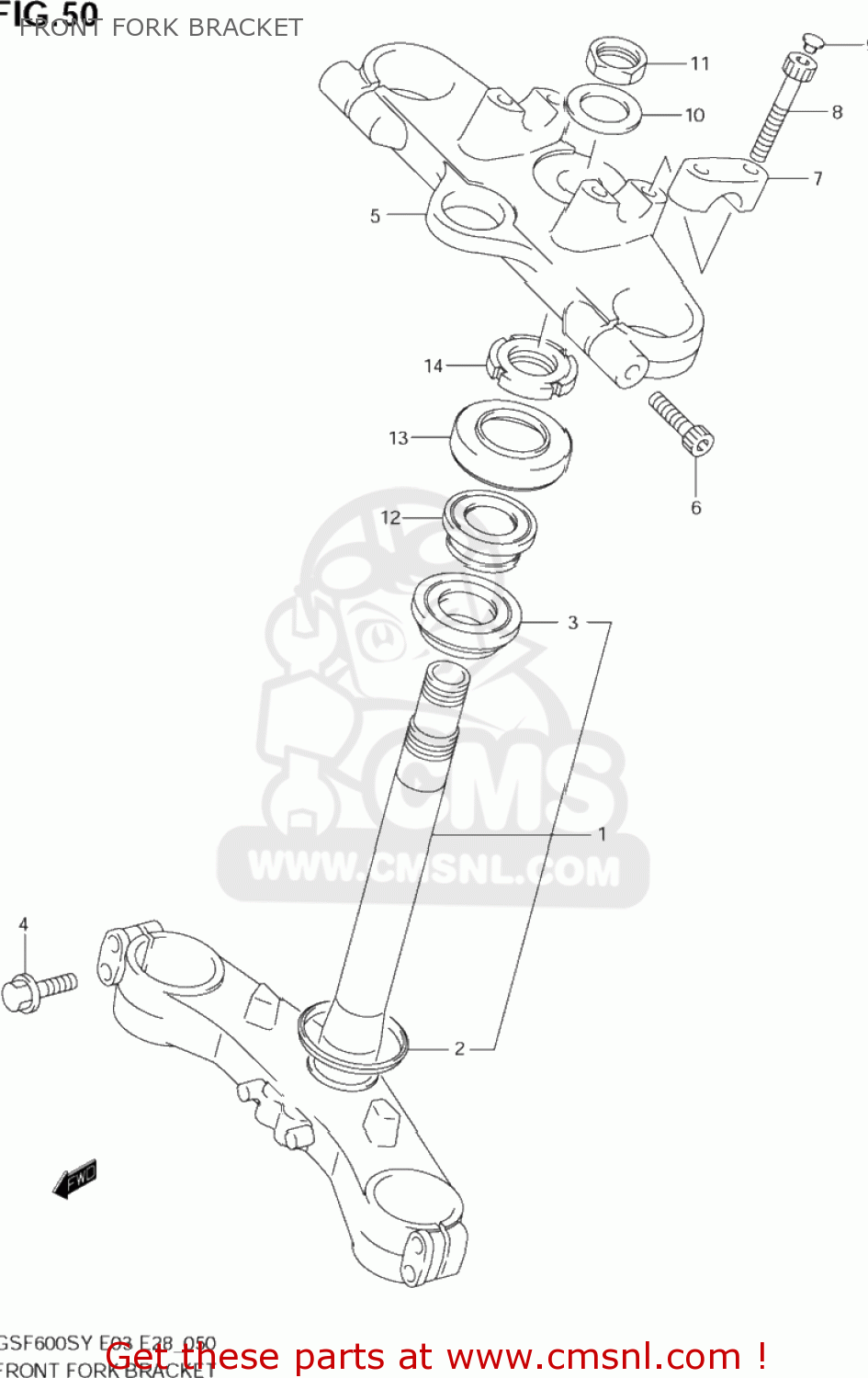

Front fork bracket diagram GSF600S BANDIT 2001 (K1) USA (E03)

FRONT FORK BRACKET GSF600S BANDIT 2001 (K1) USA (E03)

FRONT FORK BRACKET GSF600S BANDIT 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5141031F00
ref: 1-1

BRACKET,FR FORK UNDER

€ 476.00

1-2

5141031F10
ref: 1-2

BRACKET,UNDER

€ 476.00

2

5164412C00
ref: 2

SEAL,STEERING LWR

€ 5.50

3-1

0926730010
ref: 3-1

BEARING(30X55X17)

€ 46.50

3-1

0926730010
ref: 3-1

BEARING(30X55X17)

€ 46.50

3-2

0926530020
ref: 3-2

BEARING(30X55X17)

€ 45.50

3-2

0926530020
ref: 3-2

BEARING(30X55X17)

€ 45.50

4

0155008407
ref: 4

BOLT

€ 3.50

5

5131131F10
ref: 5

BRACKET,FR FORK UPR

€ 289.00

6

0713008357
ref: 6

BOLT

€ 4.50

7

5621131F00
ref: 7
56211-31F00-0FP

HOLDER,HANDLE

€ 21.00

8

0713008307
ref: 8

BOLT

€ 4.50

9

0925006011
ref: 9

CAP(OD:11)

€ 2.50

10

5135610D03
ref: 10

WASHER(22.5X35.9X1.6)

€ 3.00

11

5135324B00
ref: 11

NUT,CAP

€ 21.50

12

0926725009
ref: 12

BEARING(25X47X15)

€ 40.00

13

5164340502
ref: 13

DUST SEAL,STEERING UPR

€ 8.00

14

5163131F00
ref: 14

NUT,STEERING STEM

€ 8.00
