MANUAL BOX

GSF600S BANDIT 2001 (K1) USA (E03)

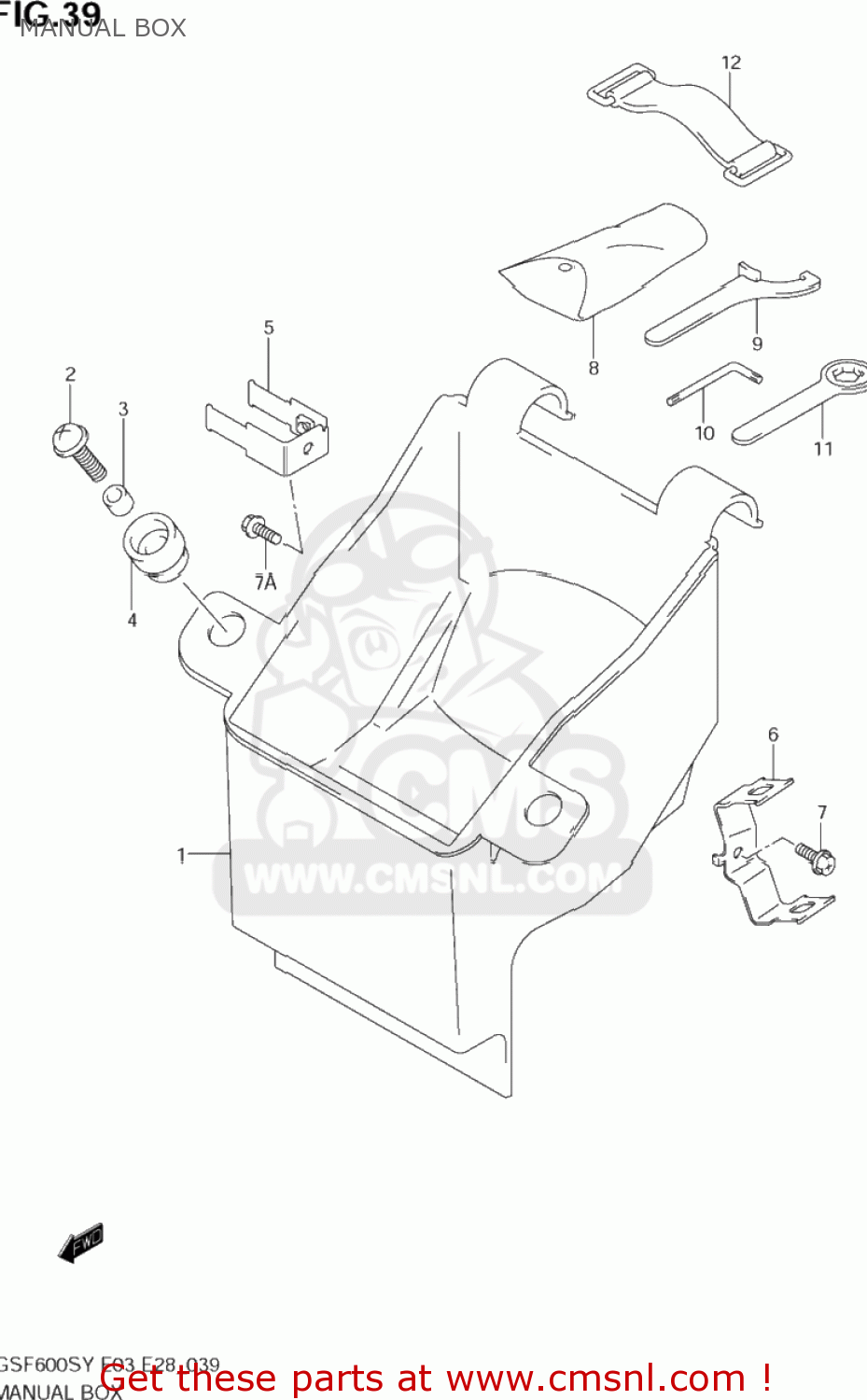

Manual box diagram GSF600S BANDIT 2001 (K1) USA (E03)

MANUAL BOX GSF600S BANDIT 2001 (K1) USA (E03)

MANUAL BOX GSF600S BANDIT 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4743131F00
ref: 1

BOX,MANUAL

€ 31.00

2

0913606105
ref: 2

SCREW(6X20)

€ 2.00

3

0918006284
ref: 3

SPACER(6.5X10X8)

€ 3.50

4

0932010045
ref: 4

CUSHION

€ 3.50

5

4741031F00
ref: 5

PLATE,RLY FITING

€ 6.00

6-1

4741231F00
ref: 6-1

PLATE,IGNITOR FITING

€ 6.00

6-2

4741231F10
ref: 6-2

PLATE,IGNITOR FITING

€ 7.00

7

0216206123
ref: 7
02162-0612A

BOLT

€ 1.50

7A

0155006123
ref: 7A
01550-0612A

BOLT

€ 2.50

8

0980021040
ref: 8

TOOL ASSY

€ 38.00

9

0982200005
ref: 9

CLAMP

€ 22.00

10-1

0981600103
ref: 10-1

SPANNER,HEXAGON(4)

€ 3.00

10-2

0981600059
ref: 10-2

HEXAGON SPANNER,5

€ 5.50

11

0981700035
ref: 11

RING SPANNER(22)

€ 6.50

12

0946200034
ref: 12

BAND

€ 4.50
