COWLING INSTALLATION PARTS

GSF600S BANDIT 2001 (K1) USA (E03)

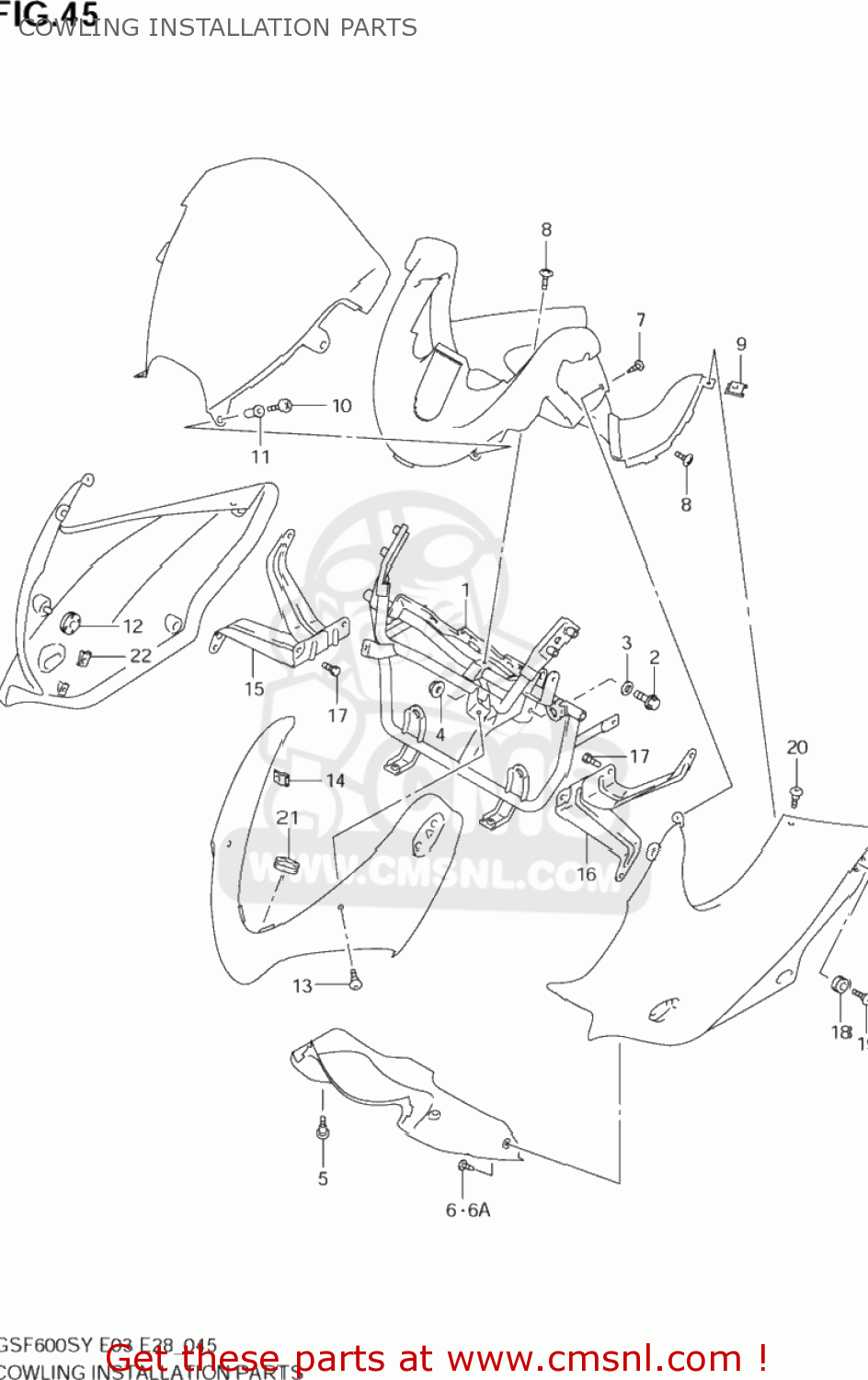

Cowling installation parts diagram GSF600S BANDIT 2001 (K1) USA (E03)

COWLING INSTALLATION PARTS GSF600S BANDIT 2001 (K1) USA (E03)
COWLING INSTALLATION PARTS GSF600S BANDIT 2001 (K1) USA (E03)
COWLING INSTALLATION PARTS GSF600S BANDIT 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
9451031F00
ref: 1
94510-31F10
BRACE COMP,COWLING
9451031F00
€ 344.50
2
0910308107
ref: 2
BOLT(8X33)
0910308107
€ 2.50
3
0916408020
ref: 3
WASHER
0916408020
€ 2.50
4
0831320083
ref: 4
08313-2008A
NUT
€ 2.50
5
0913905054
ref: 5
SCREW(5X16)
0913905054
€ 6.00
6
0324115123
ref: 6
03241-1512B
SCREW
0324115123
€ 2.50
6A
09409063145PK
ref: 6A
CLIP(BLACK)
09409063145PK
€ 3.50
7
0324205163
ref: 7
03241-0516A
SCREW
0324205163
€ 1.50
8
0214205123
ref: 8
02142-0512A
SCREW 5X12
0214205123
€ 1.50
9
9448424F00
ref: 9
NUT,COWL
9448424F00
€ 4.00
10
0214215163
ref: 10
02142-1516A
SCREW
€ 3.00
11
0915905019
ref: 11
NUT
0915905019
€ 5.50
12
0932008028
ref: 12
CUSHION
0932008028
€ 2.50
13
0913905055
ref: 13
SCREW(5X16)
0913905055
€ 6.00
14
0914805038
ref: 14
NUT
0914805038
€ 2.50
15
9454031F00
ref: 15
94540-31F01
BRACKET COMP,SIDE COWLING
9454031F00
€ 31.50
16
9455031F00
ref: 16
94550-31F01
BRACKET COMP,SIDE COWLING
9455031F00
€ 29.50
17
0150006103
ref: 17
01500-0610B
BOLT
€ 2.00
18
0932009016
ref: 18
CUSHION
0932009016
€ 2.50
19
0913906087
ref: 19
09139-06126
SCREW(6X20)
0913906087
€ 4.00
20
0913905054
ref: 20
SCREW(5X16)
0913905054
€ 6.00
21
0932008028
ref: 21
CUSHION
0932008028
€ 2.50
22
0914805038
ref: 22
NUT
0914805038
€ 2.50
